Запчасти Case IH 450-SERIES (274) - CHASSIS, REAR FRAME (12) - CHASSIS

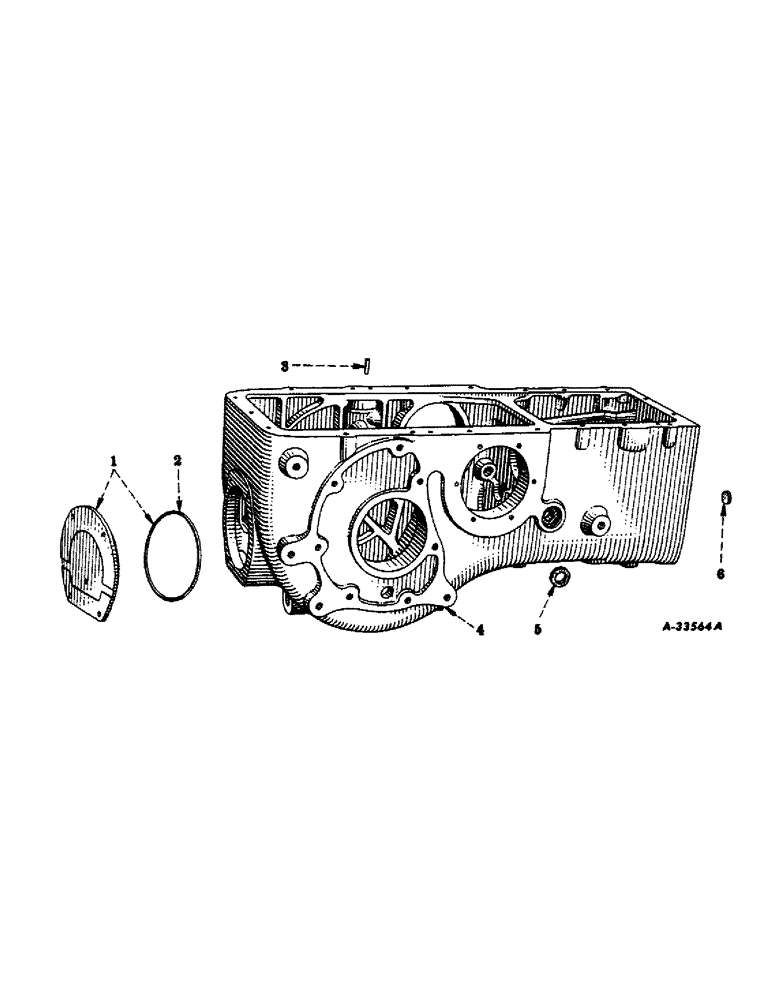

Схема запчастей Case IH 450-SERIES - (274) - CHASSIS, REAR FRAME (12) - CHASSIS
6
3
2
4
1
5

Артикул

Название

Примечание

Количество

1

358841R11

COVER, power take-off opening, w/ring, 358842R1

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

358842R1

RING

seal, power take-off opening cover

1шт.

3

49055D

DOWEL, rear frame cover

3шт.

4

358840R13

FRAME, rear, assembly, composed of (3) dowel 49055D, (1) frame 358840R1 (NSS), (2) oil seal 364471R91, (1) plug 103879, (1) plug 103868, (1) plug 103870, (1) plug 41047D, (1) plug 45361D

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8"

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. Sq Hd, 1/2"-14 NPTF

1шт.

103870

PLUG, pipe, sq-hd., C.I., 1"

1шт.

4

368846R91

FRAME, rear, 358840R13, w/eight bolts, 368795R1 (will work for 359520R92) (for tractors with cotton picket mounting or cotton picker tractor attachment)

1шт.

5

364471R91

SEAL

OIL SEAL, brake pedal shaft (will work for 360076R91)

2шт.

6

45361D

PLUG

cup, vent hole (not used on tractors equipped with independent power take-off torque amplifier attachment)

1шт.

41047D

PLUG, cup, reverse idler shaft (illustrated with transmission)

1шт.

368795R1

BOLT, rear axle carrier (for tractors equipped with cotton picker mounting or cotton picker tractor attachment)

8шт.

Выбрано товаров: 14
