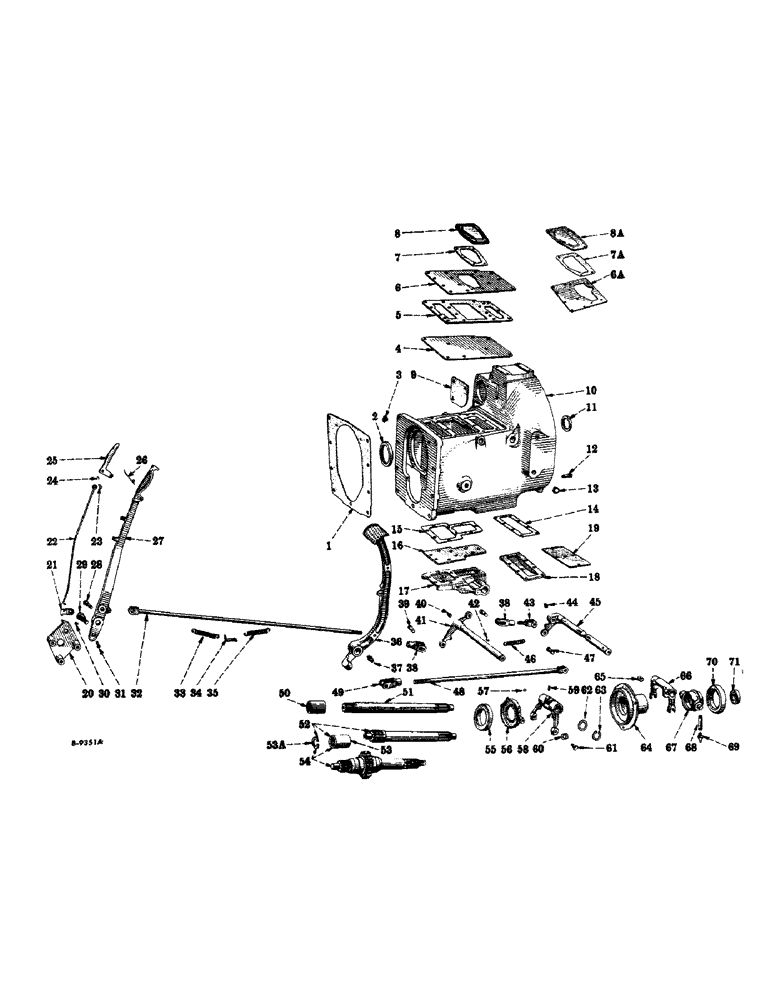

Запчасти Case IH 450-SERIES (267) - CHASSIS, CLUTCH CONNECTIONS AND TORQUE AMPLIFIER OPERATING (12) - CHASSIS

1

359127R1

GASKET

clutch housing (see note A)

1шт.

2

361248R92

OIL SEAL

OIL SEAL, transmission drive shaft front bearing retainer or planet carrier front bearing (see note A)

1шт.

3

359011R1

PLUG

cup (for sealing torque amplifier clutch release shaft openings)

2шт.

4

359009R1

COVER, clutch housing top (not used on tractors equipped with independent power take-off drive or torque amplifier)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

22828D

SPACER, tool box stud (illustrated with tool box)

4шт.

362609R1

STUD, tool box mounting (illustrated with tool box)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

1шт.

5

361280R3

GASKET

clutch housing top cover (see note A)

1шт.

6

361268R1

COVER, clutch housing top (see note A) (not used on tractors equipped with electrall)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

11шт.

362609R1

STUD, tool box mounting (illustrated with tool box)

4шт.

6a

362807R1

COVER, clutch housing top (for tractors equipped with electrall)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

7

361258R1

GASKET

clutch housing top cover cap (see note A) (not used on tractors equipped with electrall)

1шт.

7a

362809R1

GASKET, clutch hosing top cover cap (for tractors equipped with electrall)

1шт.

8

361188R1

CAP, clutch hosing top cover (see note A) (not used on tractors equipped with electrall)

1шт.

181353

SCREW, cap, hex-hd., 3/8-24NF x 7/16"

4шт.

8a

362808R1

CAP, clutch housing top cover (for tractors equipped with electrall)

1шт.

181353

SCREW, cap, hex-hd., 3/8-24NF x 7/16"

4шт.

9

359716R1

COVER, cranking motor opening (for tractors not equipped with starting and lighting)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

359877R95

HOUSING, clutch, assembly (see note C) composed of (1) bearing 359960R91, (1) housing 359026R3 (NSS), (1) oil seal 361248R92, (1) oil seal 359126R94, (6) plug 364683R1, (1) plug 103868, (1) plug 187056, (2) plug 359011R1

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. Sq Hd, 1/2"-14 NPTF

1шт.

187056

PLUG, pipe, sq-hd., C.I. 2"

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2-1/4"

9шт.

16094R1

STUD,Hex, 1/2"-13 x 7 1/2", G5

SCREW, cap, hex-hd., 1/2-13NC x 7-1/2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

1шт.

11

359126R94

SEAL

OIL SEAL, power take-off drive gear (see note A)

1шт.

12

45979D

STUD

DOWEL, engine rear support

2шт.

13

364683R1

PLUG, clutch housing dust seal (will work 64881D)

6шт.

14

359129R2

GASKET

power take-off driven gear cover (see note A)

1шт.

15

359149R2

GASKET

seasonal disconnect or bottom cover (see note A)

1шт.

16

359012R1

COVER, bottom, clutch housing, rear (for tractors w/o independent power take-off drive or torque amplifier with independent power take-off drive) Farmall 400 Series, 501 to 31182, (for all models) Farmall 400 Series, 31183 up, Farmall 450 Series, 501 up

1шт.

366464R91

SCREW, cap, indented hex-hd., 3/8-16NC x 3/4", w/internal-tooth lockwasher

9шт.

16

359148R1

COVER, seasonal disconnect (illustrated with independent power take-off drive) (for tractors equipped with independent power take-off drive or torque amplifier with independent power take-off drive and seasonal disconnect) (for all models)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

9шт.

17

361527R92

PACKAGE, service, clutch housing rear cover, w/implement bracket (for implement attachments) consists of (1) bracket 359460R1, (1) gasket 359149R2, (1) nut 219754, (1) plug 359461R1, (1) ring 253070R1, (9) screw 179838, (1) washer 138510

1шт.

17

359460R1

COVER, clutch housing, rear, w/seasonal disconnect hole and implement bracket (for implement attachments)

1шт.

219754

BACK-UP RING

jam, hex., 7/8-14NF

1шт.

359461R1

PLUG, implement and seasonal disconnect cover bracket (used to plug seasonal disconnect hole in cover, 359460R1)

1шт.

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

RING, seal, implement and seasonal disconnect cover bracket plug (used with 359461R1, plug) (will work for 352024R2)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

9шт.

138510

LOCK WASHER,Ext Tooth, 7/8"

WASHER, lock, external-tooth, 7/8"

1шт.

18

359010R1

COVER, power take-off drive compartment (for tractors not equipped with independent power take-off drive or torque amplifier)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

8шт.

18

359128R11

COVER, power take-off driven gear, w/plug, 143162 (see note A)

1шт.

143162

PLUG

pipe, sq-socket, 3/8"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

8шт.

19

359013R1

COVER, bottom, clutch compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

359916R2

RATCHET, torque amplifier operating handle (see note B)

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

21

359925R3

PAWL

torque amplifier operating handle (see note B)

1шт.

22

359923R11

ROD, torque amplifier operating handle activating pawl (see note B)

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

1шт.

95-11028

WASHER,1/4"

plain, 9/32 I.D x 5/8" O.D. x no. 16 ga.

1шт.

23

359922R1

PIN

torque amplifier operating handle pawl grip (see note B)

2шт.

24

149505

SPRING, retainer, torque amplifier operating handle pawl grip (see note B)

2шт.

25

359921R1

GRIP, torque amplifier operating handle pawl control (see note B)

1шт.

26

359920R2

SPRING

torque amplifier operating handle pawl control grip (see note B)

1шт.

27

359917R11

HANDLE, torque amplifier operating, assembly (see note B) composed of (1) handle 359917R1 (NSS), (1) pin 141283, (1) pin 359918R1

1шт.

28

359918R1

PIN, torque amplifier clutch control rod (see note B)

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

29

359919R2

BOLT, torque amplifier operating handle pivot (see note B)

1шт.

103029

NUT,9/16"-18, G5

hex., 9/16-18NF

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

13611VA

WASHER

plain, 25/32" I.D. x 1-3/8" O.D. x no. 11 ga.

1шт.

30

273354

SHEAVE

FITTING, lubrication, straight, drive type, 3/16" (torque amplifier operating handle) (optional with 443566) (see note B)

1шт.

30

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (torque amplifier operating handle) (optional with 273354) (see note B)

1шт.

31

141283

SUPPORT,1/2" x 1"

PIN, dowel, 1/2 x 1" (torque amplifier operating handle stop pin) (see note B)

1шт.

32

359926R11

ROD, torque amplifier clutch control (see note B)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

33

357164R1

SPRING

return, torque amplifier operating handle (see note B)

1шт.

34

359025R1

ANCHOR, return spring

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

357164R1

SPRING

clutch pedal return

1шт.

36

363358R2

PEDAL, clutch (not illustrated) (Farmall 400 Series tractors)

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

Farmall 400 Series tractors Jam, 1/2"-13, G5

1шт.

114540

PULLEY

SCREW, set, sq-hd., 1/2-13NC x 2-1/4" (Farmall 400 Series tractors)

1шт.

36

366331R1

PEDAL, clutch (Farmall 450 Series tractors)

1шт.

37

66584D

FITTING

lubrication, straight, drive type, 3/16"

1шт.

38

359928R1

YOKE, torque amplifier clutch operating (see note B)

2шт.

39

359929R1

PIN

torque amplifier release lever (see note B)

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

11002VA

WASHER

plain, 17/32" I.D. x 7/8" O.D. x no. 16 ga.

4шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Torque amplifier clutch release shaft) (optional with 119512) (see note B) 1/8"-27 x .66 lg

2шт.

40

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (torque amplifier clutch release shaft) (optional with 109461) (see note B)

2шт.

41

359905R11

SHAFT, torque amplifier clutch release, w/lever (see note B) (Farmall 400 Series tractors)

1шт.

41

366353R91

SHAFT, torque amplifier clutch release, w/lever (see note B) (Farmall 450 Series tractors)

1шт.

42

NLS

NO LONGER SERVICED

KEY, woodruff, 5/32 x 3/4" (torque amplifier clutch release shaft) (see note B)

2шт.

43

359930R1

CLEVIS

engine clutch to troque amplifier clutch control (see note B)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

114787

AXLE PIN

PIN, rod end, 1/2 x 1-27/64"

1шт.

44

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Clutch release shaft) (optional with 119512) 1/8"-27 x .66 lg

2шт.

44

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (clutch release shaft) (optional with 109461)

2шт.

45

359019R11

SHAFT, clutch release, w/lever

1шт.

46

61084D

SPRING

torque amplifier clutch release shaft lever

1шт.

47

352131R1

PIN

clutch operating rod yoke

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

48

359024R11

ROD, clutch operating, w/yoke (Farmall 400 Series tractors)

1шт.

48

366333R11

ROD, clutch operating, w/yoke (Farmall 450 Series tractors)

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

49

6692D

YOKE, clutch operating rod adjustable (optional with 350151R1)

1шт.

49

350151R1

YOKE, clutch operating rod adjustable (optional with 6692D)

1шт.

4226S

PIN

std-hd., drilled, 1/2 x 1-15/16"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

50

358878R1

SLEEVE

COUPLING, transmission driving shaft (for tractors not equipped with torque amplifier)

1шт.

51

358877R1

SHAFT

clutch (for tractors not equipped with torque amplifier)

1шт.

52

359974R12

SHAFT

clutch, w/sleeve, 364432R91 (for tractors equipped with torque amplifier with independent power take-off drive)

1шт.

53

364432R91

SLEEVE CYLINDER

SLEEVE, clutch shaft, w/ring, 364411R1 (will work for 362568R1) (see note B)

1шт.

53a

364411R1

SPRING

RING, snap, clutch shaft sleeve (used only in sleeves with internal groove for snap ring) (see note B)

1шт.

54

360466R12

SHAFT, transmission and power take-off drive gear (20 teeth) w/sleeve, 364432R91 (for tractors equipped with torque amplifier with transmission driven power take-off drive)

1шт.

55

362028R91

BALL BEARING

BEARING, torque amplifier clutch release (optional with 368956R91) (see note B)

1шт.

55

368956R91

BEARING

torque amplifier clutch release (optional with 362028R91) (see note B)

1шт.

56

359900R1

RING

SLEEVE, torque amplifier clutch release (see note B)

1шт.

57

359901R1

SPRING

torque amplifier clutch release sleeve (see note B)

2шт.

58

359902R3

FORK

torque amplifier clutch release (see note B)

1шт.

59

359906R1

SCREW

lock, torque amplifier clutch release fork (1-1/8" long) (not used on tractors equipped with electrall) Farmall 400 Series, Serial Range: 501-6610

1шт.

59

363868R1

SCREW, lock, torque amplifier clutch release fork (1" long) (for tractors equipped with electrall) Farmall 400 Series, Serial Range: 501-6610

1шт.

59

362829R1

SCREW, lock, torque amplifier clutch release for (3/4" long) Farmall 400 Series, 611 up, Farmall 450 Series, 501 up

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

60

359903R1

LOCK, pivot, torque amplifier clutch release sleeve (see note B)

2шт.

61

359904R1

PIVOT

torque amplifier clutch release sleeve (see note B)

2шт.

62

359908R1

THRUST WASHER

torque amplifier clutch release shaft (see note B)

2шт.

63

359909R1

RING

RETAINER, torque amplifier clutch release shaft (see note B)

2шт.

64

359021R1

CARRIER, clutch release sleeve (optional with 359441R1) (not used on tractors equipped with independent power take-off drive or torque amplifer)

1шт.

64

359441R1

CARRIER, clutch release sleeve (optional with 359021R1) (not used on tractors equipped with independent power take-off drive or torque amplifier)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

65

18465D

WASHER

KEY, clutch release fork

2шт.

66

5800DB

FORK

clutch release

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

67

359022R2

PIVOT

SLEEVE, clutch release

1шт.

68

365720R1

PIPE

grease, clutch release bearing (used only with sleeve, 359022R2, has threaded hole)

1шт.

69

109368

FITTING, lubrication, straight, 5/16-32NF (used with pipe, 365720R1) (optional with Q3618)

1шт.

69

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, lubrication, straight, 5/16-32NF (used with pipe, 365720R1) (optional with 109368)

1шт.

70

365867R91

BALL BEARING

BEARING, ball, clutch release (will work for 361407R91 and 362027R91) (optional with 365868R91 and 367153R91)

1шт.

70

365868R91

BEARING

ball, clutch release (will work for 361407R91 and 362027R91) (optional with 365867R91 and 367153R91)

1шт.

70

367153R91

BEARING

ball, clutch release (will work for 361407R91 and 362027R91) (optional with 365868R91)

1шт.

71

ST544

BEARING, BALL,25mm ID x 52mm OD x 15mm W

BEARING, clutch pilot

1шт.
