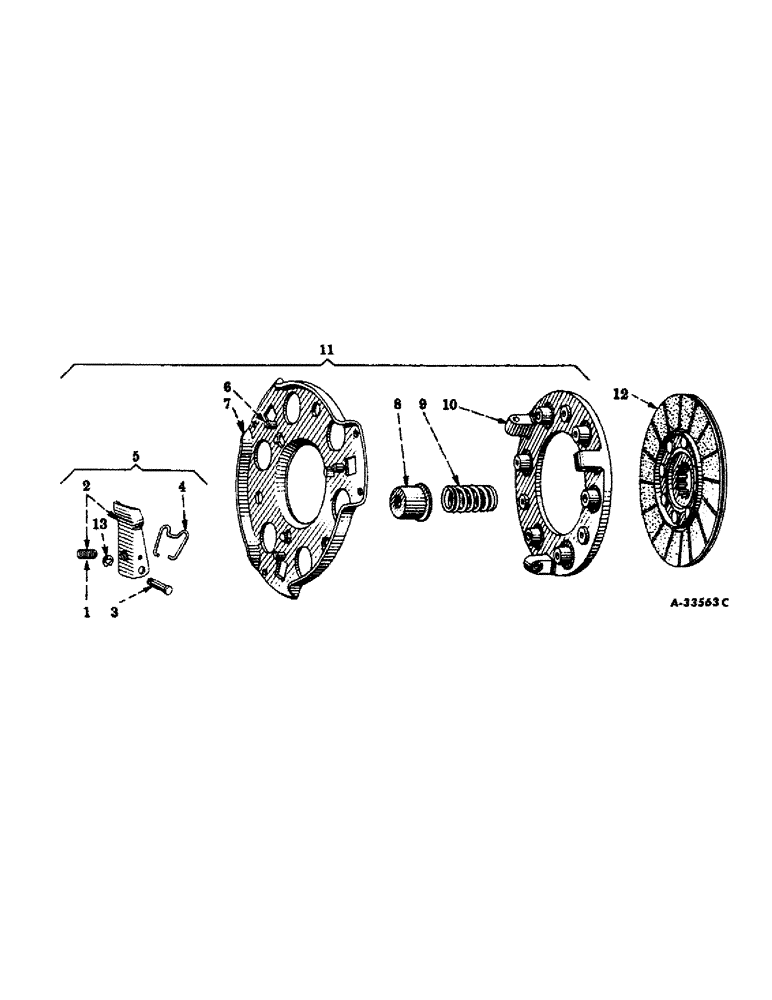

Запчасти Case IH 450-SERIES (262) - CHASSIS, CLUTCH, 7 INCH, FOR TRACTORS EQUIPPED WITH TORQUE AMPLIFIER (12) - CHASSIS

1

359935R1

ADJUSTMENT SCREW

adjusting, lever

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

2

359936R11

LEVER

release, w/nut, 114493, and screw, 359935R1

3шт.

3

359938R1

PIN

release, lever (has drilled end) (order package, 369116R91)

3шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

3шт.

3

369106R1

PIN

release lever

3шт.

4

359937R2

SPRING

lever

3шт.

5

359948R93

KIT

PACKAGE, lever, assembly, consists of (3) lever 359936R11, (3) pin 369106R1, (3) ring 369107R1, (3) spring 359937R2

1шт.

6

359933R1

SEAT, lever adjusting screw

3шт.

7

359932R91

PLATE, back, w/three seats, 359933R1

1шт.

8

359934R1

CUP, pressure plate spring

6шт.

9

359939R2

SPRING

pressure plate

6шт.

9

360237R92

PACKAGE

pressure plate spring (consists of six springs, 359939R2)

1шт.

10

359946R1

PLATE, pressure, Farmall 400 Series, Serial Range: 501-5035

1шт.

10

362197R1

PLATE ASSY.

PLATE, pressure, Farmall 400 Series, 5036 up, Farmall 450 Series, 501 up

1шт.

11

360215R93

PLATE

pressure, clutch, assembly, composed of (6) cup 359934R1, (1) package 359948R93, (1) package 360237R92, (1) plate 359932R91, (1) plate 362197R1

1шт.

12

367910R91

DISC

driven, clutch, w/bonded facings (will work for 359944R91)

1шт.

13

369107R1

SNAP RING,#21, Ext

Ring, Snap, , release lever pin #21, Ext

3шт.

28754D

RIVET, clutch facing (only for service on 359944R91) (not illustrated)

12шт.

359973R91

FACING SET, clutch (consists of two facings, w/twelve rivets, 28754D) (only for service on 359944R91) (not illustrated)

1шт.

369116R91

PACKAGE

release lever pin (consists of pin, 369106R1, and ring, 369107R1) (will work for 359938R1)

3шт.
