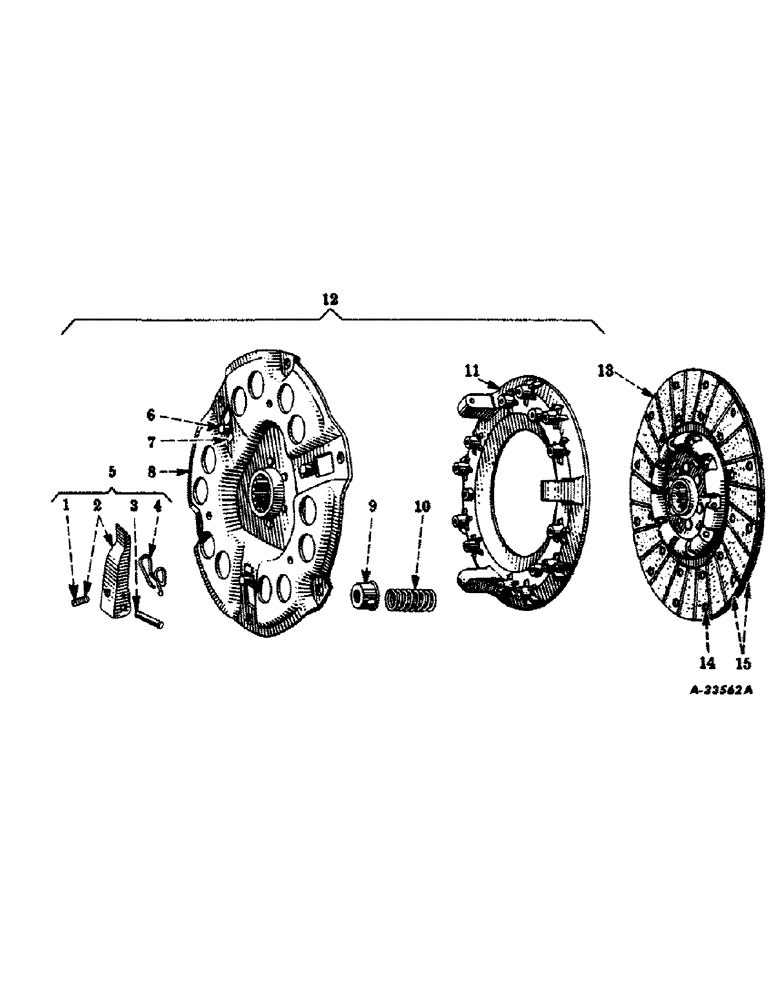

Запчасти Case IH 450-SERIES (260) - CHASSIS, CLUTCH, IH (12) - CHASSIS

1

358307R1

SPARE PART SCREW, adjusting, lever

3шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

NUT, , s-fin., stl. Jam, 7/16"-20, G5

3шт.

2

359015R11

SPARE PART LEVER, release, clutch, w/nut, 272121 and screw, 358307R1

3шт.

3

358298R1

PIN

PIN, lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, cotter, 3/32 x 1/2"

3шт.

4

358297R2

SPRING

SPRING, lever

3шт.

5

359041R92

ARM

PACKAGE, lever, assembly, consists of (3) lever, assembly 359015R11, (3) pin 358298R1, (3) pin 107762, (3) spring 358297R2

1шт.

6

358294R1

SPARE PART SEAT, lever adjusting screw

3шт.

7

358295R1

SPARE PART CLIP, lever spring

3шт.

8

359122R92

PLATE

PLATE, back, w/hub and three clips, 358295R1 and three seats, 358294R1

1шт.

9

358292R1

SPARE PART CUP, pressure, plate spring

12шт.

10

358291R1

SPRING

SPRING, clutch pressure (9-1/2" coils) (order 358290R92)

12шт.

10

363933R1

SPARE PART SPRING, clutch pressure (10-1/2" coils) (regular duty)

12шт.

10

358290R92

SPARE PART PACKAGE, clutch pressure spring (consists of twelve springs, 363933R1) (will work for 358291R1) (regular duty)

1шт.

10

367256R91

SPARE PART PACKAGE, clutch pressure spring (consists of twelve springs) (heavy duty)

1шт.

11

358289R1

SPARE PART PLATE, pressure

1шт.

12

359121R93

PLATE

PLATE, pressure, clutch assembly (optional with 360079R92) composed of (12) cup 358292R1, (1) lever, package 359041R92, (1) plate, assembly 359122R92, (1) plate 358289R1, (1) spring, package 358290R92

1шт.

12

359121R98R

REMAN-CLUTCH PLATE

Remanufactured CLUTCH PLATE, 12 in

1шт.

12

359121R98C

CORE-CLUTCH PLATE

Return Part Number

1шт.

12

384395R94R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 12 in., 11Tooth hub, 1 13/64 in. OD of splines, 4 paddle

1шт.

12

384395R94C

CORE-CLUTCH DISC

Return Part Number

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, cap, hex-hd., 1/2-12NC x 1-1/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

13

359016R93

DISC

DISC, driven, clutch, w/facing, 257819R21 (will work for 360117R93)

1шт.

14

37508D

RIVET,Csk, .146" x 3/8", Brass

RIVET, clutch facing, brs.

26шт.

15

257819R21

LINING

FACING SET, clutch (consists of two facings, w/twenty-six rivets, 37508D

1шт.
