Запчасти Case IH 450-SERIES (259) - CHASSIS, CLUTCH, ROCKFORD (12) - CHASSIS

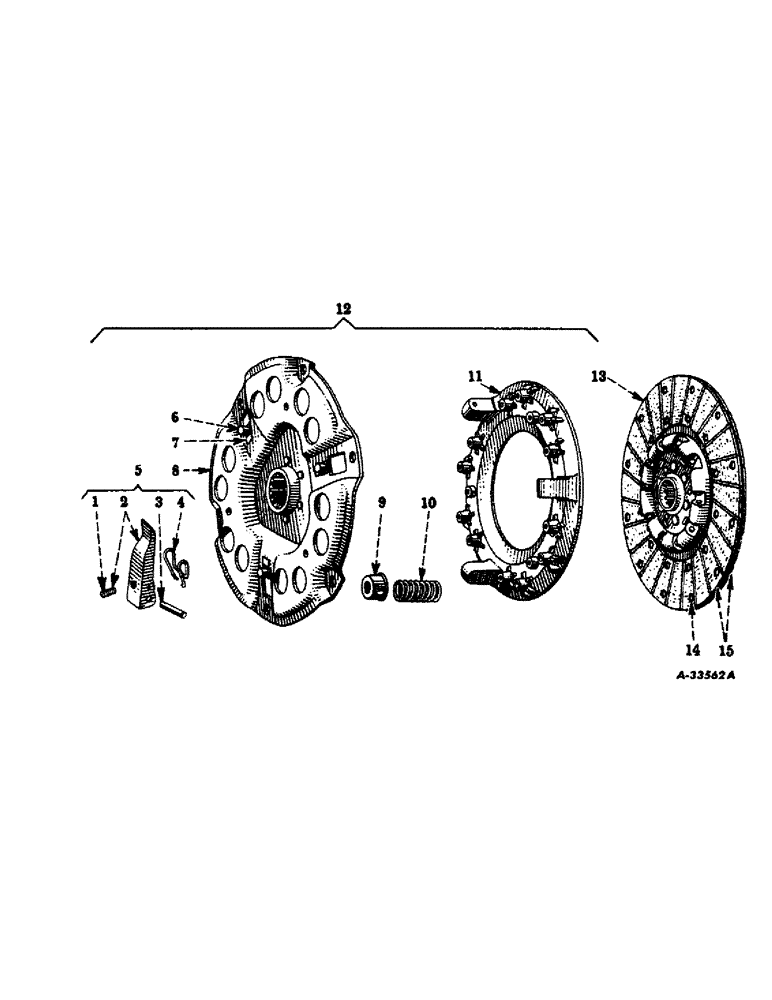

Схема запчастей Case IH 450-SERIES - (259) - CHASSIS, CLUTCH, ROCKFORD (12) - CHASSIS
6
7
10
5
13
2
1
8
3
14
4
9
12
11
15

Артикул

Название

Примечание

Количество

1

353319R1

SCREW, adjusting, lever

3шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

s-fin., stl. Jam, 7/16"-20, G5

3шт.

2

360082R91

LEVER

release, clutch, w/nut, 272121 and screw, 353319R1

3шт.

3

52846D

PIN

lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

4

368777R1

SPRING

lever (will work for 353318R1)

3шт.

5

360081R91

KIT

PACKAGE, lever, assembly, consists of (3) lever, assembly 360082R91, (3) pin 52846D, (3) pin 107762, (3) spring 368777R1

1шт.

6

353314R1

SEAT, lever adjusting screw

3шт.

7

353313R1

CLIP

lever spring

3шт.

8

360080R91

PLATE

back, w/hub, and three clips, 353313R1 and three seats, 353314R1

1шт.

9

353316R1

SPRING CUP

CUP, clutch pressure

12шт.

10

361128R1

SPRING

clutch pressure (9-1/2" coils) (order 364328R91)

12шт.

10

364329R1

SPRING, clutch pressure (10-1/2" coils)

12шт.

10

364328R91

PACKAGE, clutch pressure spring (consists of twelve spring, 364329R1) (will work for 361128R1)

1шт.

11

353315R1

LARGE PLATE

PLATE, pressure

1шт.

12

360079R92

PLATE, pressure, clutch, assembly (optional with 359121R93) composed of (12) cup 353316R1, (1) lever, package 360081R92, (1) plate, assembly 360080R91, (1) plate 353315R1, (12) spring 364329R1

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-1/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

13

359016R93

DISC

driven, clutch, w/facing, 257819R21 (will work for 360117R93)

1шт.

14

37508D

RIVET,Csk, .146" x 3/8", Brass

clutch facing, brs.

26шт.

15

257819R21

LINING

FACING SET, clutch (consists of two facings, w/twenty-six rivets, 37508D)

1шт.

Выбрано товаров: 21
