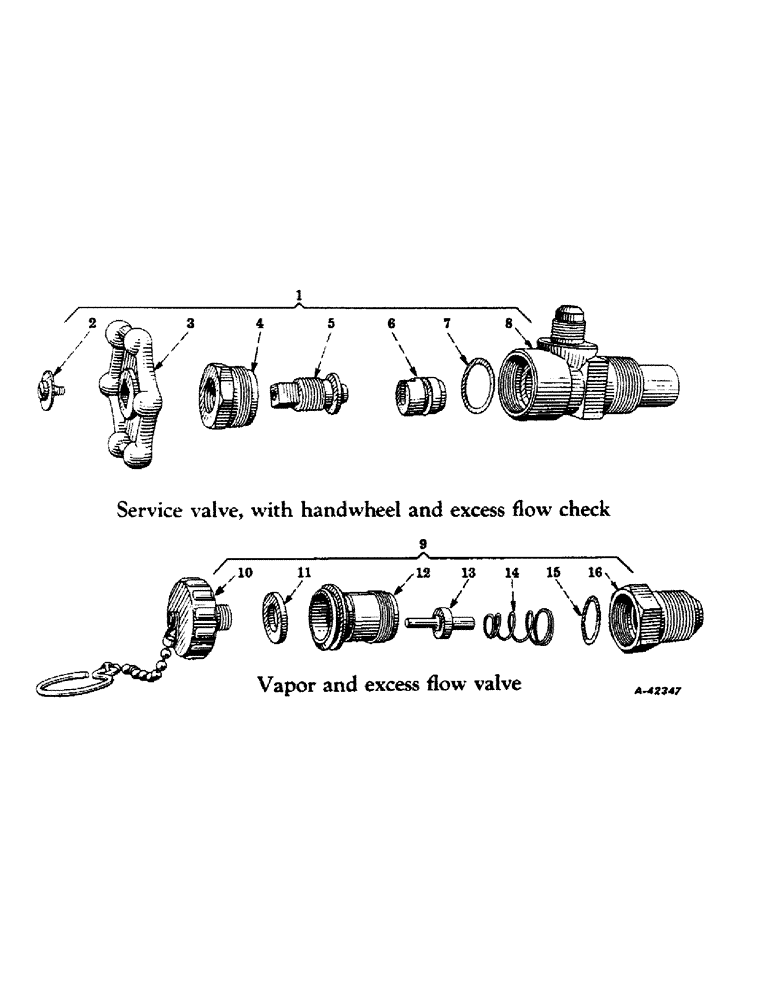

Запчасти Case IH 450-SERIES (258) - CHASSIS, VALVES, SELWYN PACIFIC CO., L. P. GAS, SERVICE VALVE W/HANDWHEEL & EXCESS FLOW CHECK (12) - CHASSIS

1

357069R91

VALVE, service, w/handwheel and excess flow check

1шт.

2

359831R91

FASTENER, "Sems"

1шт.

3

359832R1

HANDWHEEL

1шт.

4

359833R1

BONNET

1шт.

5

359834R1

STEM

1шт.

6

359835R91

SEAT DISC and RING

1шт.

7

359821R1

GASKET

1шт.

8

BODY, lower (not serviced separately) order 357069R91

1шт.

9

357064R92

VALVE, vapor and excess flow, vapor and excess for valve

1шт.

10

359814R91

CAP, valve, w/chain and ring, 3/4", vapor and excess for valve

1шт.

11

359815R1

WASHER, vapor and excess for valve

1шт.

12

359820R1

BODY, upper, vapor and excess for valve

1шт.

13

359822R91

POPPET, vapor and excess for valve

1шт.

14

359823R1

SPRING, vapor and excess for valve

1шт.

15

359821R1

GASKET, vapor and excess for valve

1шт.

16

BODY, lower (not serviced separately) order 357064R92, vapor and excess for valve

1шт.
