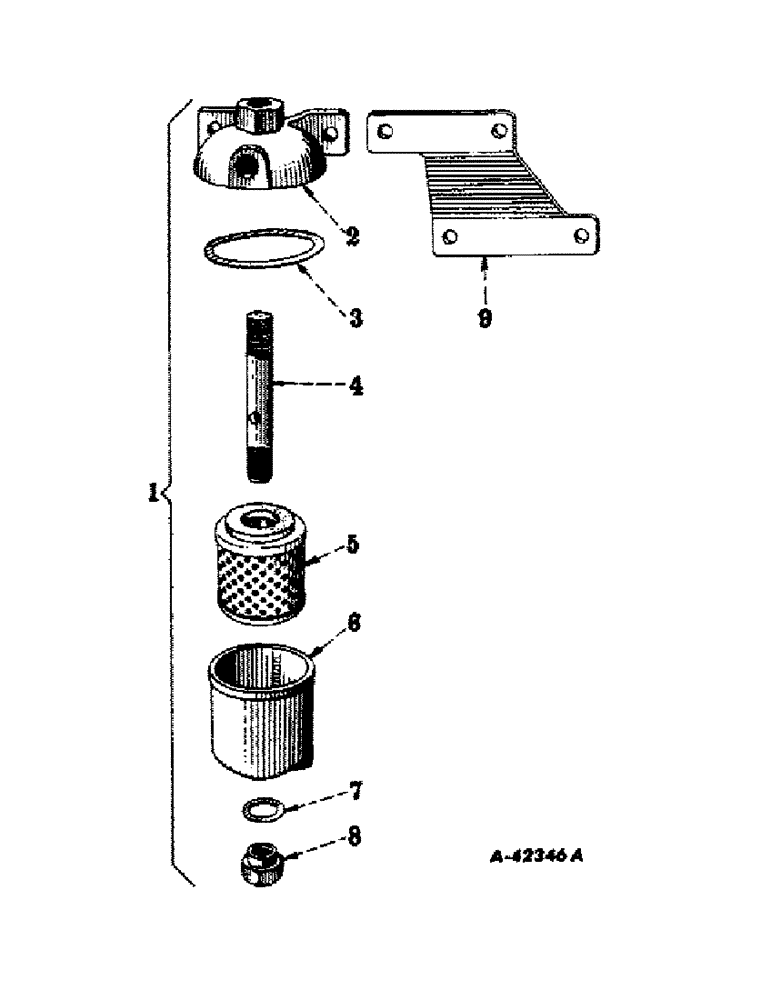

Запчасти Case IH 450-SERIES (257) - CHASSIS, FUEL FILTER, ENSIGN, LIQUEFIED PETROLEUM GAS (12) - CHASSIS

1

64147D

FILTER, fuel, assembly (consists of ref. nos. 2 thru 8) (will work for 357073R91)

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

64397D

TOP, filter

1шт.

3

64399D

ELEMENT

GASKET, filter top to filter bottom

1шт.

4

64402D

STUD, filter

1шт.

5

64400DB

ELEMENT

FILTER, w/gasket, 64399D and gasket, 64401D

1шт.

6

64398D

BOTTOM, filter

1шт.

444814

PLUG,Hex Hd, 1/8"-27, Brass

pipe, hex-hd., 1/8" (drain plug) (used with filter bottom having tapped hole)

1шт.

7

64401D

ELEMENT

GASKET, filter bowl

1шт.

8

64403D

NUT, filter stud

1шт.

9

363697R11

BRACKET, filter mounting

1шт.

102635

NUT,3/8"-16, G5

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-5/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
