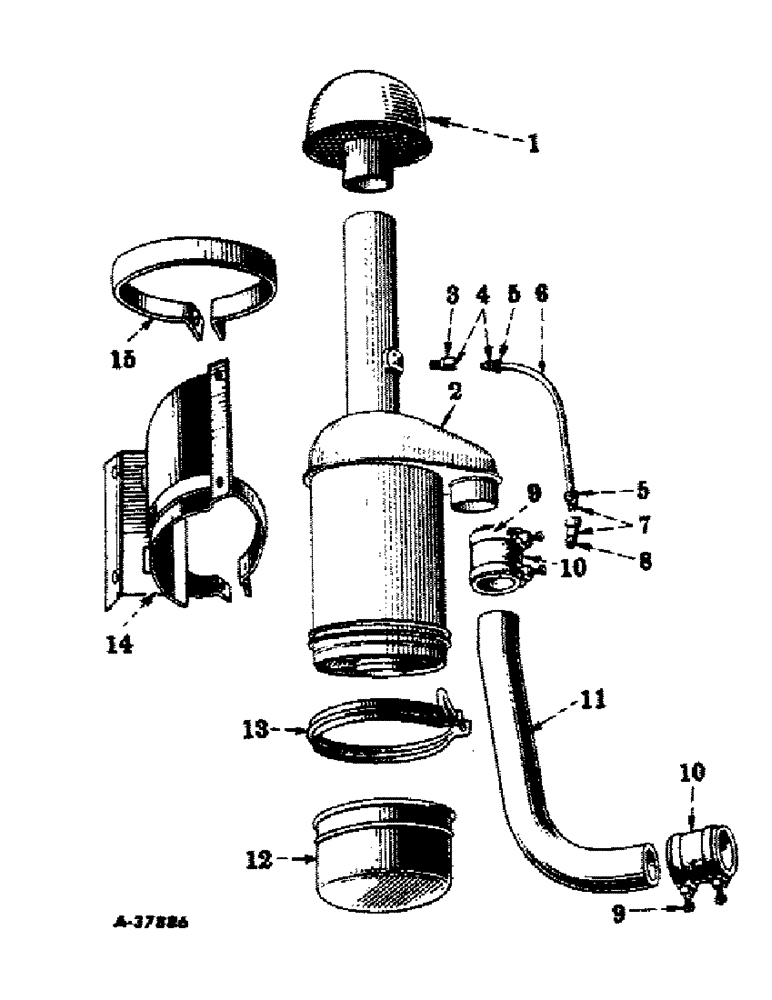

Запчасти Case IH 450-SERIES (238) - CHASSIS, AIR CLEANER & CONNECTIONS (12) - CHASSIS

361388R91

CLEANER, air, assembly, composed of (1) body 362140R91, (1) clamp 52868DA, (1) cup 363005R91 (A only)

1шт.

364364R91

CLEANER, air, assembly, composed of (1) body 364808R91, (1) clamp 52868DA (B only)

1шт.

363674R91

CLEANER, air, assembly, (1) cup 363005R91, composed of (1) body 364491R91, (1) clamp 52868DA, (1) cup 363005R91 (C only)

1шт.

1

353018R92

CYLINDER END CAP

CAP, air intake

1шт.

2

362140R91

BODY, air cleaner (A only)

1шт.

2

364808R91

BODY, air cleaner (B only)

1шт.

2

364491R91

BODY, air cleaner (C only)

1шт.

3

38026DM

HYD CONNECTOR,1/4" NPT x 9/16"-20

CONNECTOR, breather pipe

1шт.

4

38026DMX

CONNECTOR, ELEC

CONNECTOR, breather pipe, 38026DM, w/nut, 37165D

1шт.

5

222-504

TUBE NUT,9/16"-20

NUT, hi-duty fitting, brs., 3/8" OD tubing

2шт.

6

361394R11

PIPE, breather, w/two nuts, 37165D

1шт.

7

361718R11

ELBOW

breather pipe, 361718R1, w/nut, 37165D

1шт.

8

361718R1

ELBOW, breather pipe

1шт.

9

45813D

CLAMP

air cleaner pipe hose

4шт.

10

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe (A only) (B only) 2.25" ID x 2.25", SAE 20R1 Class R

2шт.

10

362763R1

HOSE, air cleaner pipe, upper, 2-1/4" I.D. x 3-5/8" long (for tractors equipped with 24" liquefied petroleum gas tank) (C only)

1шт.

10

363801R1

HOSE, air cleaner pipe, lower 2-1/4" I.D. x 2-3/4" long (for tractors equipped with 24" liquefied petroleum gas tank) (C only)

1шт.

10

363801R1

HOSE, air cleaner pipe, upper 2-1/4" I.D. x 2-3/4" long (for tractors equipped with 22" liquefied petroleum gas tank) (C only)

1шт.

10

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe (For tractors equipped with 22" liquefied petroleum gas tank) (C only) 2.25" ID x 2.25", SAE 20R1 Class R

1шт.

11

357028R1

PIPE, air cleaner 2.25" OD, 14.75" Length

1шт.

12

363005R91

CUP, oil

1шт.

13

52868DA

CLAMP

oil cup retaining

1шт.

14

60669D

BRACKET, air cleaner (gasoline, distillate or kerosene) (A only) (B only) (for tractors equipped with 24" liquefied petroleum gas tank) (C only)

1шт.

14

364592R11

BRACKET, air cleaner (not illustrated) (for tractors equipped with 22" liquefied petroleum gas tank) (C only)

1шт.

102635

NUT,3/8"-16, G5

(1 used with 364592R11) 3/8"-16, G5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8" (1 used with 364592R11)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (3 used with 364592R11) 3/8"

4шт.

15

60678DX

BAND, air cleaner bracket

2шт.

NLS

NO LONGER SERVICED

sq-hd., 5/16-18NC

2шт.

117296

SCREW, fil-hd., 5/16-18NC x 1-1/2"

2шт.
