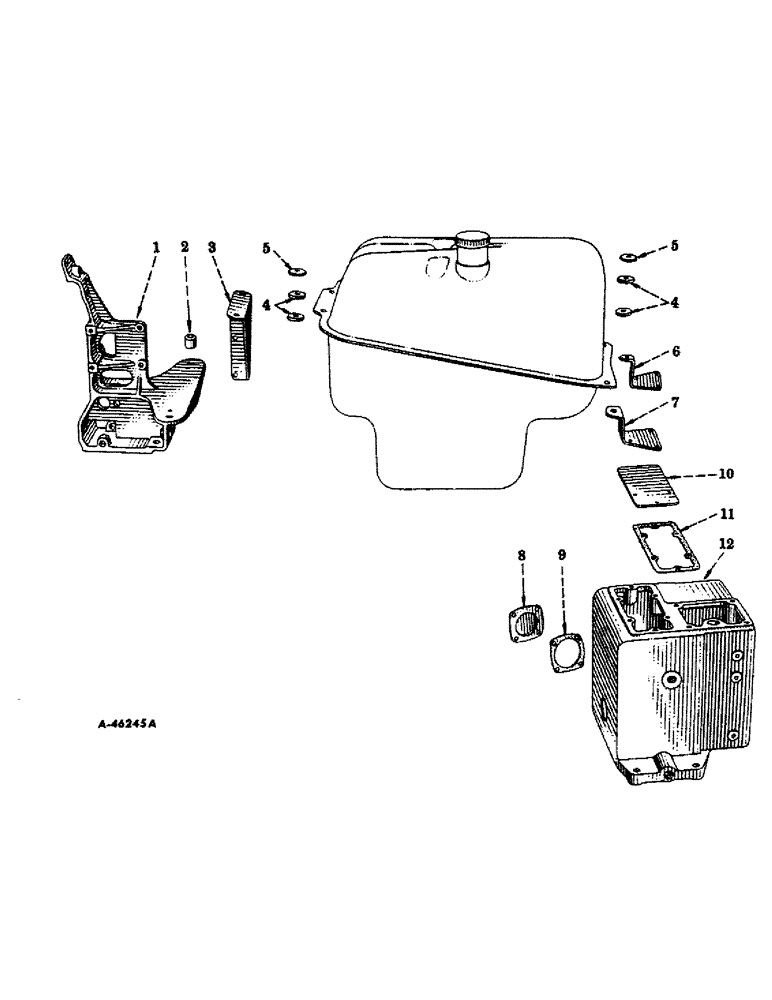

Запчасти Case IH 450-SERIES (236) - CHASSIS, AIR CLEANER AND FUEL TANK SUPPORT (12) - CHASSIS

1

9099DC

SUPPORT, fuel tank and air cleaner (diesel, gasoline, distillate or kerosene) (liquefied petroleum gas) Farmall 400 Series, Serial Range: 501-23538

1шт.

1

364597R1

SUPPORT, fuel tank and air cleaner (not illustrated) (liquefied petroleum gas) Farmall 400 Series, 23539 up, Farmall 450 Series, 501 up

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/8"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

2

363680R1

SPACER, fuel tank mounting, front (liquefied petroleum gas)

2шт.

3

361364R11

BRACKET, fuel tank support, front (see note A)

1шт.

4

60671D

INSULATOR BLOCK

PAD, fuel tank insulating (see note A)

8шт.

5

362321R1

RETAINER, fuel tank insulating (see note A)

4шт.

6

361399R21

SUPPORT, fuel tank, rear, L.H. (see note A)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (3 used) Farmall 400 Series, 501 to 23538

2шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/8" Farmall 400 Series, 23539 up, Farmall 450 Series, 501 up

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (3 used) Farmall 400 Series, 501 to 23538 3/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, , Farmall 400 Series, 23539 up, Farmall 450 Series, 501 up 7/16"

1шт.

7

361400R21

SUPPORT, fuel tank, rear, R.H.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (3 used) Farmall 400 Series, 501 to 23538

2шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/8" Farmall 400 Series, 23539 up, Farmall 450 Series, 501 up

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (3 used) Farmall 400 Series, 501 to 23538 3/8"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, , 23539 up 7/16"

1шт.

8

363088R1

PLATE, hydraulic reservoir (not used on tractors equipped with Hydra-Touch System)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

4шт.

9

361441R1

GASKET

hydraulic reservoir side plate

1шт.

10

361442R2

PLATE, reservoir top cover

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (not used on tractors equipped with Hydra-Touch System)

1шт.

11

361443R2

GASKET

reservoir top cover plate

1шт.

12

361517R11

RESERVOIR, hydraulic, w/plug, 103879 and plug, 143999 (order 364069R91) Farmall 400 Series, Serial Range: 501-23538

1шт.

12

361517R21

RESERVOIR, hydraulic, w/plug, 103879 and plug, 143999, Farmall 400 Series, 23539 up, Farmall 450 Series, 501 up

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8" (drain plug)

1шт.

143999

PLUG

pipe, sq-socket, stl., 3/4" (reservoir filler hole plug) (not used on tractors equipped with Hydra-Touch System)

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/2"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

364069R91

PACKAGE, service, hydraulic reservoir (will work for 361517R11) (consists of gasket, 361443R2, reservoir, 361517R21 and two screws, 179860) Farmall 400 Series, Serial Range: 501-23538

1шт.
