Запчасти Case IH 450-SERIES (234) - CHASSIS, ENGINE SPEED CONTROLS (12) - CHASSIS

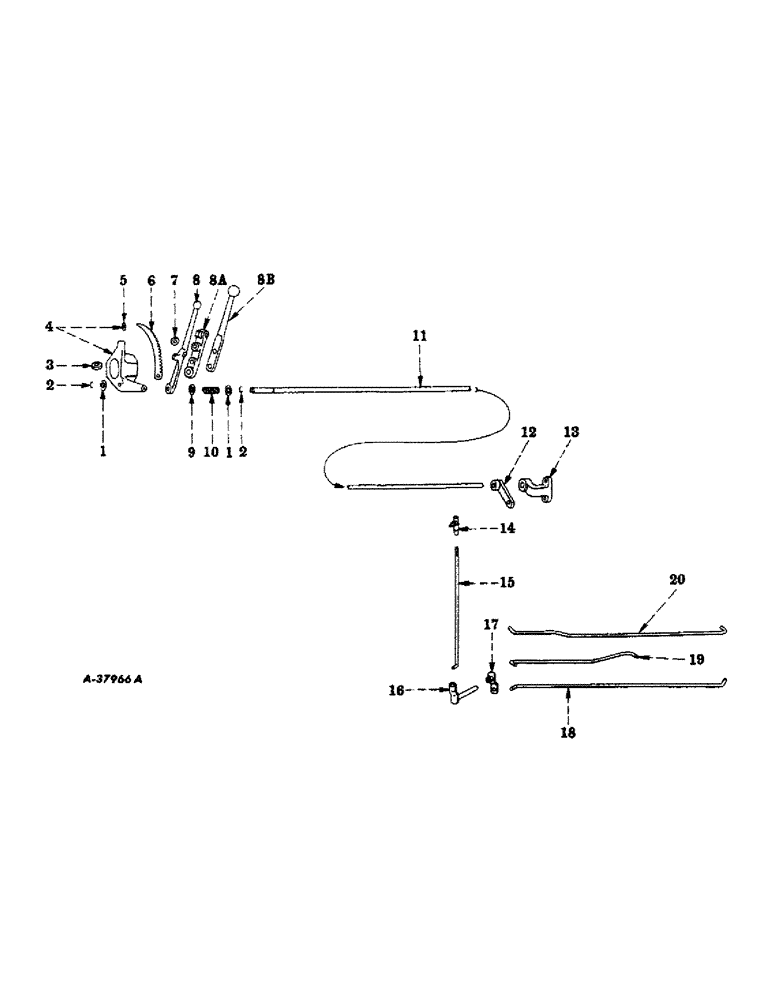

Схема запчастей Case IH 450-SERIES - (234) - CHASSIS, ENGINE SPEED CONTROLS (12) - CHASSIS
2
8a
20
1
19
7
4
16
12
10
11
8
5
14
17
1
8b
18
13
2
3
15
9
6

Артикул

Название

Примечание

Количество

1

363665R1

WASHER, engine speed control rod spring

2шт.

2

362068R1

RING, snap, engine speed control handle spring (used with rod halving grooves)

2шт.

3

18465D

WASHER

KEY, engine speed control sector bracket

1шт.

4

362063R11

BRACKET, engine speed control sector, w/125617 fitting (for carbureted engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to, (for diesel engine tractors) Farmall 400 Series, Farmall 450 Series, Serial Range: 501-12436

1шт.

4

368727R1

BRACKET, engine speed control sector (for carbureted engine tractors) Farmall 450 Series up (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

138243

PIN

SCREW, cap, hex-socket-hd., 3/8-16NC x 1-1/4"

1шт.

5

110161

FITTING, lubrication, straight, drive type, 3/16" (steering shaft rear bearing) (optional with 125617) (used only with bracket, 362063R11)

1шт.

5

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication, straight, drive type, 3/16" (steering rear bearing) (optional with 110161) (used only with bracket, 362063R11)

1шт.

6

362064R1

SECTOR, engine speed (for carbureted engine tractors)

1шт.

6

363106R2

SECTOR, engine speed (for diesel engine tractors)

1шт.

120571

SCREW

mach., slotted-truss-hd., 1/4-20NC x 1/2"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

362066R2

KEY, engine speed

1шт.

179795

TILLAGE BLADE

SCREW, cap, hex-hd., 1/4-20NC x 3/4"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

362065R1

HANDLE

engine speed control (not used on tractors equipped with cotton picker mounting parts)

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

(will work for 17047R1) 5/32" x 7/8", Coiled

1шт.

8a

364159R1

HUB, engine speed control (for tractors equipped with cotton picker mounting parts)

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

(will work for 17047R1) 5/32" x 7/8", Coiled

1шт.

8b

364160R1

HANDLE, engine speed control (for tractors equipped with cotton picker mounting parts)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

446220

WASHER

plain, 1/2" I.D. x 1-1/8" O.D. x no. 14 ga.

1шт.

10

354746R1

SPRING

engine speed control handle

1шт.

11

362067R2

ROD

governor control, upper

1шт.

19310R1

PIN,3/32" x 5/8", Coiled

used with rod having holes (will work for 17283R1) 3/32" x 5/8", Coiled

2шт.

12

362069R11

LINK, engine speed control rod, upper, w/hub

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

(will work for 17157R1) 5/32" x 3/4", Coiled

1шт.

13

362070R1

BRACKET, engine speed control rod, upper

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

109416

JOINT

ball, type C, 5/16" (optional with 442720 and 365869R91)

1шт.

14

442720

BALL JOINT

JOINT, ball, type C, 5/16" (cd. or zn-pltd.) (optional with 109416 and 365869R91)

1шт.

14

365869R91

JOINT

ball, 5/16" (optional with 109416 and 442720)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

15

362071R1

ROD

engine speed control, center

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

16

362073R91

SHAFT, pivot, engine speed control, w/arm

1шт.

17

362075R11

ARM, engine speed control pivot shaft, w/hub (for carbureted engine tractors)

1шт.

17

362076R11

ARM, engine speed control pivot shaft, w/hub (for diesel engine tractors)

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

(will work for 17157R1) 5/32" x 3/4", Coiled

1шт.

18

362078R1

ROD, engine speed control, front (for carbureted engine tractors except liquefied petroleum gas)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 13/16" O.D. x no. 16 ga.

2шт.

19

362079R1

ROD, engine speed control, front (for diesel engine tractors)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

2шт.

20

363677R1

ROD, engine speed control, front (for tractors equipped with liquefied petroleum gas)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

95-11034

WASHER,1/4"

plain, 13/32" I.D. x 11/6" O.D. x no. 16 ga.

2шт.

Выбрано товаров: 53
