Запчасти Case IH 450-SERIES (221) - CHASSIS, RADIATOR AND CONNECTIONS (12) - CHASSIS

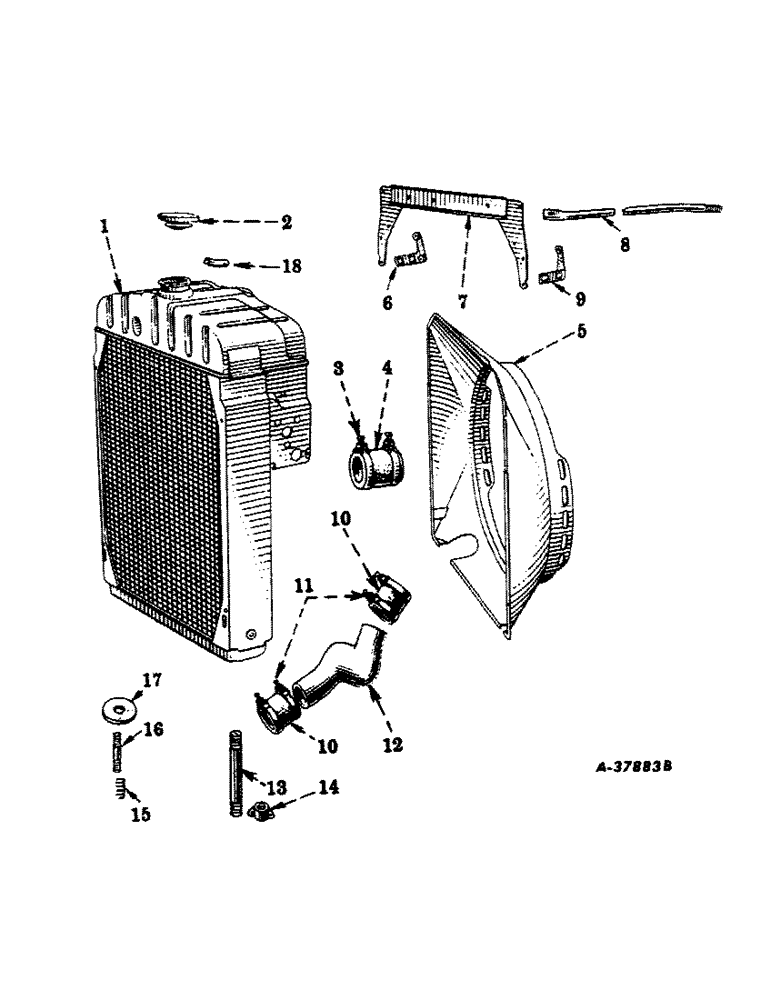

Схема запчастей Case IH 450-SERIES - (221) - CHASSIS, RADIATOR AND CONNECTIONS (12) - CHASSIS
12
9
10
5
4
8
10
13
7
15
1
18
16
11
3
17
2
6
14

Артикул

Название

Примечание

Количество

1

361416R93

RADIATOR, w/cap, 361705R91, two nuts, 82447R1, two studs, 357890R2 and two scews, 362664R91

1шт.

2

361705R91

COVER

CAP, radiator filler (will work for 362323R91)

1шт.

3

357870R91

CLAMP

radiator inlet hose

2шт.

4

250841R1

HOSE

radiator inlet pipe, 2-1/8" I.D. x 5-1/8" long, 3 ply (for carbureted engine tractors)

1шт.

4

367195R1

HOSE, radiator inlet pipe, 2-1/8" I.D. x 2-3/4" long, 3 ply (will work for 55175D) (for diesel engine tractors)

1шт.

5

49534DCX

HOUSING

fan, extension (for diesel engine tractors)

1шт.

5

51986DBX

HOUSING, fan, w/extension (for carbureted engine tractors)

1шт.

13539R1

BOLT,Sq Hd, 1/4" - 20 x 4 3/4"

machine, sq-hd., 1/4-20NC x 4-3/4"

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

361422R21

BRACKET, hood and grille anchor R.H. w/two nuts, 363885R91

1шт.

109084

NUT,1/4"-20, G5

2шт.

362662R91

NUT

speed grip, 5/16-24NF (see note A)

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating, cage, 5/16-18NC (see note B)

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

68282DA

TIE PLATE, radiator brace

1шт.

109084

NUT,1/4"-20, G5

4шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

69230D

TIE ROD, radiator

1шт.

102635

NUT,3/8"-16, G5

1шт.

425-117

NUT,7/16"-20, G5

hex., 7/16-20NF

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

115550

LOCK WASHER,Int Tooth, 7/16"

WASHER, lock, internal-tooth, 7/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

9

361421R21

BRACKET, hood and grille anchor, L.H., w/two nuts, 363885R91

1шт.

109084

NUT,1/4"-20, G5

2шт.

362662R91

NUT

speed grip, 5/16-24NF (see note A)

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, 5/16-20NC x 1"

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

12876DA

HOSE

radiator outlet, 2" I.D. x 2-5/8" long, 3 ply

2шт.

11

357870R91

CLAMP

radiator outlet hose

4шт.

12

8192D

PIPE, radiator outlet (gasoline, distillate or kerosene)

1шт.

12

358094R2

PIPE, radiator outlet (liquefied pertroleum gas) (illustrated with carburetor and regulator connections)

1шт.

12

9227D

PIPE, radiator outlet (diesel)

1шт.

13

219327

TUBE,Nipple, 3/8" NPT x 7"

PIPE, radiator drain, 3/8" standard pipe, 7" long, threaded both ends

1шт.

14

13047DA

PLUG

CAP, radiator drain pipe

1шт.

15

67205D

SPRING

radiator hold-down

2шт.

16

357890R2

STUD

radiator mounting

2шт.

82447R1

NUT, lock, hex., 7/16-20NF (optional with 17081R1)

2шт.

17081R1

NUT

lock, hex., 7/16-20NF (optional with 82447R1)

2шт.

Q1515

WASHER

plain, 1/2" I.D. x 7/8" O.D. x no. 16 ga.

4шт.

17

18464DA

GASKET

PAD, radiator

2шт.

18

274141R1

HOSE, overflow pipe connecting (used on radiators with two piece overflow pipes)

1шт.

Выбрано товаров: 47
