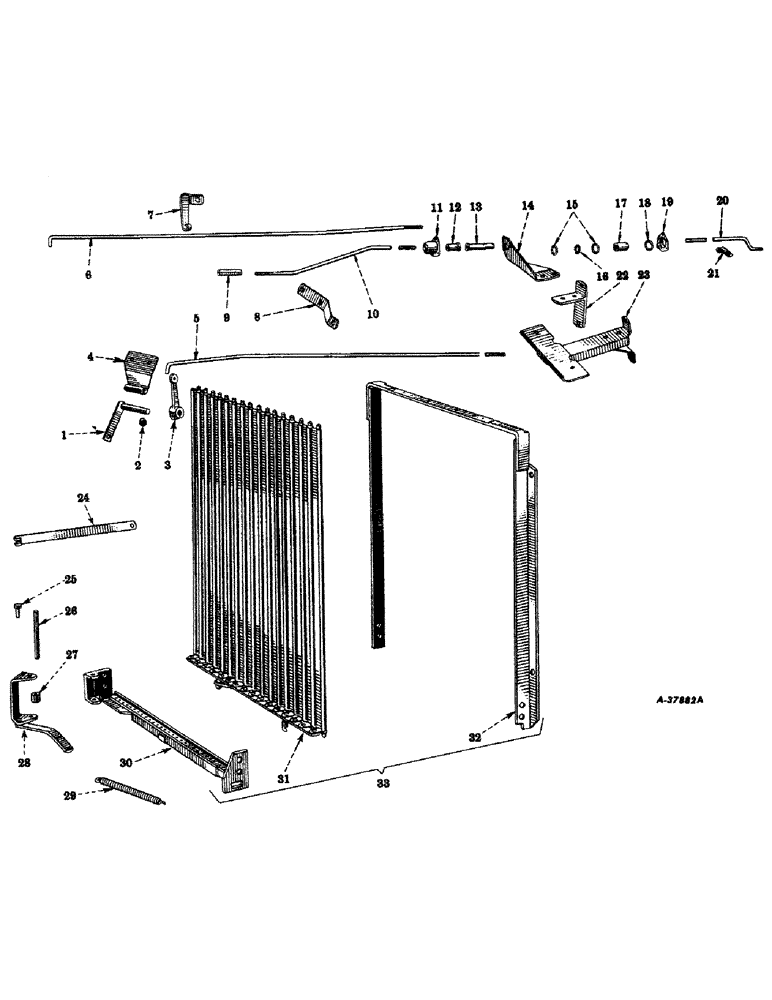

Запчасти Case IH 450-SERIES (214) - CHASSIS, RADIATOR SHUTTER AND CONTROLS (12) - CHASSIS

49098DR

SHUTTER, radiator, assembly, composed of (1) bellcrank 51620D, (1) frame 52829D, (4) nut 13000R1, (1) pin 51619D, (2) pin 112526, (4) screw 113955, (1) shutter 52827D, (1) spacer 55328D, (1) spring 37730D, (1) tie bar 52830D, (4) washer 103319

1шт.

1

49101DA

ARM, radiator shutter control bellcrank, lower (A only)

1шт.

1

59228DA

ARM, radiator shutter control bellcrank, lower (B only) (C only)

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

W6185

PIN, std-hd., drilled, 5/16 x 9/16"

1шт.

2

48869D

KEY, radiator shutter control bellcrank lever arm

1шт.

3

8934D

ARM, radiator shutter control bellcrank lever, upper

1шт.

109084

NUT,1/4"-20, G5

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

355900R2

BRACKET, radiator shutter bellcrank (B only) (C only)

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3/4" (B only) (C only)

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (B only) (C only) 7/16"

2шт.

5

363400R1

ROD, radiator shutter control, rear (front section) (A only)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), (A only) 3/32" x 5/8"

1шт.

6

363399R1

ROD, radiator shutter control, rear (front section) (B only) (C only)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), (B only) (C only) 3/32" x 5/8"

1шт.

7

363782R1

SUPPORT, radiator shutter rod, rear (front section) (B only) (C only)

1шт.

8

363401R1

BRACKET, radiator shutter control rod guide

1шт.

103026

NUT,3/8"-24, G5

2шт.

181365

BOLT,Hex, 3/8" - 24 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/8"

1шт.

181377

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

69579DA

COUPLING, radiator shutter control rod

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

10

363398R1

ROD, radiator shutter control, rear (center section)

1шт.

11

363391R2

RETAINER, radiator shutter control rod front sleeve

1шт.

12

363390R1

SLEEVE, front, radiator shutter control rod

1шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

1шт.

13

363385R1

SLEEVE, rear, radiator shutter control

1шт.

17064R1

LOCK PIN,1/8" x 5/8", Slotted

Pin, 1/8" x 5/8", Slotted

1шт.

14

363394R1

BRACKET, radiator shutter

1шт.

102635

NUT,3/8"-16, G5

(For tractors without hydra-touch or with Hydra-Touch System) (single valve) 3/8"-16, G5

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(For tractors without Hydra-touch or with Hydra-Touch System) (Single valve) Hex, 3/8"-16 x 1", G5

2шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

(for tractors with Hydra-Touch System) (double or triple valve) Hex, 3/8"-24 x 5/8", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

363402R1

WASHER, thrust, radiator shutter control

2шт.

16

363386R91

RETAINER, w/balls (optional with 364378R91)

1шт.

16

364378R91

RETAINER, w/balls (optional with 363386R91)

1шт.

17

363387R1

SLEEVE, outer, radiator shutter control

1шт.

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

18

363388R1

WASHER, felt, radiator shutter control

1шт.

19

363389R2

RETAINER, radiator shutter control felt washer

1шт.

103088

NUT,#10-32

hex., no. 10-32

3шт.

100764

SCREW,Sl Rd Hd, #10 - 24 x 1/2"

machine, rd-hd., no. 10-32 x 1/2"

3шт.

118873

WASHER, lock, no. 10

3шт.

20

363383R1

ROD, radiator shutter control, rear (rear section)

1шт.

21

363384R1

SUPPORT, radiator shutter control

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

363395R91

SUPPORT, radiator shutter control bracket (for tractors without hydra-touch or with Hydra-Touch System) (single valve)

1шт.

NLS

NO LONGER SERVICED

2шт.

23

365925R91

1шт.

PACKAGE, service junction block and radiator shutter control bracket support (for tractors with Hydra-Touch System and two hole mounting junction block) (double or triple valve) (will work for 363392R91) consists of (4) allenut 365922R1, (2) grommet 365919R1, (4) screw 179848, (2) screw 365918R1, (1) support 365924R91, (A only) (B only)

1шт.

23

365924R91

SUPPORT, junction block and radiator shutter control bracket (for tractors with Hydra-Touch System and one hole mounting junction block) (double or triple valve) (B only) (C only)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

51989D

ROD, radiator shutter control, front (A only)

1шт.

24

59231D

ROD, radiator shutter control, front (B only) (C only)

1шт.

25

53055D

CLEVIS PIN,1/4" x 1"

PIN, radiator shutter control rod, front

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

1шт.

95-11028

WASHER,1/4"

plain, 9/32" I.D. x 5/8" O.D. x no. 16 ga.

1шт.

26

51619D

PIN, bellcrank and link

1шт.

112526

PIN, cotter, 1/16 x 3/8"

2шт.

27

55328D

SPACER, bellcrank pin

1шт.

28

51620D

BELLCRAK, w/link

1шт.

29

37730D

SPRING, bellcrank and operating link

1шт.

30

52830D

TIE BAR, bottom, and bearing bar

1шт.

13000R1

NUT, hex., 1/4-20NC

4шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

machine, slotted-rd-hd., 1/4-20NC x 1/2"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

31

52827D

SHUTTER, w/operating bar

1шт.

32

52829D

FRAME, and bearing bar

1шт.

33

52828D

UNIT, shutter, assembly, composed of (1) frame 52829D, (4) nut 13000R1, (4) screw 113955, (1) shutter 52827D, (1) tie bar 52830D, (4) washer 103319

1шт.

365922R1

ALLENUT, junction block, 3/8-16NC (for tractors with Hydra-Touch System, double or triple valve) (C only)

4шт.

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

junction block bracket (for tractors with Hydra-Touch System, double or triple valve) (C only)

2шт.

365918R1

SCREW, cap, junction block (for tractors with Hydra-Touch System, double or triple valve) (C only)

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4" (junction block) (for tractors with Hydra-Touch System, double or triple valve) (C only)

4шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

(Junction block) (For tractors with Hydra-Touch System, double or triple valve) (C only) Hex, 3/8"-16 x 2 1/4", G5

4шт.
