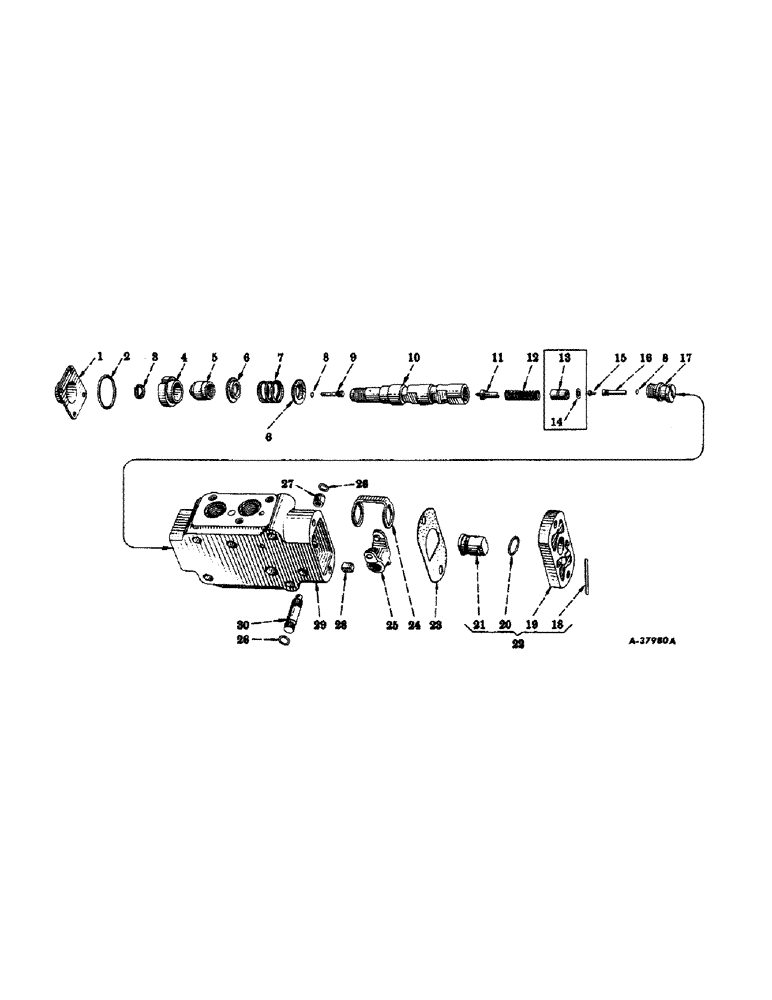

Запчасти Case IH 450-SERIES (375) - HYDRAULIC SYSTEM, HYDRA-TOUCH CONTROL VALVE, FOR TRACTORS EQUIPPED W/HYDRA-TOUCH SYSTEM (07) - HYDRAULIC SYSTEM

1

360607R1

CAP

control valve

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 1/2"

4шт.

2

360610R1

O-RING,1.609" ID x 0.139" Width

RING, seal, control valve cap

1шт.

3

360606R1

SPRING,Extension, 0.174" OD x 1.90" L

garter

1шт.

4

360609R1

SLEEVE, garter spring

1шт.

5

360605R1

RETAINER, unlatching piston, lower

1шт.

6

360595R1

RETAINER, control valve centering spring

2шт.

7

360594R2

SPRING

control valve centering

1шт.

8

361300R1

O-RING,0.145" ID x 0.07" Width

RING, seal, unlatching piston

2шт.

9

361024R1

PISTON

unlatching, lower

1шт.

10

VALVE, control, w/seat insert (not serviced separately) order body, ref 29

1шт.

11

360600R1

VALVE

unlatching

1шт.

12

360601R1

SPRING

unlatching valve

1шт.

13

GUIDE, unlatching piston (order 360604R2)

1шт.

14

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, unlatching piston guide (used only with guide, reference no. 13)

1шт.

15

362164R11

VENT

PLUG and SCREEN, control valve orifice

1шт.

16

360596R1

PISTON

unlatching, upper

1шт.

17

360604R2

RETAINER, unlatching piston, upper (will work for guide, 360598R1 and ring, 355967R1)

1шт.

18

17165R1

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

19

360617R11

COVER, control valve body, w/clip and two rivets

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, cap, hex-hd., cd-pltd., 3/8-16NC x 1-1/8"

2шт.

20

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, control valve indexing bushing (43/64" I.D.)

1шт.

21

360619R1

BUSHING, control valve indexing (1-7/64" long)

1шт.

P/N 365981R91, hydra-touch control valve assembly (will work for 360590R92, 364535R91 and 364536R91) (used in single valve position for tractors, without power steering and for Farmall 400 Series double and triple valve positions)

1шт.

P/N 365983R91, hydra-touch control valve assembly (will work for 365409R91) (used in single valve position for tractors, with power steering)

1шт.

21

365449R1

BUSHING, control valve indexing (4-1/2" long) (included in control valve assembly) (not illustrated)

1шт.

P/N 365447R91, hydra-touch control valve assembly (used for Farmall 450 Series double and triple valve positions)

1шт.

21

366886R1

BUSHING, control valve indexing (4" long) (not included in control valve assembly) (not illustrated)

1шт.

P/N 365981R91, hydra-touch control valve assembly (will work for 360590R92, 364535R91 and 364536R91) (used in single valve position for tractors, without power steering and for Farmall 400 Series double and triple valve positions)

1шт.

P/N 365983R91, hydra-touch control valve assembly (will work for 365409R91) (used in single valve position for tractors, with power steering)

1шт.

22

360616R91

COVER

control valve body, assembly, composed of (1) bushing 360619R1, (1) cover 360617R11, (1) pin 17165R1, (1) ring 350667R1

1шт.

P/N 365981R91, hydra-touch control valve assembly (will work for 360590R92, 364535R91 and 364536R91) (used in single valve position for tractors, without power steering and for Farmall 400 Series double and triple valve positions)

1шт.

P/N 365983R91, hydra-touch control valve assembly (will work for 365409R91) (used in single valve position for tractors, with power steering)

1шт.

22

365448R91

COVER

control valve body, assembly (not illustrated) composed of (1) bushing 365449R1, (1) cover 360617R11, (1) pin 17165R1, (1) ring 350667R1

1шт.

P/N 365447R91, hydra-touch control valve assembly (used for Farmall 450 Series double and triple valve positions)

1шт.

23

360620R1

GASKET

control valve cover

1шт.

24

360611R1

GUIDE

control valve

1шт.

25

360612R11

YOKE, control valve, w/two pin

1шт.

26

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, control valve lever shaft

2шт.

27

360615R1

BUSHING

control valve lever shaft

1шт.

17164R1

LOCK PIN,3/32" x 7/16", Slotted

PIN, 3/32" x 7/16", Slotted

1шт.

28

360591R1

PLUG, control valve body

1шт.

29

365936R91

BODY, control valve, w/five plugs, retainer, 360604R2 and valve (body has four ports) (will work for 360634R93)

1шт.

P/N 365981R91, hydra-touch control valve assembly (will work for 360590R92, 364535R91 and 364536R91) (used in single valve position for tractors, without power steering and for Farmall 400 Series double and triple valve positions)

1шт.

P/N 365447R91, hydra-touch control valve assembly (used for Farmall 450 Series double and triple valve positions)

1шт.

29

365989R91

BODY, control valve, w/five plugs, retainer, 360604R2 and valve (body has three ports) (not illustrated) (will work for 365410R91)

1шт.

P/N 365983R91, hydra-touch control valve assembly (will work for 365409R91) (used in single valve position for tractors, with power steering)

1шт.

30

360614R1

SHAFT

control valve lever

1шт.
