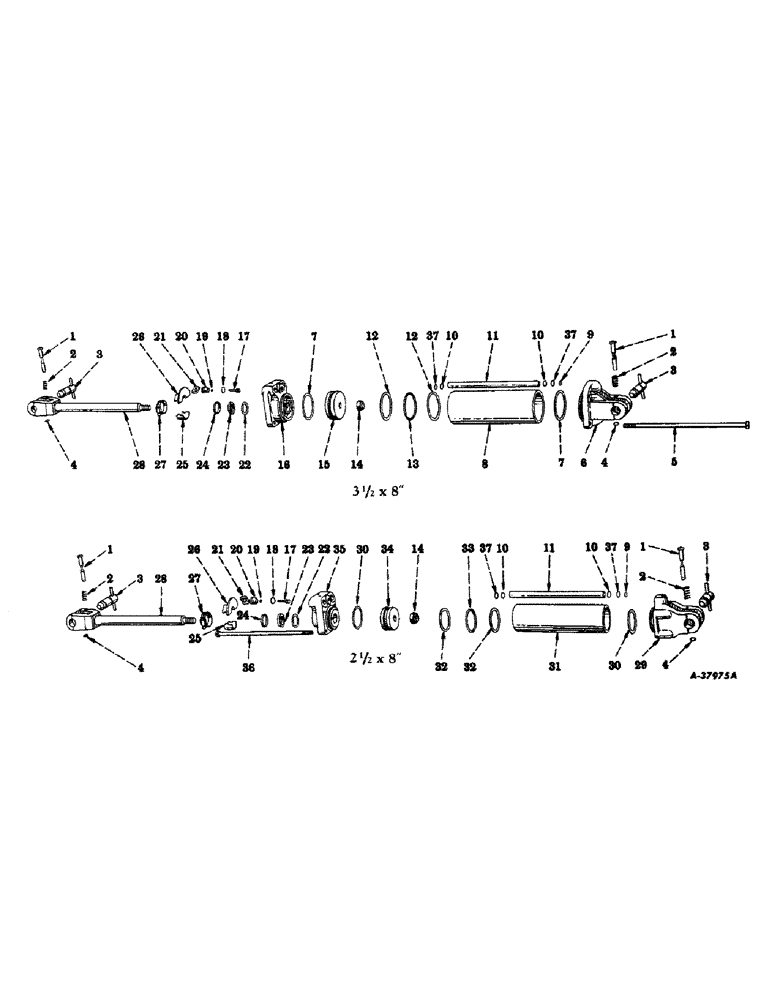

Запчасти Case IH 450-SERIES (367) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

352231R11

PIN

cylinder pivot, w/handle

2шт.

4

354837R1

WASHER

lock pin

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

tie, hydraulic cylinder (A only)

4шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF (A only)

4шт.

6

361002R1

HEAD, hydraulic cylinder (bottom end) (A only)

1шт.

7

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

RING, seal, hydraulic cylinder (A only)

2шт.

8

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, hydraulic cylinder (A only)

1шт.

9

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

354835R1

WASHER

cylinder return tube

2шт.

11

354834R11

SLEEVE

TUBE, cylinder return, w/two washers, 354835R1

1шт.

12

361012R1

WASHER

back-up, piston head (A only)

2шт.

13

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

RING, seal, piston head (A only)

1шт.

14

361011R1

NUT

lock, piston rod

1шт.

15

361003R1

HEAD

piston (A only)

1шт.

16

361001R11

HEAD

hydraulic cylinder (piston rod end), w/two plugs, 362356R3 and two plugs, 365101R1 (A only)

1шт.

362356R3

PLUG, pipe cylinder head (1/8") (will work for 50410DA) (A only)

2шт.

362356R3

PLUG, automotive pipe, sq-socket, stl., 1/2" (will work for 444703) (A only)

4шт.

17

361006R11

VALVE

limit stop w/seal

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, limit stop valve retainer

1шт.

19

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

RING, limit stop valve

1шт.

20

361007R11

RETAINER

limit stop valve, w/seal ring retainer

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

2шт.

22

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

gland, cylinder piston rod

1шт.

23

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust, piston rod

1шт.

24

354049R1

RETAINER

piston rod dust seal

1шт.

25

360372R1

COLLAR

stroke limit plain half

1шт.

26

361010R1

COLLAR

stroke limit flanged half

1шт.

27

361085R91

CLAMP

stroke limit collar, w/screw (optional with 361087R91)

1шт.

27

361087R91

CLAMP, stroke limit collar, w/screw (optional with 361085R91)

1шт.

28

361005R11

PISTON ROD

ROD, piston, w/yoke

1шт.

29

360999R11

HEAD

hydraulic cylinder, (bottom end), w/plug 365101R1 (B only)

1шт.

365101R1

PLUG

pipe, cylinder head rear (1/8") (will work for 50410DA) (B only)

1шт.

30

356818R1

GASKET

RING, seal, hydraulic cylinder (B only)

2шт.

31

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

hydraulic cylinder (B only)

1шт.

32

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

back-up, piston head (B only)

2шт.

33

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING, seal, piston head (B only)

1шт.

34

361000R1

HEAD

piston

1шт.

35

360998R11

HEAD

hydraulic cylinder, (piston rod end), w/two plugs, 362355R3, two plugs, 362356R3 and three plugs, 365101R1 (B only)

1шт.

365101R1

PLUG

pipe, cylinder head (1/8") (will work for 50410DA) (B only)

3шт.

362355R3

PLUG

automotive pipe, sq-socket, stl., 1/4" (will work for 444691) (B only)

2шт.

362356R3

PLUG, automotive pipe, sq-socket, stl., 1/2" (will work for 444703) (B only)

2шт.

36

18179R1

BOLT, hex., reg. 7/16-14NC x 12-1/8" (B only)

4шт.

37

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, cylinder return tube

2шт.

363137R91

SEAL KIT

PACKAGE, 2-1/2 x 8" hydraulic cylinder seal ring, consists of (1) ring 350429R1, (1) ring 350657R1, (2) ring 352221R1, (1) ring 354047R1, (2) ring 356818R1, (1) ring 360599R1, (1) seal 354048R1, (2) washer 361013R1

1шт.

363138R91

SEAL KIT

PACKAGE, 3-1/2 x 8" hydraulic cylinder seal ring, consists of (1) ring 350429R1, (1) ring 352216R1, (2) ring 352221R1, (1) ring 354047R1, (2) ring 354836R1, (1) ring 360599R1, (1) seal 354048R1, (2) washer 361012

1шт.
