Запчасти Case IH 450-SERIES (365) - HYDRAULIC SYSTEM, BREAK-AWAY AND SELF-SEALING COUPLING (07) - HYDRAULIC SYSTEM

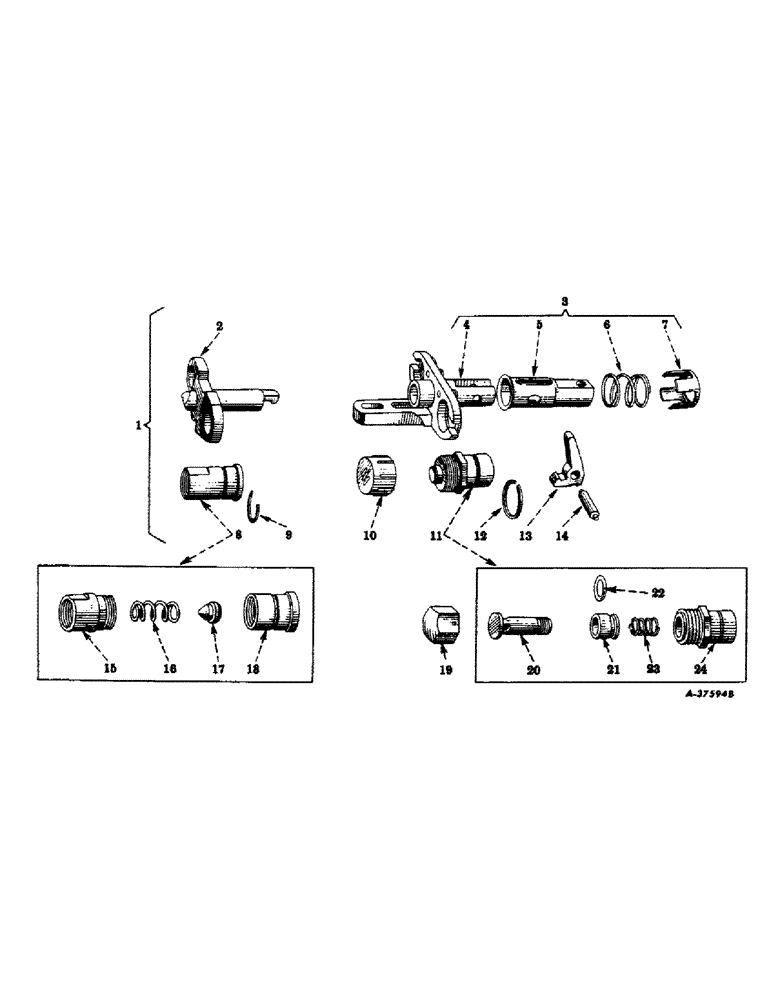

Схема запчастей Case IH 450-SERIES - (365) - HYDRAULIC SYSTEM, BREAK-AWAY AND SELF-SEALING COUPLING (07) - HYDRAULIC SYSTEM
21
19
18
5
20
24
10
6
9
23
22
1
16
3
7
14
13
4
6
11
2
12
15
17

Артикул

Название

Примечание

Количество

364310R91

COUPLING, break-away, 364311R91, w/coupling, 353216R91 (will work for 353086R91)

1шт.

1

353216R91

COUPLING

break-away, rear section, assembly, composed of (2) coupling 353218R91, (1) frame 353220R1, (2) ring 353228R1

1шт.

2

353220R1

FRAME, break-away, rear (will work for 357137R91)

1шт.

3

364311R91

COUPLING, break-away, front section, assembly (will work for 353215R91) composed of (2) coupling 353217R92, (1) frame 364312R91

1шт.

3

364312R91

FRAME, break-away, assembly (will work for 353219R91) composed of (1) cover 353223R1, (1) drawbar 353222R1, (1) frame 364313R91, (1) latch 353225R1, (1) pin 353226R1, (1) spring 353224R1

1шт.

4

364313R91

FRAME, break-away, front w/two pins and two snap rings (will work for 353221R1)

1шт.

5

353222R1

DRAWBAR, break-away frame (will work for 357138R91)

1шт.

6

353224R1

SPRING, break-away frame latch

1шт.

7

353223R1

COVER, break-away frame latch spring

1шт.

8

353218R91

COUPLING

half, break-away, rear, or hydraulic self-sealing female, assembly, composed of (1) adapter 357129R1, (1) body 357130R1, (1) spring 357128R1, (1) valve 357R91

1шт.

9

353228R1

RING, snap, break-away coupling, rear

2шт.

10

368710R1

CAP

dust, break-away coupling, front section (will work for 355190R3 and 364655R1)

2шт.

11

353217R92

COUPLING

half, break-away, front of hydraulic self-sealing male, assembly, composed of (1) body 357131R1, (1) ring 352221R1, (1) sleeve 364250R91, (1) spring 357135R1, (1) valve 357132R1, (1) washer 368396R1

1шт.

12

353227R1

RING, snap, break-away coupling, front (not used with frame with riveted hinged snap ring)

2шт.

13

353225R1

LATCH, break-away frame

1шт.

14

353226R1

PIN, break-away frame latch

1шт.

15

357129R1

ADAPTER, break-away or self-sealing coupling

2шт.

16

357128R1

SPRING

break-away or self-sealing coupling poppet valve

2шт.

17

357127R91

VALVE

poppet, break-away or self-sealing coupling

2шт.

18

357130R1

BODY, break-away or self-sealing coupling half, rear

2шт.

19

357136R2

EXTRACTOR, break-away or self-sealing coupling tubular valve

1шт.

20

357132R1

VALVE

tubular, break-away or self-sealing coupling

2шт.

21

364250R91

BUSHING

SLEEVE, insert, break-away or self-sealing coupling w/seal (will work for 357133R1 and 357134R91)

2шт.

22

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, break-away or self-sealing coupling tubular valve

2шт.

23

357135R1

SPRING

break-away or self-sealing coupling tubular valve

2шт.

24

357131R1

BODY, front, break-away or self-sealing coupling half

2шт.

368396R1

SEALING RING

WASHER, seal ring, back-up

2шт.

Выбрано товаров: 27
