Запчасти Case IH 450-SERIES (364) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, SPECIAL, SELF-SEALING COUPLINGS (07) - HYDRAULIC SYSTEM

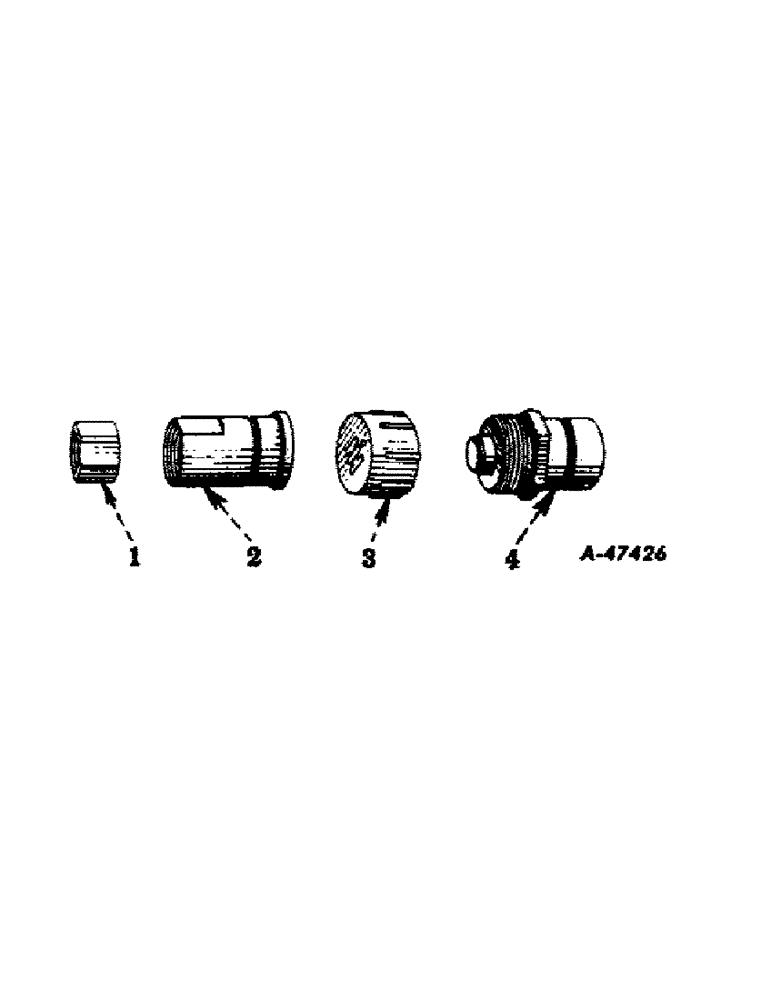

Схема запчастей Case IH 450-SERIES - (364) - HYDRAULIC SYSTEM, HYDRAULIC EQUIPMENT, SPECIAL, SELF-SEALING COUPLINGS (07) - HYDRAULIC SYSTEM
4
3
1
2

Артикул

Название

Примечание

Количество

1

357965R2

NUT

hydraulic, self-sealing coupling

1шт.

2

353218R91

COUPLING

half, hydraulic self-sealing female, assembly (for components see list of parts under detail of "Self-Sealing Coupling")

1шт.

3

368710R1

CAP

dust, hydraulic self-sealing coupling (will work for 364655R1) (B only)

1шт.

4

353217R92

COUPLING

half, hydraulic self-sealing male, assembly (for components see list of parts under detail of "Self-Sealing Coupling") (B only)

1шт.

Выбрано товаров: 4
