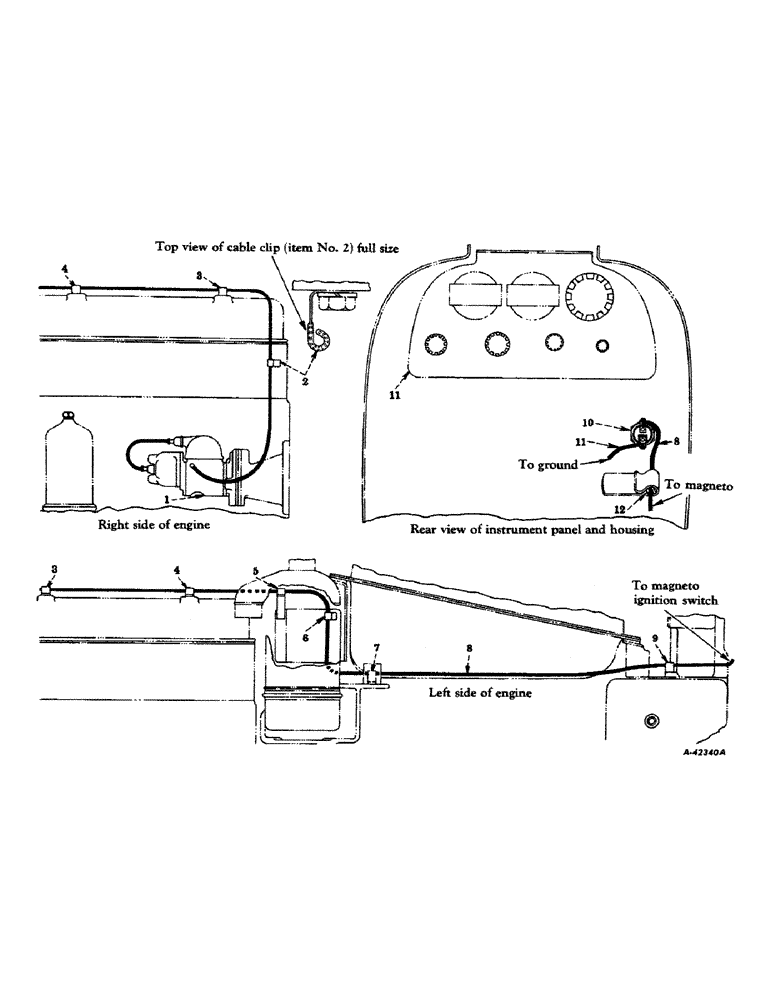

Запчасти Case IH 450-SERIES (162) - ELECTRICAL SYSTEM, CARBURETED ENGINE, MAGNETO IGNITION SYSTEM (06) - ELECTRICAL SYSTEMS

1

363850R91

MAGNETO, assembly (for components see list of parts under detail of "Magneto")

1шт.

2

362667R1

CLIP

cable (on cylinder head)

1шт.

179854

SCREW,Hex, 7/16" - 14 x 5/8"

cap, hex-hd., 7/16-14NC x 5/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

362667R1

CLIP

cable (on front valve cover stud)

1шт.

4

362667R1

CLIP

cable (on rear valve cover stud)

1шт.

5

362667R1

CLIP

cable (on air cleaner mounting bracket front, upper L.H. mounting bolt)

1шт.

6

364408R1

CLIP, cable (on air cleaner mounting bracket rear, upper L.H. mounting bolt)

1шт.

7

362667R1

CLIP

cable (on bottom hood sheet center bracket mounting bolt, LH side)

1шт.

109084

NUT,1/4"-20, G5

1шт.

113956

WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"

machine, slotted-rd-hd., 1/4-20NC x 5/8"

1шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

8

364259R91

CABLE, magneto to magneto ignition switch

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SCREW, slotted-fil-hd., cd-pltd., no. 10-32NF x 5/16" (in magneto short circuiting terminal)

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, (In magneto short circuiting terminal) #10

1шт.

9

362667R1

CLIP

cable (on universal control valve column front LH mounting bolt)

1шт.

10

367168R91

SWITCH, magneto ignition, complete

1шт.

11

367165R91

CABLE, magneto ignition, Serial Range: switch-ground

1шт.

12

52728D

CUSHION, cable clip

1шт.
