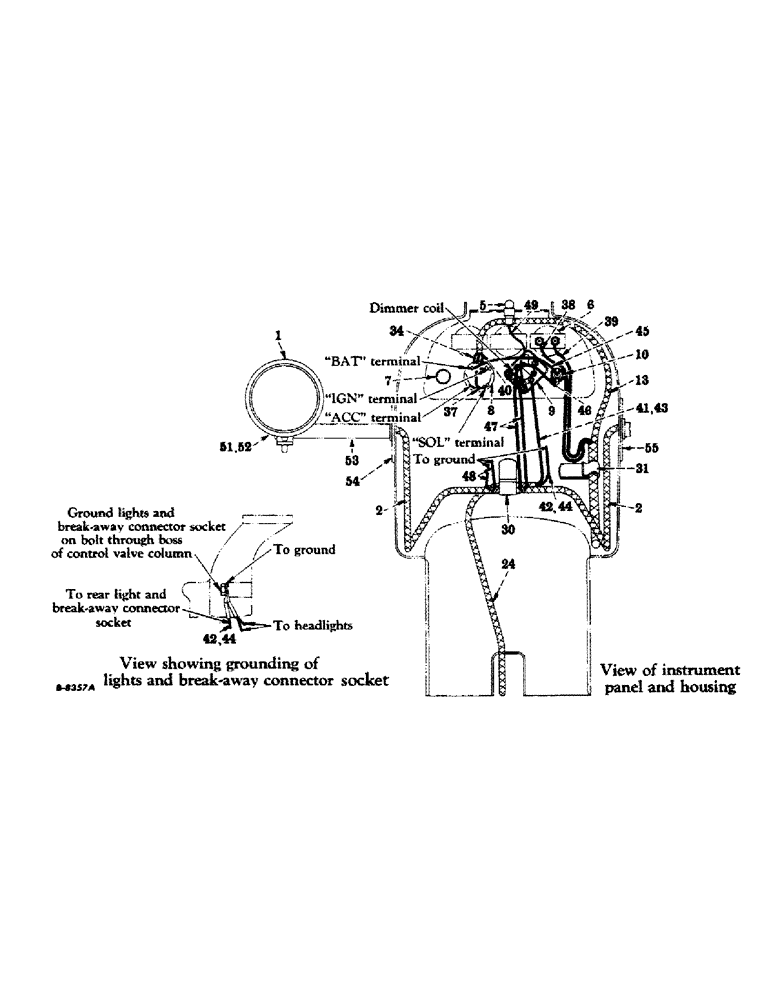

Запчасти Case IH 450-SERIES (149) - ELECTRICAL SYSTEM, CARBURETED ENGINE, STARTING & LIGHTING, BATTERY IGNITION, 12 VOLT (06) - ELECTRICAL SYSTEMS

1

357885R94

LAMP

HEADLIGHT, sealed beam (12 volt) (for components see list of parts under detail of "Headlight")

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

362011R91

HARNESS

headlight cable

1шт.

179854

SCREW,Hex, 7/16" - 14 x 5/8"

cap, hex-hd., 7/16-14NC x 5/8" (ground bolt)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

362666R1

CLIP

(on rear fuel tank angle mounting bolt, L.H. side)

1шт.

4

362666R1

CLIP

(on center fuel tank angle mounting bolt, L.H. side)

1шт.

102635

NUT,3/8"-16, G5

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

127934

BELT, TRANSMISSION

LAMP, instrument light (2CP-12-16 volt)

1шт.

6

360053R91

INDICATOR

charge

1шт.

7

432281

HOLE PLUG BUTTON,29/32"

PLUG, dust, cigarette lighter hole

1шт.

8

361998R93

SWITCH

ignition lock and starting (12 volt) (for components see list of parts under detail of "Ignition Lock and Starting Switch") (order 300557R91)

1шт.

8

300557R91

SWITCH

ignition lock and starting, assembly (not illustrated) (will work for 361998R93)

1шт.

9

363131R91

SWITCH

lighting (12 volt) (for components see list of parts under detail of "Lighting Switch")

1шт.

141706

WASHER

lock, internal-tooth, 11/16"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

10

362669R91

HOUSING

fuse, w/knob, 356445R91

1шт.

11

362123R1

CLIP

(on rear valve cover stud)

1шт.

12

362123R1

CLIP

(on front valve cover stud)

1шт.

13

362007R91

HARNESS

cable

1шт.

14

363855R91

GENERATOR (12 volt) (for components see list of parts under detail of "Generator Liquefied Petroleum Gas"), Serial Range: 501-13458

1шт.

14

363727R91

GENERATOR (12 volt) (for components see list of parts under detail of "Generator Liquefied Petroleum Gas") 13459 up

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

362667R1

CLIP

(on generator bracket front mounting bolt)

1шт.

16

362127R1

CLIP

(on distributor bracket top L.H. mounting bolt)

1шт.

17

UNIT, battery ignition (for components see list of parts under detail of "Battery Ignition" unit)

1шт.

18

362123R1

CLIP

(on air cleaner mounting bracket front upper L.H. mounting bolt)

1шт.

19

362122R1

CLIP

(on air cleaner mounting bracket rear lower L.H. mounting bolt)

1шт.

20

362123R1

CLIP

(on front fuel tank angle mounting bolt L.H. side)

1шт.

21

363702R91

MOTOR, cranking (12 volt) (Delco-Remy 1108626)

1шт.

280136

NUT,3/8"-16, G8

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

110730

LOCK WASHER

WASHER, lock, light, 3/8"

1шт.

142186H

WASHER

terminal

1шт.

22

366199R91

CABLE

battery to solenoid switch, w/bolt, 356062 and cover, 364910R1 (will work for 364308R92)

1шт.

356062R91

BOLT

terminal, w/nut, sleeve and washer

1шт.

23

360899R91

REGULATOR

voltage (12 volt) (Delco-Remy 1118779) (for components see list of parts under detail of "Voltage Regulator")

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

362012R92

HARNESS

break-away connector socket cable

1шт.

25

362002R92

SOCKET

electrical break-away connector

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP (on rear light mounting bracket, upper bolt)

1шт.

27

361986R93

LAMP

LIGHT, combination rear light and tail light (12 volt) (for components see list of parts under detail of "Combination Rear Light and Tail Light")

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

28

368537R91

BATTERY (auto-lite) (12 volt) (will work for 358907R91 and 360036R91)

1шт.

29

358987R92

CABLE

STRAP, battery to ground, w/bolt, 356062R91

1шт.

356062

BOLT, terminal, w/nut, sleeve and washer

1шт.

30

CLIP, part of shroud

1шт.

31

CLIP, part of shroud

1шт.

32

362121R1

CLIP

(on battery box R.H. side)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

362121R1

CLIP

(on battery box L.H. side)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

CABLE, ignition and starting switch "IGN" terminal to coil (black) (order harness, ref. no. 13)

1шт.

35

CABLE, regulator "F" terminal to generator "F" terminal (yellow) (order harness, ref. 13)

1шт.

36

CABLE, regulator "GEN" terminal to generator "A" terminal (light blue) (order harness, ref. no. 13)

1шт.

37

CABLE, ignition lock and starting switch "SOL" terminal to solenoid switch (orange) (order harness, ref. no. 13)

1шт.

38

CABLE, charge indicator to solenoid switch (red) (order harness, ref. no. 13)

1шт.

39

CABLE, charge indicator to regulator "BAT" terminal (gray) (order harness, ref. no. 13)

1шт.

40

CABLE, ignition lock and starting switch "BAT" terminal to regulator "L" terminal (light green) (order harness, ref. no. 13)

1шт.

41

CABLE, lighting switch to break-away connector socket (black) (order harness, ref. no. 24)

1шт.

42

CABLE, break-away connector socket to ground (pink) (order harness, ref. no. 24)

1шт.

43

CABLE, lighting switch to combination rear light and tail light (black) (order harness, ref. no. 24)

1шт.

44

CABLE, combination rear light and tail light to ground (pink) (order harness, ref. no. 24)

1шт.

45

CABLE, fuse housing to ignition lock and starting switch "BAT" terminal (used with 362669R91)

1шт.

46

CABLE, fuse housing to lighting switch (used with 362669R91)

1шт.

47

CABLE, lighting switch to headlight (black) (order harness, ref. no. 2)

1шт.

48

CABLE, headlight to ground (pink) (order harness, ref. no. 2)

1шт.

49

362001R91

SOCKET

instrument light, w/cable

1шт.

50

364910R1

BOOT

COVER, solenoid terminal

1шт.

10815V

FUSE

10 ampere

1шт.

51

49069D

SPACER

headlight or rear light

3шт.

52

350920R1

CLAMP

headlight or rear light

3шт.

53

361994R1

PIPE, headlight support

2шт.

54

361992R91

BRACKET, headlight support, RH

1шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, headlight support bracket, w/washer (5/16-24NF thread) (see note A)

4шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

headlight support bracket, w/washer (5/16-18NC thread) (see note B)

4шт.

55

361989R91

BRACKET, headlight support, LH

4шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, headlight support bracket, w/washer (5/16-24NF thread) (see note A)

4шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

headlight support bracket, w/washer (5/16-18NC thread) (see note B)

4шт.

56

361995R12

BRACKET, rear light support

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
