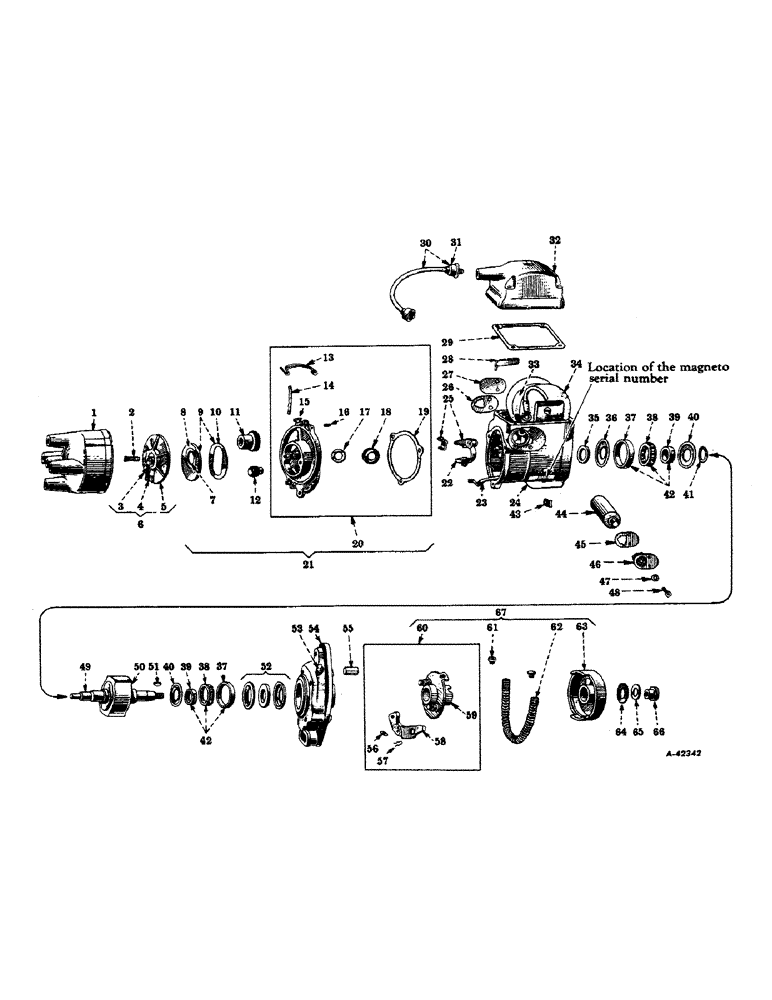

Запчасти Case IH 450-SERIES (172) - ELECTRICAL SYSTEM, DIESEL ENGINE, MAGNETO, FOR TRACTORS EQUIPPED W/MAGNETO IGNITION (06) - ELECTRICAL SYSTEMS

49094DD

MAGNETO, (International H-4) assembly (consists of parts listed in this unit except as noted)

1шт.

1

47413DXC

CAP

distributor, w/five inserts

1шт.

1

47413DYC

CAP

distributor, 47413DXC, w/brush, 21350DXA

1шт.

2

21350DXA

BRUSH, distributor, w/spring (optional with 32032DXA or 356622R11)

1шт.

2

32032DXA

BRUSH

distributor, w/spring (optional with 21350DXA or 356622R11)

1шт.

2

356622R11

BRUSH, distributor, w/spring (optional with 21350DXA or 32032DXA)

1шт.

3

47427D

NUT

distributor rotor

1шт.

131181

WASHER, lock, light, cd-pltd., no. 6

1шт.

4

47428DA

ARM

distributor

1шт.

5

47425DX

ROTOR, distributor, w/insert

1шт.

6

47425DY

CAP

ROTOR, distributor, assembly, composed of (1) arm 47428DA, (1) nut 47427D, (1) rotor 47425DX, (1) washer 131181

1шт.

7

49418D

SEAL, felt, distributor gear cover

1шт.

8

49417D

RETAINER, distributor gear cover felt seal

1шт.

9

49416DX

COVER, distributor gear, assembly, composed of (1) cover 49416D, (1) gasket 49419D, (1) retainer 49417D, (1) seal 49418D

1шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

machine, slotted-rd-hd., cd-pltd., no. 8-32NC x 1/2"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

10

49419D

GASKET

distributor gear cover

1шт.

11

49420DX

PINION

GEAR, distributor (24 teeth)

1шт.

12

47417DX

PINION

(12 teeth) distributor rotor, w/plug

1шт.

13

51666D

SPRING, distributor cap

2шт.

51667D

PIN, distributor cap spring

2шт.

14

E4216

FELT, distributor body oiler

1шт.

15

E4295

OILER, distributor body, w/cap and spring

1шт.

17

49423D

SEAL, felt, distributor rotor pinion

1шт.

18

49424D

RETAINER, distributor rotor pinion felt seal

1шт.

19

47408D

GASKET

distributor body

1шт.

20

6483DAY

BODY, distributor, assembly, composed of (1) body 6483DA, (1) felt E4216, (1) gasket 47408D, (1) oiler E4295, (1) pin 47424D, (2) pin 51667D, (1) retainer 49424D, (1) seal 49423D, (1) shaft 47486D (NSS), (2) spring 51666D

1шт.

132124

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

machine slotted-fil-hd., cd-pltd., no. 10-32NF x 3/4"

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

21

56066DA

DISTRIBUTOR, assembly, composed of (1) body 6483DAY, (1) cover 49416DX, (1) gear 49420DX, (1) pinion 47417DX, (2) screw 132760, (2) washer 121841

1шт.

22

47432D

ANCHOR

breaker arm spring

1шт.

120622

NUT,#8-32

1шт.

133482

SCREW, machine, slotted-fil-hd., cd-pltd., no. 8-32NC x 3/8"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

23

47433DX

CABLE

primary leadout (breaker arm, Serial Range: anchor-condenser)

1шт.

24

6482DAY

FRAME, magneto, assembly, composed of (1) cover 55015D, (1) felt E4226, (1) frame 6482DAX (NSS), (2) gasket 359966R1, (1) post 47485D (NSS), (1) race ST601, (1) retainer 47454D, (2) screw 121832, (2) washer 121841

1шт.

25

353171R91

CONTACT

POINT SET, magneto

1шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

machine, slotted-pan-hd., no. 8-32NC x 5/16"

1шт.

21394D

WASHER

stationary point

1шт.

26

3599R1

GASKET, condenser hole cover

1шт.

27

55015D

COVER, condenser hole

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

machine, slotted-rd-hd., cd-pltd., no. 8-32NC x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

28

47452D

STRAP, coil secondary leadout

1шт.

436652

SCREW, machine, slotted-pan-hd., cd-pltd., no. 4-48NF x 5/16"

1шт.

131093

WASHER, lock, heavy, cd-pltd., no. 4

1шт.

29

47453D

GASKET

coil cover

1шт.

30

356686R92

CABLE

coil to distributor, w/two nipples, 251553R1

1шт.

31

251553R1

BOOT

NIPPLE, coil to distributor cable

2шт.

32

47449DAY

COVER ASSY

COVER, coil assembly, composed of (1) cover 47449DA (NSS), (1) insert 47451D (NSS), (1) screw 436652, (1) strap 47452D, (1) washer 131093

1шт.

131997

SCREW, machine, slotted-fil-hd., cd-pltd., no. 8-32NC x 1-1/2"

4шт.

38609DA

WASHER, mounting, coil cover

4шт.

33

21314DX

CORE

coil, w/two screws, 133495

1шт.

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

machine, slotted-fl-hd., cd-pltd., no. 8-32NC x 5/8"

2шт.

33

47439DAX

COIL ASSY.

COIL, 57926DX, w/core

1шт.

33

57926DX

COIL

w/two insulators, 49593D and two screws, 133495

1шт.

34

49593D

INSULATOR, coil end

2шт.

35

E4226

FELT, rotor shaft bearing

1шт.

36

47454D

RETAINER, rotor shaft, bearing felt, inner

1шт.

37

ST601

RACE

outer (rotor shaft ball bearing)

2шт.

38

ST602

BEARING

RETAINER, w/balls (rotor shaft ball bearing)

2шт.

39

ST600

BEARING

RACE, inner (rotor shaft ball bearing)

2шт.

40

E4A324

FLINGER, oil

2шт.

41

E4A305

SHIM, rotor, light (.002")

1шт.

41

E4212

SHIM, rotor, medium (.004")

1шт.

41

E4A372

SHIM, rotor, heavy (.010")

1шт.

42

ST307

BALL BEARING,0.5906" ID x 1.378" OD x 0.315"

BEARING, ball (rotor shaft)

2шт.

43

48339D

CLIP, condenser

1шт.

131992

LEVER

machine, slotted-fil-hd., cd-pltd., no. 8-32NC x 1-1/4"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

44

214009DB

CONDENSER

1шт.

45

359966R1

GASKET

short circuiting terminal insulator

1шт.

46

359704R1

INSULATOR, short circuiting terminal

1шт.

131760

SCREW, machine, slotted-rd-hd., cd-pltd., no. 8-32NC x 1/2"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

38609DA

WASHER, terminal insulator screw

2шт.

47

359965R1

WASHER, short circuiting terminal

1шт.

48

359967R1

TERMINAL, short circuiting

1шт.

121637

LOCK WASHER

WASHER, lock, light, 1/4"

1шт.

49

60094D

CAM, breaker

1шт.

50

354981R92

ROTOR, assembly, composed of (1) cam 60094D, (2) flinger E4A324, (1) keeper 57314D, (1) key 106749, (2) race ST600, (2) retainer ST602, (1) rotor 49090DA (NSS), (2) shim E4212, (2) shim E4A305, (2) shim E4A372

1шт.

51

106749

KEY

woodruff, no. 3

1шт.

52

353051R91

HOLDER

PACKAGE, service forward oil seal, composed of (1) oil seal 353050R1 (NSS), (1) shim 353054R1 (NSS), (2) shim E4212, (2) shim E4A305, (2) shim E4A372, (1) washer 353052R1, (1) washer 353053R1

1шт.

53

27311D

OILER, impulse coupling, w/cap and spring

1шт.

54

6783DAX

FLANGE, magneto mounting, assembly, composed of (1) flange 6783DA (NSS), (1) oiler 27311D, (1) oil seal 353050R1 (NSS), (1) pin 47468DA, (1) race ST601, (1) washer 353052R1 (NSS), (1) washer 353053R1 (NSS)

1шт.

173464

SCREW, machine, slotted-fl-hd., 1/4-20NC x 9/16"

4шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

(Lower mounting screw) (See note A) Hex, 3/8"-16 x 1 1/2", G5

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8" (Upper mounting screw) (See Notes A and B)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note A) 3/8"

2шт.

114616

WASHER

lock, csk., external tooth, 1/4"

4шт.

24523D

WASHER

magneto mounting screw (see note A)

2шт.

55

47468DA

PIN, stop, impulse coupling

1шт.

56

24610D

WASHER, impulse pawl pin

2шт.

57

30114D

RING, snap, impulse pawl pin

2шт.

58

358006R1

PAWL, impulse, w/weight

2шт.

59

358005R11

HUB, impulse magneto member, w/disc and two pins

2шт.

60

358004R11

MEMBER, impulse, magneto, assembly, composed of (1) hub 358005R11, (2) pawl 358006R1, (2) ring 30114D, (2) washer 24610D

1шт.

61

251555R1

BUTTON

impulse spring end

2шт.

62

47822D

SPRING

impulse coupling

1шт.

63

358007R91

MEMBER, impulse coupling drive

1шт.

64

24603D

WASHER, impulse coupling retainer

1шт.

65

251591R1

WASHER, lock, impulse coupling nut

1шт.

66

47470D

NUT, impulse coupling

1шт.

67

358003R91

DISTRIBUTOR

UNIT, impulse coupling rotating, assembly, composed of (2) button 251555R1, (1) member 358004R91, (1) member 358007R11, (1) spring 47822D

1шт.

57755D

GAGE, breaker point

1шт.

21372D

GREASE, magneto (1 oz. tube) (see note A)

1шт.

359766R91

GREASE, magneto ball bearing (1 oz. tube) (see note A)

1шт.

57314D

KEEPER, magneto rotor magnet (used to protect rotor magnets when the rotor is disassembled from the magneto) (see note A)

1шт.

69398D

VARNISH, electrical insulating (1 pint) (see note A)

1шт.
