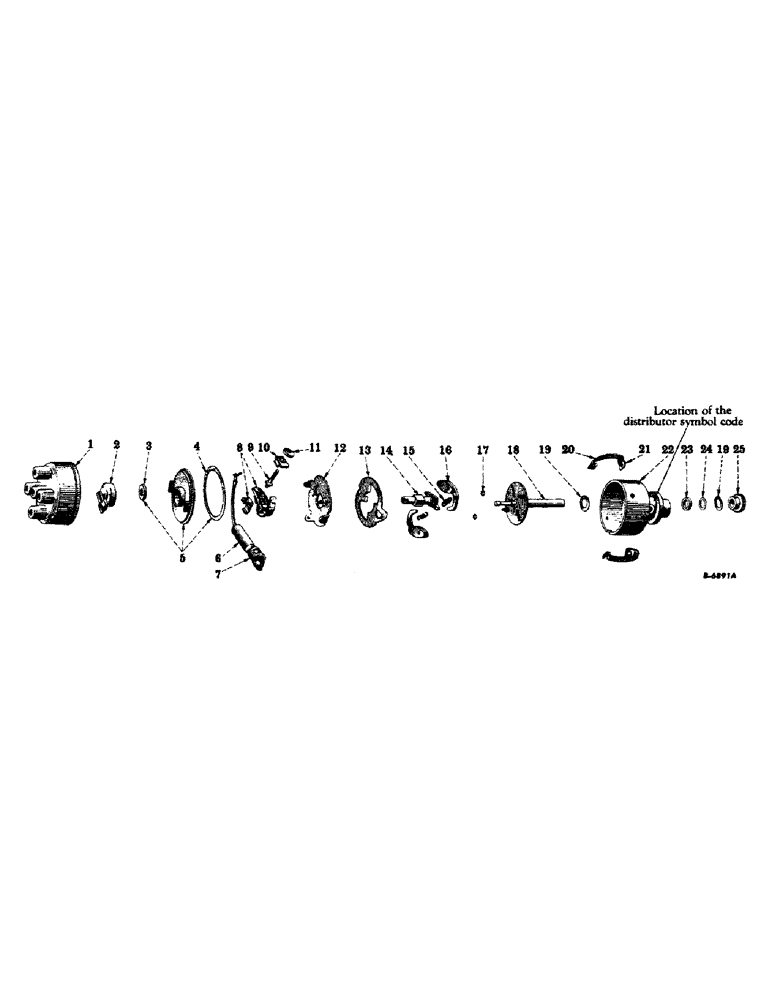

Запчасти Case IH 450-SERIES (170) - ELECTRICAL SYSTEM, DIESEL ENGINE, BATTERY IGNITION DISTRIBUTOR (06) - ELECTRICAL SYSTEMS

353892R91

DISTRIBUTOR

("C" symbol) asssembly (will work for "H" symbol distributor, 356657R91) (see note A)

1шт.

1

351693R92

DISTRIBUTOR,Cap

CAP, distributor

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

felt, breaker cover

1шт.

4

352284R2

GASKET

breaker cover

1шт.

5

353900R11

COVER

breaker, w/seal, 353901R2 and gasket, 352284R2

1шт.

6

353903R92

CONDENSER

1шт.

7

353905R1

CLAMP

condenser

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

slotted-fil-hd., cd-pltd., no. 8-32NC x 3/16"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

8

353172R91

BREAKER

POINT SET, distributor

1шт.

120622

NUT,#8-32

Breaker arm spring #8-32

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

slotted-pan-hd., cd-pltd., no. 8-32NC x 3/16"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, , Breaker arm spring #8

1шт.

21394D

WASHER

stationery point or breaker arm spring

2шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21394D

WASHER

terminal

1шт.

10

353906R1

PLUG

INSULATOR, spring anchor, terminal

1шт.

11

251538R1

WASHER

insulating, terminal

1шт.

12

352277R11

PLATE

breaker

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

slotted-rd-hd., cd-pltd., no. 8-32NC x 3/8"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

353920R1

GUARD

governor weight (see note B)

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

slotted-fil-hd., no-pltd., no. 8-32NC x 3/16"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

355725R91

CAM w/FELT, 355460R1 (see note B)

1шт.

15

358107R91

SPRING

governor (set of two) (see note B)

1шт.

16

353917R91

ARM

weight (see note B)

2шт.

17

352293R1

SHIM

SPACER, weight arm (see note B)

4шт.

18

356659R91

SHAFT, distributor (see note B)

1шт.

18

353930R1

SHAFT, distributor (see note C)

1шт.

19

352298R1

THRUST WASHER

thrust, distributor

2шт.

20

353894R1

VALVE SPRING

SPRING, distributor cap

2шт.

21

353895R1

SUPPORT

distributor cap spring

2шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

slotted-rd-hd., cd-pltd., no. 8-32NC x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

22

353898R11

HOUSING

distributor, w/oil seal, 252739R1, retainer, 353899R1 and plug, 125947

1шт.

125947

STUD

pipe, slotted, cd-pltd., 1/8"

1шт.

23

353899R1

STOP

RETAINER, oil seal, distributor shaft

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

OIL SEAL, distributor shaft

1шт.

25

353902R1

GEAR

distributor

1шт.

354552R1

HARDWARE

PIN, distributor gear

1шт.

355460R1

FELT SEAL

FELT, cam oil hole (see note B)

1шт.
