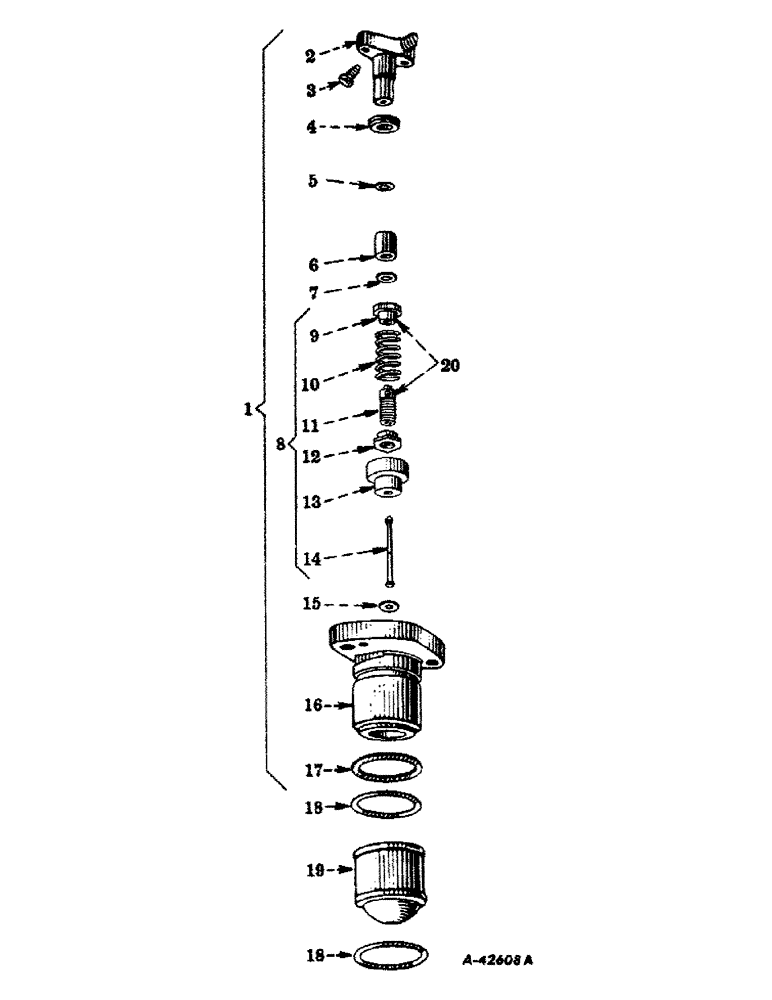

Запчасти Case IH 450-SERIES (094) - DIESEL ENGINE, INJECTION NOZZLE & PRE-COMBUSTION CHAMBER, D-264, 21484 UP, D-281, 501 UP (01) - ENGINE

1

275802R91

NOZZLE, injection, assembly, composed of (1) body 275803R11, (1) fitting 257631R1, (2) gasket 37148D, (1) screen 271648R91, (2) screw 181371, (1) seal 61209DA, (1) seal 250608R1, (1) sleeve 271743R1, (1) valve 275719R91, (1) valve 275634R1

4шт.

2

257631R1

FITTING, nozzle

4шт.

181371

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1-3/8"

8шт.

3

257634R1

VALVE, nozzle bleeder

4шт.

4

250608R1

SEAL

dust, nozzle fitting

4шт.

5

271648R91

SCREEN

nozzle

4шт.

6

271743R1

BEARING

SLEEVE, nozzle valve

4шт.

7

37148D

GASKET, nozzle valve

4шт.

8

275719R91

NOZZLE INJECTION

VALVE, nozzle (.012" valve lift) assembly, composed of (1) screw 271741R2 (NSS), (1) seat 271737R1 (NSS), (1) seat 271740R1, (1) seat 271742R3, (1) spring 276954R1, (1) valve 271738R1

4шт.

9

SEAT, nozzle valve spring, upper (not serviced separately) order ref. no. 20

4шт.

10

276954R1

SPRING, nozzle valve (will work for 271739R1)

4шт.

11

SCREW, nozzle valve stop (not serviced separately) order ref. no. 20)

4шт.

12

271740R1

SEAT, nozzle valve spring, lower (thread)

4шт.

13

271737R1

SEAT, nozzle valve

4шт.

14

VALVE, nozzle (not serviced separately) order valve, ref. no. 8

4шт.

15

37148D

GASKET, nozzle valve sleeve

4шт.

16

275803R11

BODY, nozzle, w/seal, 250608R1 and seal, 61209DA

4шт.

275804R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

SCREW, nozzle body attaching, D-264

8шт.

277232R1

BOLT,Hex, 3/8" - 18 x 2 3/4", Gr 8

SCREW, nozzle body attaching, D-281

8шт.

17

61209DA

SEAL

dust, nozzle body

4шт.

18

260879R4

GASKET

pre-combustion chamber

8шт.

19

260878R1

CHAMBER

pre-combustion

4шт.

20

278008R91

SCREW, nozzle valve stop, w/seat, upper

1шт.

271745R91

NOZZLE INJECTION

PACKAGE, field, open type fuel injection nozzle, composed of (4) gasket 37148D, (1) sleeve 271743R1, (1) spacer 271744R1, (1) valve 271738R11

1шт.
