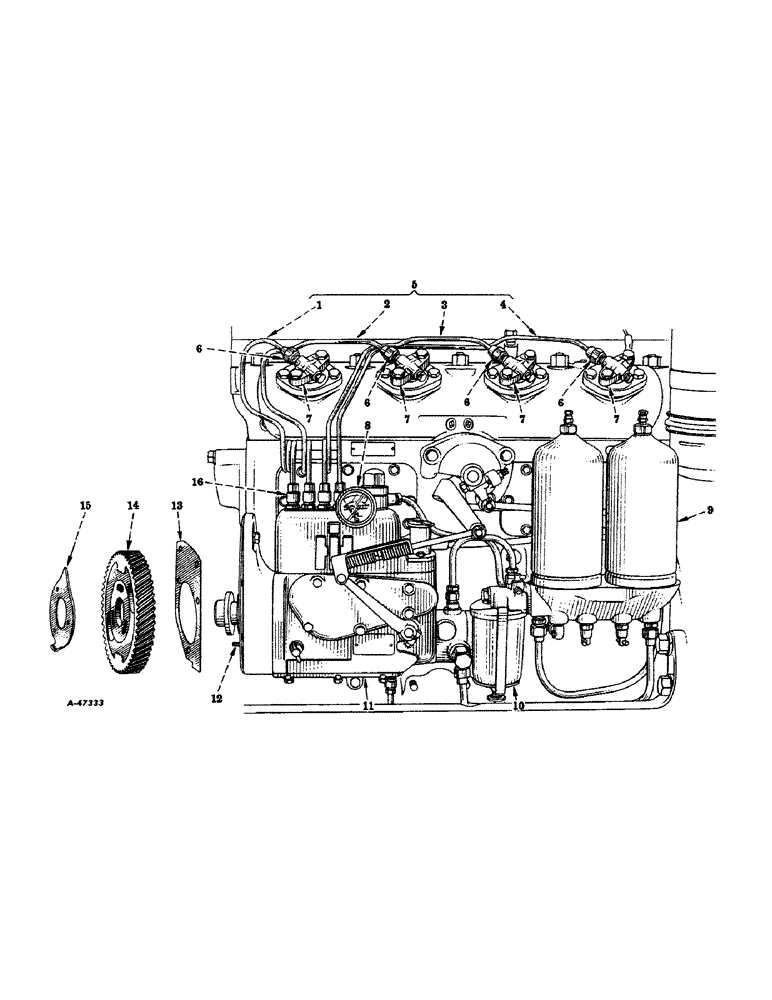

Запчасти Case IH 450-SERIES (090) - DIESEL ENGINE, FUEL INJECTION PUMP CONNECTIONS & PIPES (01) - ENGINE

1

275806R11

PIPE, injection, cylinder no. 1, assembly, D-264, 21481 up, D-281, 501 up, composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 275806R1 (NSS), (2) sleeve 250610R2

1шт.

2

275807R11

PIPE, injection, cylinder no. 2, assembly, D-264, 21481 up, D-281, 501 up, composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 275807R1 (NSS), (2) sleeve 250610R2

1шт.

3

275808R11

PIPE, injection, cylinder no. 3, assembly, D-264, 21481 up, D-281, 501 up, composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 275808R1 (NSS), (2) sleeve 250610R2

1шт.

4

275809R11

PIPE, injection, cylinder no. 4, assembly, D-264, 21481 up, D-281, 501 up, composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 275809R1 (NSS), (2) sleeve 250610R2

1шт.

5

275810R91

PIPE, injection (set of four) D-264, 21481 up, D-281, 501 up, composed of (1) pipe 275806R11, (1) pipe 275807R11, (1) pipe 275808R11, (1) pipe 275809R11

1шт.

6

250617R1

NUT

fuel injection pipe (nozzle end)

4шт.

250610R2

GUARD

SLEEVE, fuel injection pipe

4шт.

7

275802R91

NOZZLE, fuel injection, assembly (refer to "Fuel Nozzle" unit) D-264, 21481 up, D-281, 501 up

4шт.

8

263791R92

INDICATOR, fuel oil pressure

1шт.

9

FILTER, fuel, auxiliary and final (refer to "Auxiliary and Final Fuel Filters" unit)

1шт.

10

251335R91

TRAP, water, assembly (refer to "Water Trap" unit)

1шт.

11

PUMP, fuel injection, "B" type, assembly (refer to "Fuel System" unit)

1шт.

12

260489R1

STUD, injection pump mounting flange

1шт.

260623R1

NUT, injection pump mounting stud

1шт.

13

62939DB

GASKET

fuel injection pump

1шт.

14

8231B

GEAR, fuel injection pump

1шт.

16849R91

SCREW, machine, hex-hd., 3/8-24NF x 2-3/8", w/lock washer

2шт.

15

46584D

INDICATOR, injection pump gear timing

1шт.

425474

SCREW,Hex Hd, 3/8"-24 x 1", w/LW

machine, 3/8-24NF x 1", w/lock washer

3шт.

16

251050R2

NUT

fuel injection pipe (pump end)

4шт.

250610R2

GUARD

SLEEVE, fuel injection pipe

4шт.

59675DA

SEAL

located between pump and crosshead

1шт.
