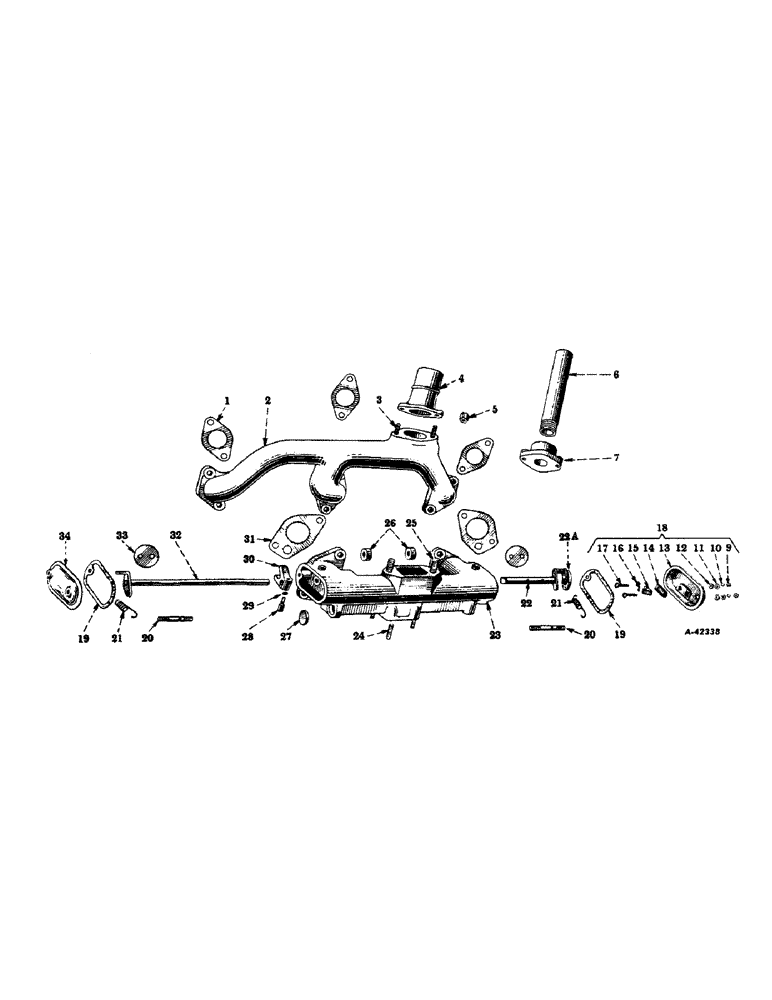

Запчасти Case IH 450-SERIES (079) - DIESEL ENGINE, MANIFOLD AND EXHAUST PIPE (01) - ENGINE

1

52649D

GASKET

exhaust manifold

3шт.

2

8277DX

MANIFOLD, exhaust, w/two studs, 40202D

1шт.

260872R1

NUT

exhaust manifold stud

6шт.

260870R1

STUD

exhaust manifold (in cylinder head)

6шт.

3

46202D

STUD

exhaust pipe

2шт.

4

361385R1

PIPE

exhaust

1шт.

5

64504DA

NUT, exhaust pipe stud

2шт.

6

361384R1

PIPE

exhaust (see note A)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

364166R1

ADAPTER, exhaust pipe, (see note A)

1шт.

9

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

10

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, lock, cd-pltd., external-tooth, no. 10

2шт.

11

263329R1

WASHER, switch contact blade terminal (see note B)

2шт.

12

263326R1

INSULATOR, terminal (see note B)

2шт.

13

COVER, intake manifold, front end (order 263311R12)

1шт.

14

263325R2

STRIP, switch blade mounting

1шт.

15

263328R1

BLADE, switch contact (for tractors equipped with battery ignition)

1шт.

15

263358R1

BLADE, magneto grounding (for tractors equipped with magneto ignition)

1шт.

16

263327R1

BLADE, switch contact

1шт.

17

263330R1

SCREW,Slotted Pan Hd, #10-32 x 1"

switch contact blade terminal (see note B)

2шт.

17

263356R1

SCREW, switch contact blade terminal (for tractors equipped with magneto ignition)

1шт.

120614

NUT,Hex, #10 - 32

NUT, (See note B) #10-32

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, lock, cd-pltd., external-tooth, no. 10 (see note B)

2шт.

18

263311R12

1шт.

COVER, intake manifold, front end, assembly (for tractors equipped with battery ignition) composed of (1) blade 263327R1, (1) blade 263328R1, (1) cover 263311R1 (NSS), (2) insulator 263326R1, (2) nut 120614, (2) screw 263330R1, (1) strip 263325R2, (2) washer 138479, (2) washer 263329R1

1шт.

18

263345R92

1шт.

COVER, intake manifold, front end, assembly (for tractors equipped with magneto ignition) composed of (1) blade 263327R1, (1) blade 263358R1, (1) cover 263311R1 (NSS), (1) insulator 263326R1, (2) nut 120614, (1) screw 263330R1, (1) screw 263356R1, (1) sleeve 263357R1, (1) strip 263325R2, (2) washer 138479, (1) washer 263329R1

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

446186

WASHER,1/4" x 1/2" x .049"

WASHER, cap., 1/4" I.D. x 1/2" O.D. x no. 18 ga.

1шт.

19

52520DB

GASKET

intake manifold end cover

2шт.

20

263318R1

STUD, intake manifold control spring

2шт.

79051R1

LOCK NUT,5/16"-24, G5

NUT, elastic stop, 5/16-24NF

2шт.

54909H

GASKET

WASHER, cap, 21/64" I.D. x 5/8" O.D. x no. 18 ga.

2шт.

21

56107D

SPRING, intake manifold control

2шт.

22

263324R93

SHAFT and CONTACT, manifold, front, w/two eyelets, 188523 and one eyelet, 188664

1шт.

188523

EYELET, plain, brs., 1/8 x 7/32"

2шт.

188664

WASHER

EYELET, plain, brs., 1/4 x 7/32"

1шт.

22a

265913R91

DISC and contact plate, w/eyelet, 188664 and two eyelets, 188523

1шт.

23

263309R13

1шт.

MANIFOLD, intake, assembly, composed of (1) lever 52654D, (1) manifold 263309R1 (NSS), (1) nut 103024, (2) nut 220065, (1) pin 42739DA, (2) seal 53083D, (2) screw 102392, (4) screw 228148, (1) shaft 52836DX, (1) shaft 263324R93, (2) spring 56107D, (2) stud G1988, (4) stud 50705D, (2) stud 263318R1, (2) valve 52653D, (1) washer 114604

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

260872R1

NUT

intake manifold stud

4шт.

102392

WASHER

SCREW, set, hdls., oval-pt., 5/16-18NC x 1"

2шт.

260870R1

STUD

intake manifold (in cylinder head)

4шт.

24

50705D

STUD

carburetor

4шт.

25

G1988

STUD

air cleaner pipe

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

26

53083D

SEAL, intake manifold control shaft

2шт.

27

41-16

PLUG,Exp, 1"

expansion intake manifold, 1"

2шт.

28

42739DA

STUD

PIN, intake manifold control lever

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

29

114604

LOCK WASHER,Ext Tooth, 1/4"

WASHER, lock, intake manifold control lever pin

1шт.

30

52654D

LEVER, intake manifold control (optional with 263030R91)

1шт.

30

263030R91

LEVER, intake manifold control (optional with 52654D)

1шт.

31

52650DC

MANIFOLD GASKET

intake manifold

2шт.

32

52836DX

SHAFT, intake manifold control, rear, w/lever

1шт.

33

52653D

PLATE, intake manifold control shaft

2шт.

228148

SHIELD

SCREW, rd-hd., no. 8-32NC x 3/8"

4шт.

34

263312R1

COVER, intake manifold, rear end

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

446186

WASHER,1/4" x 1/2" x .049"

WASHER, cap, 1/4" I.D. x 1/2" O.D. x no. 18 ga.

1шт.

263308R91

CLIP, cable, rubber coated (on intake manifold)

1шт.

446211

WASHER, plain, 7/16" I.D. x 7/8" O.D. x 1/16"

1шт.

263357R1

SLEEVE, grounding, magneto (for tractors equipped with magneto ignition)

1шт.
