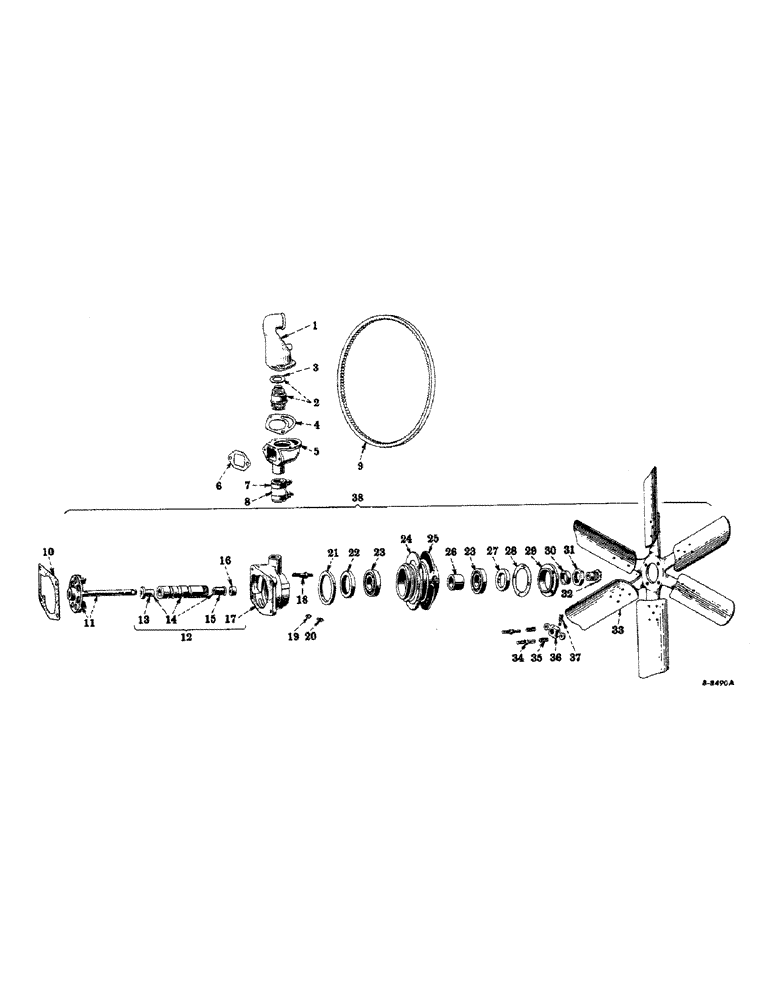

Запчасти Case IH 450-SERIES (076) - DIESEL ENGINE, FAN, THERMOSTAT AND WATER PUMP (01) - ENGINE

1

275814R1

HOUSING, thermostat (will work for 256066R11)

1шт.

103878

PLUG

pipe, plain, S., sq-hd., 1/4" (used with 256066R11)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

261514R92

THERMOSTAT, (165deg. - 190deg.) w/seal, 254753R1 (will work for 33814DA)

1шт.

3

254753R1

SEAL

thermostat (not used with 33814DA)

1шт.

4

45984D

GASKET

thermostat housing

1шт.

5

8174D

ELBOW, water outlet

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

45986D

GASKET

water outlet elbow

1шт.

7

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

CLAMP, thermostat by-pass hose

2шт.

8

278541R1

HOSE, thermostat by-pass, 1-1/2" I.D. x 2-3/8" , 3 ply

1шт.

9

277448R1

BELT,0.91" W

Fan and water pump (Will work for 69490DA and 16131DA)

1шт.

10

45981D

GASKET

water pump body

1шт.

11

6345DAX

IMPELLER

w/shaft and thrust washer

1шт.

12

45980DA

BODY

water pump, w/sleeve, 45982DXA

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

13

20303DA

THRUST RING

BUSHING, thrust, water pump shaft

1шт.

14

45982DXA

SLEEVE

water pump shaft, w/bushing, 20303DA and bushing, 24017D

1шт.

15

24017D

BEARING

BUSHING, water pump shaft

1шт.

16

50790D

PACKING

water pump

1шт.

17

BODY, water pump (order 45980DA)

1шт.

18

47877D

STUD, generator

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

19

271409

PIN

lubrication, straight, 1/8" (water pump bearing) (optional with 138322H)

1шт.

19

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Water pump bearing) (optional with 271409) 1/8"-27 x .66 lg

1шт.

20

277802

RETAINER COLLAR

lubrication, straight, 1/8" (water pump shaft) (optional with 138322H)

1шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Water pump shaft) (optional with 271409) 1/8"-27 x .66 lg

1шт.

21

20300D

WASHER

felt, water pump

1шт.

22

20290D

OIL SEAL

OIL SEAL, water pump, rear (optional with 357770R91 and 357774R91)

1шт.

22

357770R91

SEAL

OIL SEAL, water pump, rear (optional with 20290D and 357774R91)

1шт.

22

357774R91

SEAL

OIL SEAL, water pump, rear (optional with 20290D and 357770R91)

1шт.

23

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, water pump

2шт.

24

8023DX

HUB, fan and generator pulley, w/oil seal, 20290D

1шт.

25

2370DBX

FLANGE

fan and water pump pulley, w/nut, 114502 and screw, 102831

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

102831

SCREW

set, hdls., dog-pt., 5/16-18NC x 7/8"

1шт.

26

45993D

SPACER

water pump bearing

1шт.

27

20289D

SEAL

OIL SEAL, water pump, front

1шт.

28

21839DB

GASKET

water pump bearing retainer

1шт.

29

20306DX

RETAINER

water pump bearing, w/oil seal, 20289D

1шт.

30

20293D

SLEEVE

water pump bearing lock

1шт.

31

20299D

NUT

water pump bearing clamp

1шт.

32

20296D

GLAND

water pump packing

1шт.

33

271665R91

FAN

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

20301D

STUD

water pump driving

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

35

G3792

SPRING

water pump driver

2шт.

36

20585D

BLOCK DRIVER

DRIVER, water pump

1шт.

37

20586D

PIN

water pump driver

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

55347DA

1шт.

PUMP, water, assembly, composed of (2) bearing ST205A, (1) body 45980DA, (1) driver 20585D, (2) fitting 119512, (1) flange 2370DBX, (1) gasket 21839DB, (1) gland 20296D, (1) hub 8023DX, (1) impeller 6345DAX, (1) nut 20299D, (1) nut 103025, (1) packing 27644DA (NSS), (1) pin 20586D, (1) retainer 20306DX, (1) sleeve 20306DX, (1) spacer 45993D, (2) spring G3792, (2) stud 20301D, (2) washer 55358D, (3) washer 103320, (1) washer 20300D

1шт.

38

271748R91

PUMP, 55347DA, w/fan, 271665R91, two screws, 179818 and two washers, 103320

1шт.

355140R92

PACKAGE, REPAIR

1шт.

PACKAGE, service, water pump, consists of (2) bearing ST205A, (1) bushing 20303DA, (1) bushing 24017D, (1) gasket 21839DB, (1) gasket 45981D, (1) gland 20296D, (1) impeller, assembly 6345DAX, (1) nut 20299D, (1) oil seal 20289D, (1) oil seal 20290D, (1) packing 27644DA (NSS), (1) pin 20586D, (2) spring G3792, (2) stud 20301D, (1) washer 20300D

1шт.
