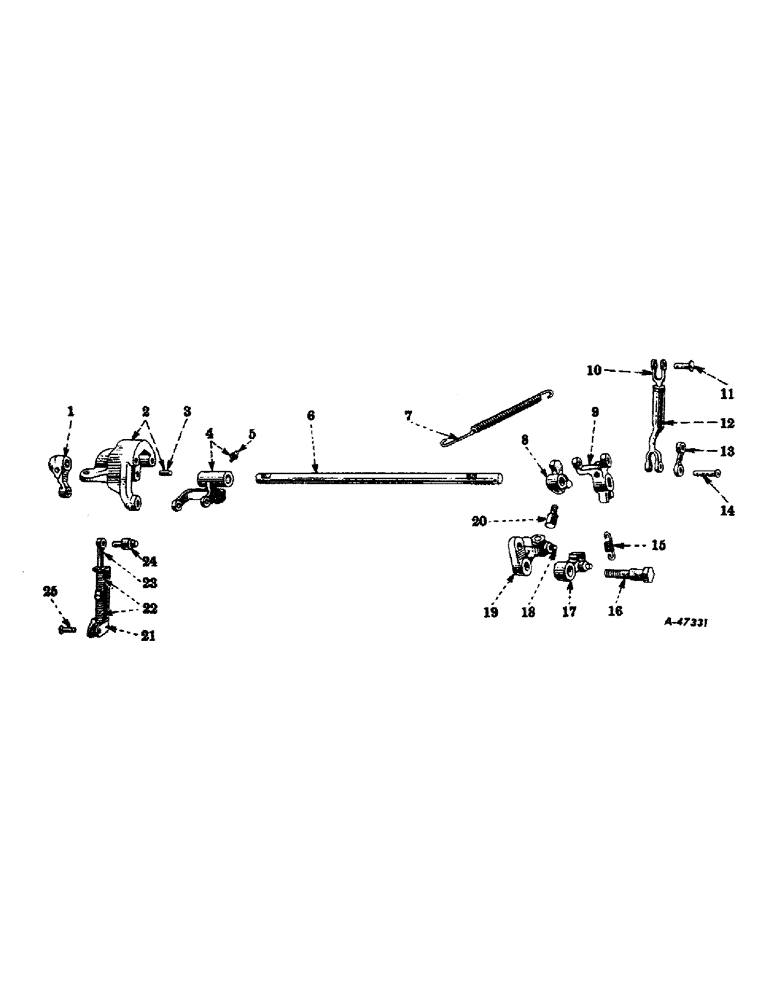

Запчасти Case IH 450-SERIES (074) - DIESEL ENGINE, STARTING MECHANISM AND GOVERNOR CONTROL (01) - ENGINE

1

55337D

LEVER, operating, control cross shaft

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

20586D

PIN

control cross shaft operating lever

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

261017R94

BRACKET, control, cross shaft, w/pin, 19328R1

1шт.

103026

NUT,3/8"-24, G5

D-264, 11596 to 14456 3/8"-24, G5

1шт.

218437

NUT, hex., jam, 5/16-18NC

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4", D-264, 14457 up, D-281, 501 up

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

102393

WASHER

SCREW, set, slotted, hdls., oval-pt., 5/16-18NC x 1-1/4"

1шт.

264352R1

STUD, cross shaft bracket, D-264, Serial Range: 11596-14456

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

19328R1

LOCK PIN,3/8" x 3/4", Slotted

Friction control disc 3/8" x 3/4", Slotted

1шт.

4

271666R11

LEVER, governor operating, w/fitting 271416

1шт.

5

271416

FITTING

lubrication, 67-1/2deg. elbow, 1/8" (optional with 271284)

1шт.

5

271284

YOKE

lubrication, 67-1/2deg. elbow, 1/8" (optional with 271416)

1шт.

6

52173D

SHAFT, control cross

1шт.

7

52176DC

SPRING

control cross shaft return

1шт.

8

52626DA

LEVER, control, cross shaft jaw (optional with 262607R2)

1шт.

8

262607R2

LEVER, control, cross shaft jaw (optional with 52626DA)

1шт.

9

52625D

JAW, control cross shaft

1шт.

218437

NUT, jam, hex., 5/16-18NC

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

102833

PIN

SCREW, set, hdls., fl-pt., 5/16018NC x 1-1/4"

1шт.

Q1537

WASHER

plain, 21/32" I.D. x 1" O.D. x no. 12 ga.

1шт.

10

56104D

YOKE, adjusting, starting valve cross shaft operating rod (optional with 56391DX and 262561R11)

1шт.

10

56391DX

ADJUSTABLE CLEVIS

YOKE, adjusting, starting valve cross shaft operating rod (optional with 56104 and 262561R11)

1шт.

10

262561R11

YOKE, adjusting, starting valve cross shaft operating rod (optinal with 56104D and 56391DX)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

11

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Starting valve cross shaft operating rod yoke 5/16" x .940", HDN

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

12

258345R92

ROD, operating, starting valve cross shaft (optional with 262563R92)

1шт.

12

262563R92

ROD, operating, starting valve cross shaft (optional with 258345R92)

1шт.

13

52748D

LINK, carburetor control

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

95-11028

WASHER,1/4"

9/32" I.D. x 5/8" O.D. x no. 16 ga.

1шт.

14

51068D

PIN, starting valve cross shaft operating rod yoke

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

15

52624D

SPRING

control cross shaft latch

1шт.

16

52622D

PIN, control cross shaft latch

1шт.

17

52621DX

LATCH, control cross shaft, w/pin, 52623D

1шт.

18

52623D

PIN, control cross shaft latch spring

2шт.

19

8372DAX

BRACKET, control cross shaft latch, pin, 52623D

1шт.

218438

NUT, hex., jam, 3/8-16NC

1шт.

NLS

NO LONGER SERVICED

1шт.

106852

SCREW, set, fl-pt., 3/8-16NC x 1-1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20

20586D

PIN

control cross shaft jaw lever

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-18NC

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

261690R11

TRUNNION, governor control lever

1шт.

22

261650R1

SPRING, governor control rod

2шт.

23

62955DX

ROD, governor control

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

24

54971D

PIN, governor control lever

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11034

WASHER,1/4"

governor control rod pin

1шт.

25

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Governor lever 5/16" x .940", HDN

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.
