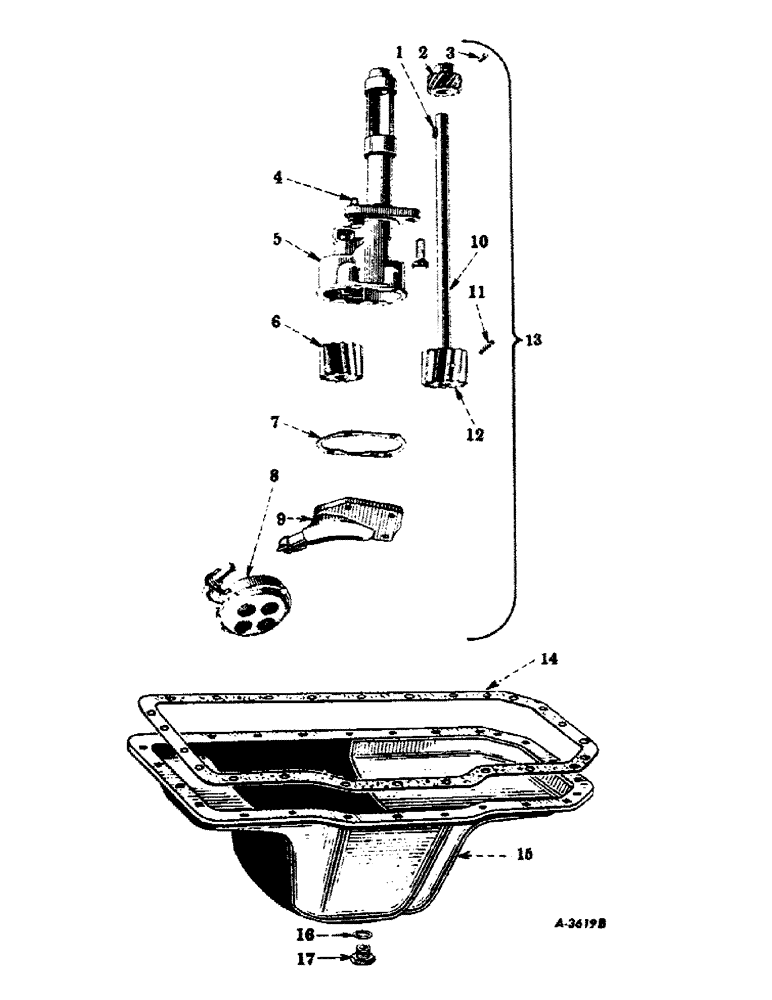

Запчасти Case IH 450-SERIES (072) - DIESEL ENGINE, CRANKCASE OIL PAN AND LUBRICATING OIL PUMP (01) - ENGINE

1

106750

KEY

woodruff, no. 6

2шт.

2

264056R1

PINION, lubricating oil pump drive

1шт.

3

622258R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, , lubricating oil pump drive pinion 1/4" x 1 1/8", Slotted

1шт.

4

10961D

SCREW, cap, lubricating oil pump body

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

68252D

WIRE, soft iron, 3/32 x 10"

1шт.

5

52023DA

BODY, lubricating oil pump, w/idler gear shaft

1шт.

6

52027DB

GEAR, idler, lubricating oil pump

1шт.

7

51044DA

GASKET

lubricating oil pump cover

1шт.

8

56108D

FILTER SCREEN

SCREEN, lubricating oil pump (Floto)

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

9

8211DA

COVER, lubricating oil pump

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

255091R21

SHAFT, lubricating oil pump drive, w/pins, 622258R1 and 553686R1

1шт.

11

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, , lubricating oil pump body gear 3/16" x 1 1/2", Slotted

1шт.

12

260718R21

GEAR, lubricating oil pump body (12 teeth), w/pin, 553686R1

1шт.

13

52022DB

1шт.

PUMP, lubricating oil, assembly, composed of (1) body 52023DA, (1) cover 8211D, (1) gasket 51044D, (1) gear 260718R21, (1) gear 52027DB, (2) key 106750, (1) pin, 622258R1, (1) pin 103386, (1) pinion 264056R1, (1) screen 56108D, (4) screw 179839, (1) shaft 52025DA (NSS), (4) washer 103321

1шт.

14

52001D

GASKET

crankcase oil pan

1шт.

15

57554DB

PAN, oil, crankcase, w/gasket, 59658D and plug, 261750R1

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

23шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

25шт.

16

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET, oil pan drain plug

1шт.

17

261750R1

PLUG

drain, crankcase oil pan

1шт.
