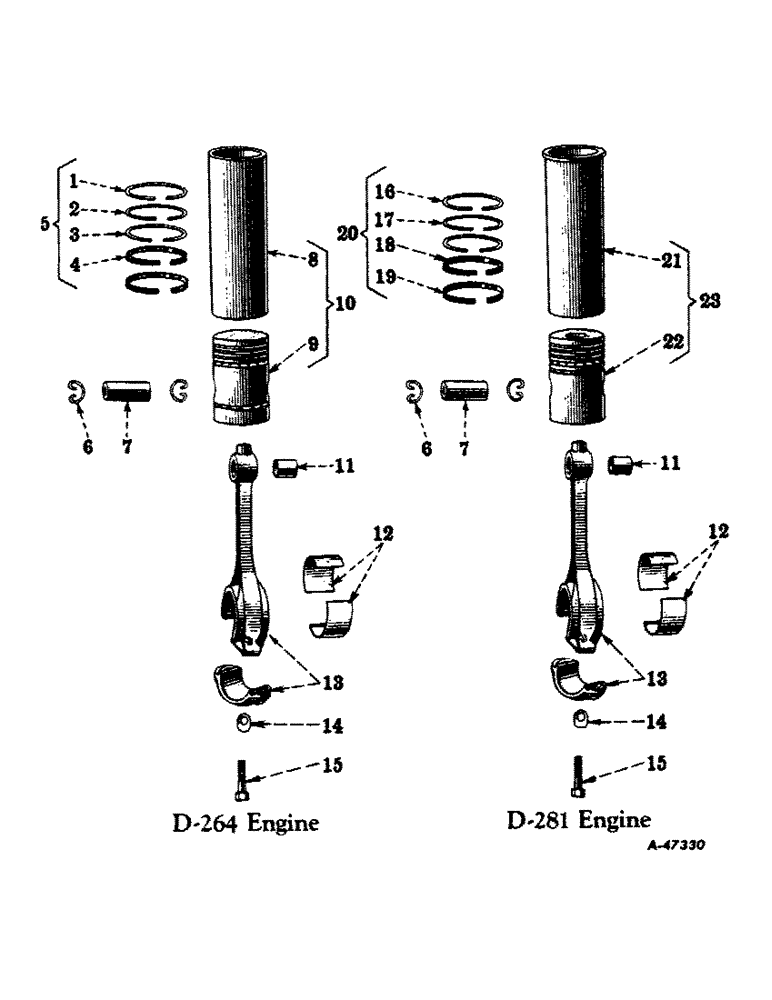

Запчасти Case IH 450-SERIES (069) - DIESEL ENGINE, CONNECTING RODS AND SLEEVE SETS (01) - ENGINE

1

264326R3

RING

compression, piston (top or first groove) (A only)

4шт.

2

264325R2

RING

compression, piston (second groove) (A only)

4шт.

3

264324R2

RING

compression, piston (third groove) (A only)

1шт.

4

264323R2

RING

oil, regulating, piston (fourth and fifth groove) (A only)

8шт.

5

264414R92

PISTON RING SET

RING SET, piston (consists of twelve compression rings and eight oil regulating rings) (A only)

1шт.

6

45739D

RING

piston pin retainer

8шт.

7

254955R2

PIN

piston (standard) (optional with 264041R1)

4шт.

7

264041R1

PIN,33.34mm OD x 82.55mm L

piston (standard) (optional with 254955R2)

4шт.

7

254956R2

PIN, piston (.005" oversize) (optional with 264042R1)

4шт.

7

264042R1

PIN, piston (.005" oversize) (optional with 254956R2)

4шт.

8

264322R1

SLEEVE

cylinder (A only)

4шт.

9

264320R2

PISTON

(A only)

4шт.

10

264338R94

SLEEVE, cylinder, w/piston, assembly, composed of (1) pin 254955R2, (1) piston 264320R2, (2) ring 45739D, (1) ring 264326R2, (1) ring 264325R2, (1) ring 264324R2, (2) ring 264323R2, (1) sleeve 264322R1, (A only)

4шт.

10

264339R94

SLEEVE ASSY

SLEEVE SET, (consists of four sleeves, w/pistons and rings, 264338R94) (A only)

1шт.

11

45748DAR

BUSHING,33.02mm ID x 35.991mm OD x 38.73mm L

BUSHING, piston pin

4шт.

12

52164DAX

BEARING SET,82.58mm ID x 87.68mm OD x 53.16mm W

connecting rod (2 halves) (standard)

4шт.

12

263201R11

KIT

BEARING, connecting rod (2 halves) (.002" undersize)

4шт.

12

52165DAX

BEARING SET

connecting rod (2 halves) (.030" undersize)

4шт.

12

263207R11

BEARING, connecting rod (2 halves) (.032" undersize)

4шт.

13

253213R11

ROD, connecting, assembly, composed of (2) bolt 253215R1, (1) bushing 45748DAR, (1) cap 253214R1 (NSS), (2) lock 253216R1, (1) rod 253213R1 (NSS)

4шт.

14

253216R1

RETAINER

LOCK, connecting rod bolt

8шт.

15

253215R1

BOLT, connecting rod

8шт.

16

277072R1

RING

compression, piston (top or first groove) (B only)

4шт.

17

277073R1

RING

compression, piston (second and third groove) (B only)

8шт.

18

277074R1

RING

oil, regulating, piston (fourth groove) (B only)

4шт.

19

277075R1

RING, oil, regulating, piston (fifth groove) (B only)

4шт.

20

277079R91

RING

SET, piston (consists of twelve compression rings and eight oil regulating rings) (B only)

1шт.

21

277076R1

SLEEVE

cylinder (B only)

4шт.

22

277071R1

PISTON ASSY.

PISTON (B only)

4шт.

23

277077R91

RING, SET

SLEEVE, cylinder, w/piston, assembly, composed of (1) pin 254955R2, (1) piston 277071R1, (2) ring 45739D, (1) ring 277072R1, (2) ring 277073R1, (1) ring 277074R1, (1) ring 277075R1, (1) sleeve 277076R1, (B only)

4шт.

23

277078R91

SLEEVE ASSY

SLEEVE SET, (consists of four sleeves, w/pistons and rings, 277077R91)

1шт.
