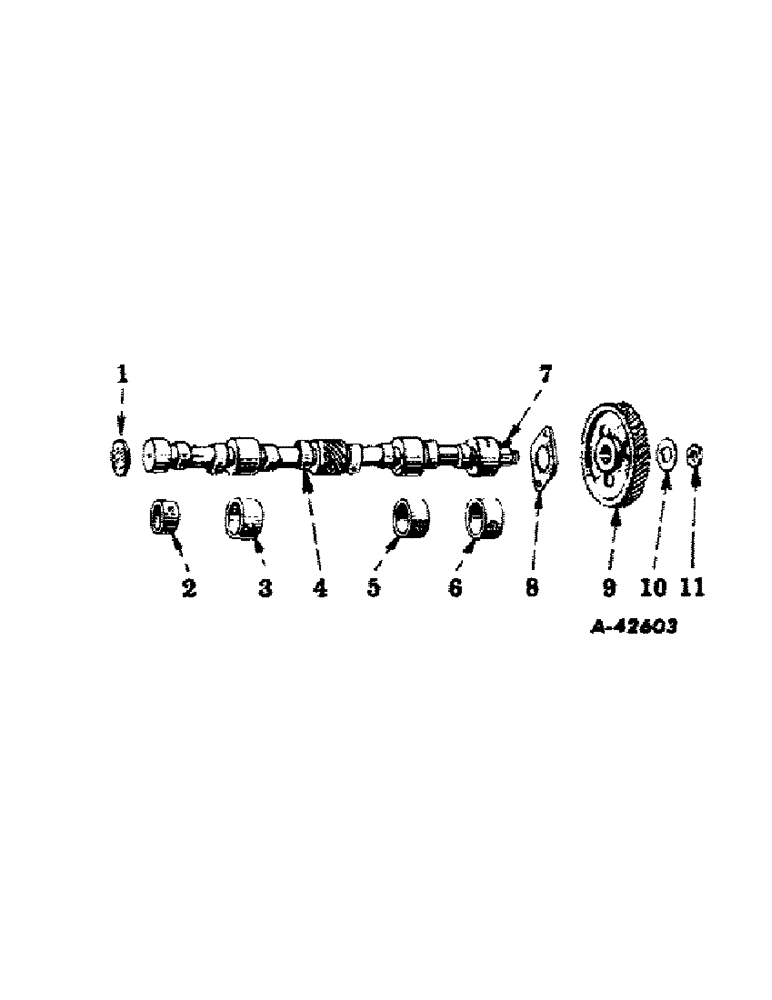

Запчасти Case IH 450-SERIES (065) - DIESEL ENGINE, CAMSHAFT AND RELATED PARTS (01) - ENGINE

1

41-3034

PLUG,Exp, 2 1/8"

expansion, 2-1/8" (camshaft rear bearing)

1шт.

2

53424DA

CAMSHAFT BEARING,1.8715" ID x 2" OD x 1.0625"

camshaft, rear

1шт.

3

51974DAR

CAMSHAFT BEARING,2.3165" OD x 1.375"

camshaft, no. 3

1шт.

4

52009DA

CAMSHAFT

1шт.

5

51973DAR

CAMSHAFT BEARING,2.4415" OD x 1.375"

camshaft, no. 2

1шт.

6

51972DAR

BUSHING

BEARING, camshaft, front

1шт.

7

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, woodruff, type "A"

1шт.

8

50948DA

PLATE, thrust, camshaft

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

8310DA

GEAR, camshaft (54 teeth)

1шт.

10

16025D

SHIM

LOCK, camshaft gear nut

1шт.

11

261285R1

NUT, camshaft gear

1шт.
