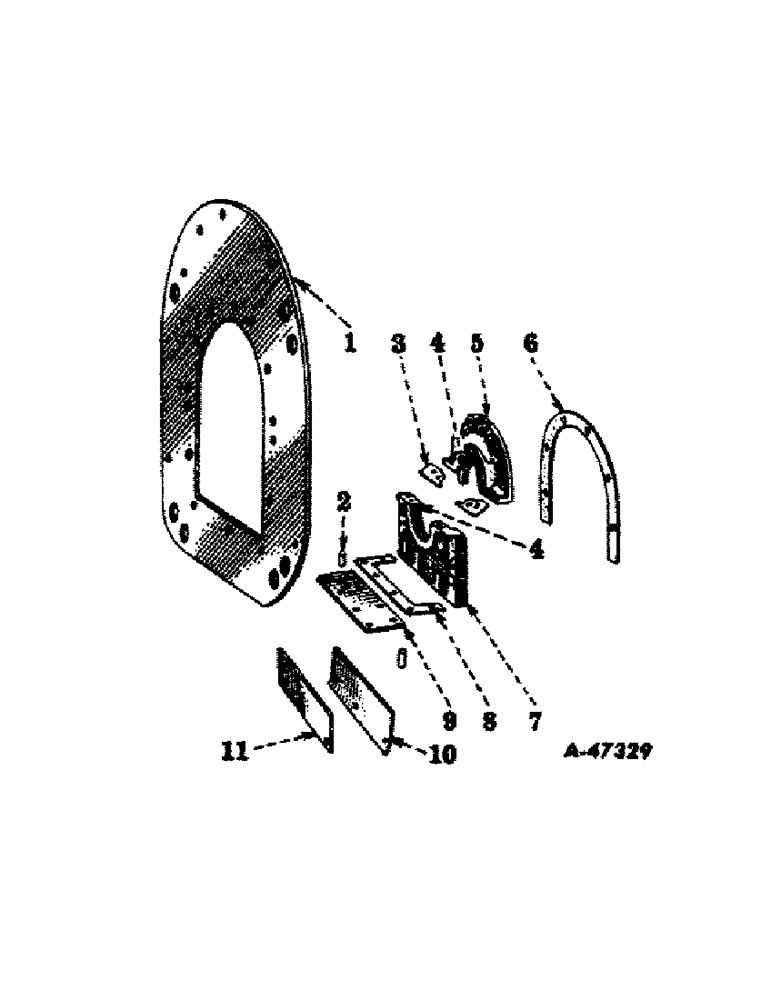

Запчасти Case IH 450-SERIES (065[A]) - DIESEL ENGINE, ENGINE REAR SUPPORT AND CRANK SHAFT REAR OIL SEAL (01) - ENGINE

1

60844DA

SUPPORT, engine, rear

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

9шт.

51971D

STUD

engine rear support

9шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

2

268770R2

PLUG

crankcase oil seal retainer

2шт.

3

259530R2

GASKET

crankshaft rear oil seal retainer (between halves) D-264, Serial Range: 11596-13481

2шт.

3

271702R1

GASKET

crankshaft rear oil seal retainer (between halves) D-264, 13482 up, D-281, 501 up

2шт.

4

260001R2

FELT

crankshaft rear oil seal retainer, D-264, Serial Range: 11596-13481

2шт.

4

271794R91

OIL RESERVOIR

OIL SEAL, crankshaft, rear, D-264, 13482 up, D-281, 501 up

2шт.

5

6363DD

RETAINER, crankshaft rear oil seal, upper (order 271995R91) D-264, Serial Range: 11596-13481

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 2-3/4"

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 16 ga.

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

271792R1

RETAINER, crankshaft rear oil seal upper, D-264, 13482 up, D-281, 501 up

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

46240DB

GASKET

crankshaft rear oil seal retainer

1шт.

7

6388DD

RETAINER, crankshaft rear oil seal, lower (order 271995R91) D-264, Serial Range: 11596-13481

1шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 16 ga.

2шт.

7

271793R1

RETAINER, crankshaft rear oil seal, lower, D-264, 13482 up, D-281, 501 up

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

5198OD

GASKET, crankcase oil seal retainer plate

1шт.

9

51979DAXA

PLATE, crankcase oil seal retainer

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

46136D

SEAL

SEAL, dust, crankcase, rear

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 5/8"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

46137D

SEAL

crankcase rear dust seal

1шт.

271995R91

1шт.

PACKAGE, service, crankshaft rear oil seal (will work for 6363DD and 6388DD) D-264, 11596 to 13841, consists of (1) gasket 46137D, (1) gasket 46240D, (1) gasket 51980D, (1) gasket 52001D, (2) gasket 271702R1, (2) oil seal 271794R91, (2) plug 268770R2, (1) retainer 271792R1, (1) retainer 271793R1, (6) screw 179842, (2) screw 186282, (8) washer 103321

1шт.
