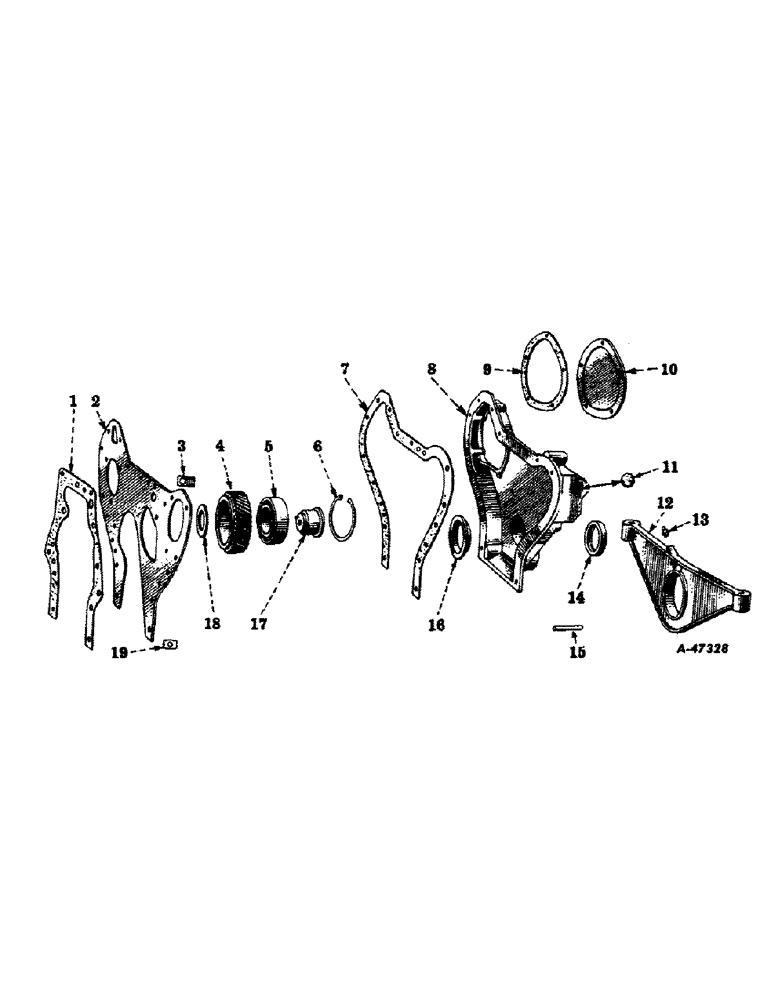

Запчасти Case IH 450-SERIES (063) - DIESEL ENGINE, CRANKCASE FRONT COVER, FRONT ENGINE SUPPORT (01) - ENGINE

1

261218R3

GASKET

GASKET, crankcase front plate

1шт.

2

261221R31

PLATE, front, crankcase, w/lock, 46250D, nut, 264723R1 and rivet, 104065

1шт.

264723R1

NUT, spline

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

4шт.

3

46250D

LOCK, crankcase front plate screw

1шт.

104065

RIVET, rd-hd., 3/16 x 1/4"

1шт.

4

264664R1

GEAR, idler

1шт.

5

264663R91

BEARING, ROLLER, CYL,1.8125" ID x 3.125" OD x 1.6319"

idler gear (optional with 266635R91)

1шт.

5

266635R91

BEARING

idler gear (optional with 264663R91)

1шт.

6

252862R1

RING

snap, idler gear

1шт.

7

261219R2

GASKET

front cover

1шт.

8

261215R12

COVER, crankcase, front, assembly, composed of (1) deflector 264363R1, (1) oil seal 258511R91, (1) pointer 260119R1, (1) plug 172558

1шт.

NLS

NO LONGER SERVICED

4шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

13шт.

9

46254DA

GASKET

fuel injection pump gear cover

1шт.

10

46253D

COVER, fuel injection pump gear

1шт.

179812

GEAR

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

1033400

TUBE

WASHER, plain, 11/32" ID x 11/16" OD x no. 16 ga.

5шт.

11

172558

PLUG,Exp, 1 1/4"

expansion, 1-1/4"

1шт.

12

60845D

SUPPORT, engine, front

1шт.

102637

NUT,1/2"-13, G5

2шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

2шт.

48384D

SHIM, engine front support (heavy)

2шт.

48385D

SHIM

engine front support (light)

1шт.

51693D

BAR

WASHER, bevel, engine front support

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Front engine support) (optional with 271409) 1/8"-27 x .66 lg

1шт.

13

277802

RETAINER COLLAR

lubrication, straight, 1/8" (front engine support) (optional with 128322H)

1шт.

14

258511R91

OIL SEAL

OIL SEAL, crankshaft, front

1шт.

15

260119R1

POINTER, timing

1шт.

16

264363R1

DEFLECTOR, oil, crankshaft, front

1шт.

17

364661R31

SHAFT, idler gear, w/pin, 18400R1

1шт.

256820R1

BOLT, idler gear shaft

1шт.

119254

SLOTTED NUT,1/2"-20, G5, Thk

NUT, slt., hex., 1/2-20NF

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

18400R1

LOCK PIN,3/16" x 5/8", Slotted

PIN, 3/16" x 5/8", Slotted

1шт.

263561R2

WASHER, idler gear shaft bolt

1шт.

18

264662R2

SPACER, idler gear shaft

1шт.

19

254489R1

LOCK

crankcase front plate screw

4шт.
