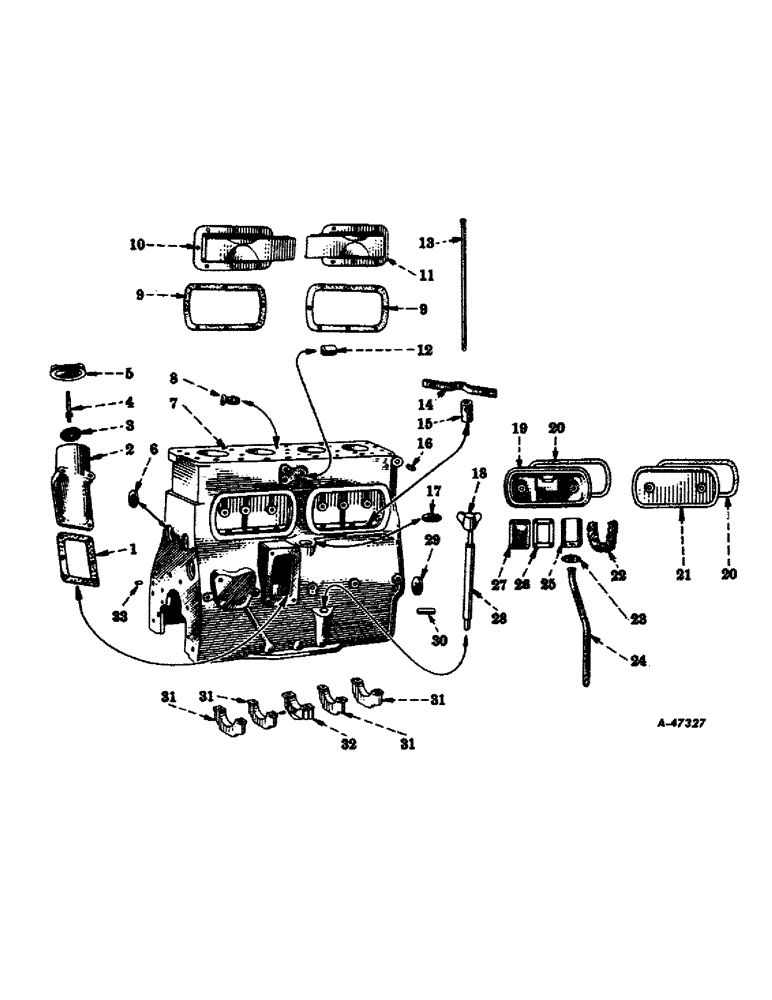

Запчасти Case IH 450-SERIES (059) - DIESEL ENGINE, CRANKCASE AND RELATED PARTS (01) - ENGINE

1

42733DB

SEAL

GASKET, oil filler body

1шт.

2

8355D

BODY, oil filler

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

50411D

SCREEN, oil filler

1шт.

4

28797D

STUD, oil filler cap

1шт.

220066

NUT, hex., 3/8-16NC

1шт.

5

4819D

CAP, oil filler

1шт.

6

256658R1

PLUG

expansion, brz., 1-3/4" (crankcase rear expansion plug)

2шт.

7

264347R51

1шт.

CRANKCASE, assembly, composed of (1) bearing 53424DA, (1) bearing 51972DAR, (1) bearing 51973DAR, (1) bearing 51974DAR, (2) bushing 50827DA, (1) cap 8282DB (NSS), (4) cap 8283BD (NSS), (1) cork 104492, (1) crankcase 264347R5 (NSS), (2) dowel 25086DA, (2) dowel 52605D, (1) pin 50826D, (5) plug 50410DA, (2) plug 103865, (1) plug 126045, (1) plug 172580, (1) plug 172593, (4) plug 256658R1, (1) plug 264475R1, (1) plug 268996R1, (8) screw 275688R1, (2) screw 275816R1, (1) sleeve 266600R1, (1) stud 272799R1, (18)

1шт.

NLS

NO LONGER SERVICED

CORK, no. 6 std., 9/16 x 3/4 x 15/16" (crankcase locating hole plug)

2шт.

103865

PLUG, pipe, sq-hd., CI, 1/8"

2шт.

3066422R1

PLUG

pipe, csk-hdls., 3/8"

1шт.

268996R1

PLUG

pipe, rear oil galley, 3/8" (solder dipped)

1шт.

50410DA

PLUG

oil header, 1/8"

5шт.

7

264346R98

CRANKCASE, w/pistons and sleeves, assembly D-264, composed of (1) crankcase 264347R51, (4) pin 254955R2, (4) piston 264320R2, (8) ring 45739D, (8) ring 264323R2, (4) ring 264324R2, (4) ring 264325R2, (4) ring 264326R3, (4) sleeve 264322R1 (NSS)

1шт.

8

31729D

VALVE

COCK, drain, crankcase water

1шт.

9

51316DB

CYLINDER HEAD GASKET

crankcase water header

2шт.

10

264360R12

HEADER, crankcase water, rear, w/sheet steel cover (order 272804R91) D-264, Serial Range: 11596-20406

1шт.

179814

SPACER

8шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x no. 16 ga.

8шт.

10

272804R91

HEADER, crankcase, water, rear, assembly (will work for 264360R12) D-264, 11596 to 20406, composed of (1) gasket 51316DB, (1) header 272801R91, (8) screw 179816, (8) washer 115548

1шт.

10

272801R91

HEADER, crankcase, water, rear, w/steel plate cover, 1/4" D-264, 20407 up, D-281, 501 up

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, cap, hex-hd., 5/16-18NC x 7/8"

8шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

8шт.

11

264416R22

HEADER, crankcase, water, front, w/sheet steel cover (order 272803R91) D-264, Serial Range: 11596-20406

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

7шт.

272799R1

STUD, water header cover (will work for 29070D)

1шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x no. 16 ga.

8шт.

11

272803R91

HEADER, crankcase, water, front, assembly (will work for 264416R22) D-264, 11596 to 20406, composed of (1) gasket 51316DB, (1) header 272800R91, (1) nut 103025, (7) screw 179816, (1) stud 272799R1, (8) washer 115548

1шт.

11

272800R91

HEADER, crankcase, water, front, w/steel plate cover, 1/4" D-264, 20407 up, D-281, 501 up

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, cap, hex-hd., 5/16-18NC x 7/8"

7шт.

272799R1

STUD, water header cover

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

8шт.

12

50827DA

BUSHING, cross shaft

2шт.

13

48236DXA

ROD, push (optional with 261119R91)

8шт.

13

261119R91

ROD

push (optional with 48236DXA)

8шт.

14

51790D

STOP, valve tappet

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

45956D

TAPPET

valve

8шт.

16

50826D

PIN, cross shaft return spring

1шт.

17

172580

PLUG,Exp, 1 7/8"

expansion, crankcase distributor hole, 1-7/8"

1шт.

18

271750R11

GAGE, oil lever, w/wing nut

1шт.

19

51324D

PLATE, side, push rod chamber, rear

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

2шт.

62866D

WASHER,5/64" Thk x 13/32" ID

push rod chamber side plate

2шт.

20

60570D

GASKET

push rod chamber side plate

2шт.

21

59488D

PLATE, side, push rod chamber, front

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

2шт.

62866D

WASHER,5/64" Thk x 13/32" ID

push rod chamber side plate

2шт.

22

59482D

FILTER, ELEMENT

ELEMENT, breather

1шт.

23

59484D

FLANGE, breather pipe

1шт.

24

59490D

PIPE, breather

1шт.

25

265926R91

BODY

breather (die cast) w/four screw, 172321 and two screws, 172462 (optional with 9258DCX)

1шт.

172321

SCREW,Hex, #10 - 24 x 5/8"

self-tapping, hex-hd., no. 10-24 x 5/8"

4шт.

172462

SCREW,Hex, 5/16" - 18 x 1"

self-tapping, hex-hd., 5/16-18NC x 1"

2шт.

25

9258DCX

BODY, breather (gray iron) w/four screw, 110500, two screw, 179817, two washer, 103320 and two washer, 106497 (optional with 265926R91)

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

machine, rd-hd., no. 10-24NC x 1/2"

4шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

26

59481DB

GASKET

breather body

1шт.

27

59480DA

BAFFLE, breather

1шт.

28

266600R1

SLEEVE, oil lever gage

1шт.

29

256658R1

PLUG

expansion, brz., 1-3/4" (crankcase front)

2шт.

30

52605D

DOWEL, crankcase front cover

2шт.

31

256859R1

CAP, crankshaft bearing, front, rear and intermediate (see note)

4шт.

275688R1

SCREW, crankshaft bearing cap, front, rear and intermediate

8шт.

46246D

WASHER, crankshaft bearing cap, front, rear and intermediate

8шт.

278027R1

WIRE, locking, crankshaft bearing cap screw, front, rear and intermediate

4шт.

32

256860R2

CAP, crankshaft bearing; center (see note)

1шт.

275816R1

SCREW, crankshaft bearing cap center

2шт.

39422D

WASHER

crankshaft bearing cap, center

2шт.

278027R1

WIRE, locking crankshaft bearing cap screw, center

1шт.

33

25086DA

STUD

DOWEL, rear engine support

2шт.
