Запчасти Case IH 450-SERIES (449) - ATTACHMENTS, ELECTRALL, SPECIAL, EXCITER Attachments

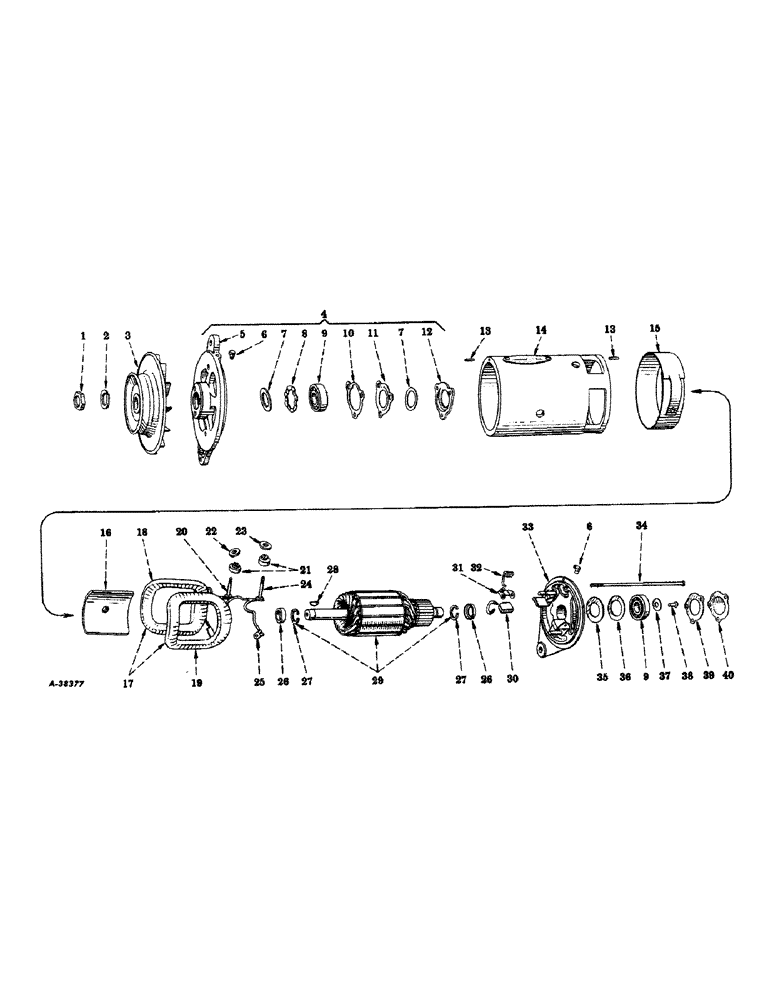

Схема запчастей Case IH 450-SERIES - (449) - ATTACHMENTS, ELECTRALL, SPECIAL, EXCITER Attachments
35
23
36
38
1
25
12
16
13
27
7
30
7
11
2
10
26
28
31
37
29
3
14
33
6
27
39
18
24
5
9
6
9
15
21
13
34
19
4
40
8
28
32
17
20
22

Артикул

Название

Примечание

Количество

363983R91

EXCITER, assembly (composed of parts listed in this unit)

1шт.

1

364234R1

NUT, armature shaft

1шт.

2

364239R1

WASHER, lock, armature shaft nut

1шт.

3

364238R91

PULLEY, drive

1шт.

4

364240R91

HEAD, drive end, assembly (composed of (1) bearing 364232R91, (1) gasket 364244R1, (1) head 364241R1, (1) oiler 364233R91, (1) retainer 364243R1, (1) retainer 364245R1, (1) retainer 364246R1, (3) screw 364247R1, (2) washer 364242R1, (3) washer 106497)

1шт.

5

364241R1

HEAD (drive end)

1шт.

6

364233R91

OILER, w/cap and spring

2шт.

7

364242R1

WASHER, felt

2шт.

8

364243R1

RETAINER, outer felt washer

1шт.

9

364232R91

BEARING

ball

2шт.

10

364244R1

GASKET, bearing retainer

1шт.

11

364245R1

RETAINER, inner felt washer

1шт.

12

364246R1

RETAINER, bearing

1шт.

364247R1

SCREW, bearing retainer

3шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

13

364218R1

PIN, dowel

2шт.

14

364206R91

1шт.

FRAME, assembly (composed of (2) bushing 364210R1, (1) coil set 364211R91, (1) frame (NSS), (1) nut 103088, (1) nut 142246, (2) pin 364218R1, (2) screw 364217R1, (1) washer 364207R1, (1) washer 364208R1, (1) washer 364209R1, (1) washer 364219R1, (1) washer 103319, (1) washer 106497)

1шт.

112872

SCREW, machine, slotted-rd-hd., no. 10-32NF x 5/16" (ground screw) Slotted Rd Hd, #10-32 x 5/16"

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, (on ground screw) #10

1шт.

15

364248R91

BAND, cover, w/clamping spring

1шт.

16

SHOE, pole (not service separately)

2шт.

364217R1

SCREW, pole shoe

2шт.

17

364211R91

COIL SET, field, assembly (composed of (1) coil 364215R91, (1) coil 364216R91, (1) cable 364214R91, (1) stud 364212R1, (1) stud 364213R1)

1шт.

18

364215R91

COIL, field, w/field terminal cable

1шт.

19

364216R91

COIL, field, w/armature terminal cable

1шт.

20

364212R1

STUD, field terminal

1шт.

21

364210R1

BUSHING, terminal stud insulating

2шт.

22

364208R1

WASHER, field terminal stud insulating

1шт.

364209R1

WASHER, field terminal plain

1шт.

103088

NUT,#10-32

hex., no. 10-32NF

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

23

364207R1

WASHER, armature terminal insulating

1шт.

364219R1

WASHER, armature terminal plain

1шт.

142246

CHAIN

NUT, hex., 1/4-28NF

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

364213R1

STUD, armature terminal

1шт.

25

364214R91

CABLE, armature terminal to brush holder, w/terminal

1шт.

26

364237R1

PROTECTOR, felt washer

2шт.

27

364236R1

RING, snap, armature shaft

2шт.

28

NLS

NO LONGER SERVICED

Woodruff, no. 5

1шт.

29

364235R91

ARMATURE, w/two rings, 364236R1

1шт.

30

364227R91

BRUSH SET, exciter (consists of two brushes)

1шт.

100749

SCREW, machine, slotted-rd-hd., no. 8-32NC x 1/4" Slotted Rd Hd, #8-32 x 1/4"

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

31

364230R1

ARM, brush

2шт.

32

364231R1

SPRING, brush

2шт.

33

364229R91

HEAD, commutator end, w/two arms 364230R1, two holders, and two springs, 364231R1

1шт.

34

364220R1

BOLT, thru

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

35

364224R1

WASHER, felt

1шт.

36

364222R1

WASHER, felt retaining

1шт.

37

364221R1

WASHER, bearing retaining

1шт.

38

364223R1

SCREW, bearing retaining washer

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

364225R1

GASKET, commutator end cover

1шт.

40

364226R1

COVER, commutator end

1шт.

113626

SCREW, machine, slotted-fil-hd., no. 10-32NF x 5/16"

3шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.
