Запчасти Case IH 450-SERIES (433) - ATTACHMENTS, FAST-HITCH WITH TRACTION CONTROL, SPECIAL, DRAWBAR, SOCKET BEAMS & BAIL Attachments

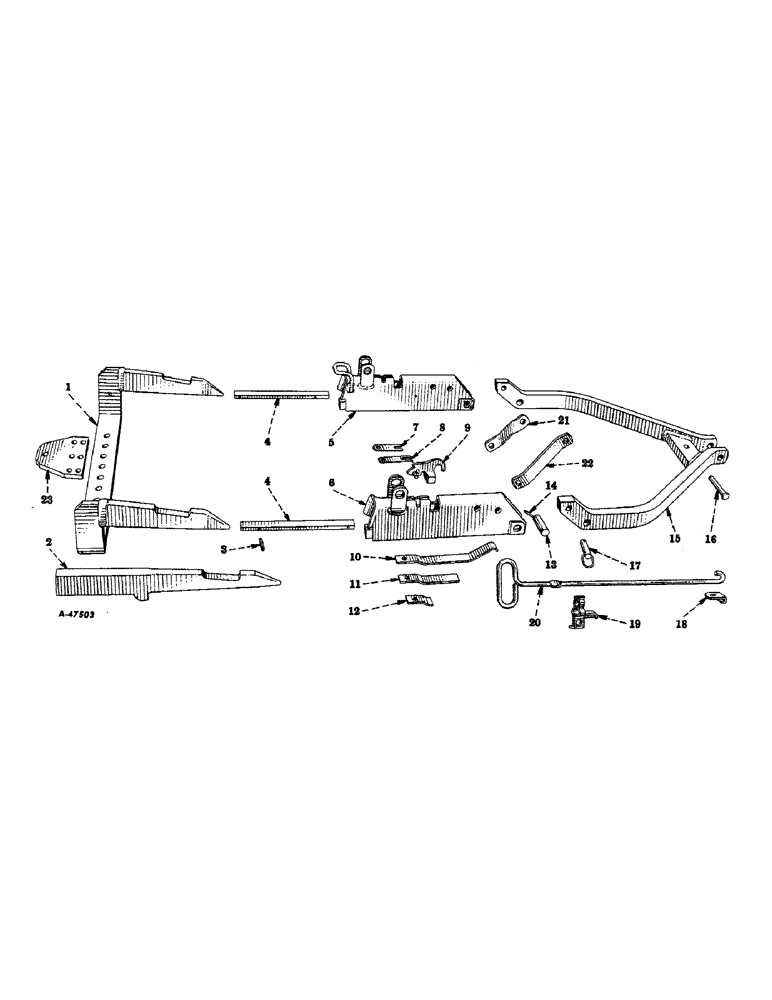

Схема запчастей Case IH 450-SERIES - (433) - ATTACHMENTS, FAST-HITCH WITH TRACTION CONTROL, SPECIAL, DRAWBAR, SOCKET BEAMS & BAIL Attachments
22
13
7
12
15
1
4
8
17
10
2
19
16
3
21
9
18
23
5
11
14
20
6
4

Артикул

Название

Примечание

Количество

368048R91

ATTACHMENT, fast-hitch, w/traction control (for tractors equipped with Hydra-Touch system)

1шт.

523388R91

ATTACHMENT, coupling beam socket filler plate unit permits use of super C, Farmall 200 and 230 fast-hitch implements on tractors equipped with fast-hitch, w/traction control) (composed of two plates, 523338R11, and two pins, 657196R1) (see note B)

1шт.

523423R91

PARTS ACCESSORY, fast-hitch drawbar stabilizer (provides additional bracing to prevent side swing) (special) (see note B) (composed of refs. 21 and 22 and attaching parts)

1шт.

1

523089R91

DRAWBAR

1шт.

2

521021R11

BEAM, coupling (use to adapt allied implements for use, w/fast-hitch by welding this to, or by drilling holes and bolting this to the implement) (see note B)

1шт.

3

657197R1

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, roll, 1/4 x 2" (used with ref. 4) (see note B)

2шт.

4

523887R11

PLATE, filler, w/pin, 657196R1 (special) (see note B)

2шт.

Q1404

AXLE PIN

PIN, std-hd., dld., 1/4 x 2-1/4" (see note B)

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening (see note B) 1/8" x 3/4"

2шт.

5

522813R91

SOCKET, beam, LH assembly

1шт.

6

522814R91

SOCKET, beam, RH assembly

1шт.

7

522840R1

SPRING

auxiliary (for latch)

2шт.

8

522839R1

VALVE SPRING

SPRING, latch

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

9

523110R1

LATCH

coupling, beam, w/pin, 576485R1

2шт.

10

522836R1

SPRING

leaf (long) (for beam socket)

2шт.

11

522835R1

SPRING

leaf (medium) (for beam socket)

2шт.

12

522834R1

VALVE SPRING

SPRING, leaf (short) (for beam socket)

2шт.

179887

CABLE

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4"

2шт.

13

522852R11

PIN

hitch bail, 522852R1, w/pin, 19329R1 and pin, 576517R1

2шт.

13

522852R1

PIN

(in hitch bail)

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , In beam socket to hitch bail pin 1/4" x 1 1/2"

2шт.

14

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, (in beam socket to hitch bail pin) 1/4" x 1 1/2", Slotted

2шт.

19329R1

LOCK PIN,5/32" x 1 1/2", Slotted

Pin, 5/32" x 1 1/2", Slotted

2шт.

15

522729R91

BAIL

assembly (order bail, 523870R91 and pin, 523866R1)

1шт.

15

523870R91

BAIL, assembly

1шт.

16

522854R1

PIN, pivot, hitch point (4-1/2" long) (used with bail, 522729R91)

1шт.

16

523866R1

PIN

pivot, hitch point (5-1/4" long) (used with bail, 523870R91)

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

17

522841R11

PIN

socket, pivot lockout

2шт.

18

523440R1

SUPPORT, latch hook, front (battery box)

1шт.

19

523442R91

BRACKET, latch hook spring clip, rear (battery box)

1шт.

20

360378R2

HOOK, latch

1шт.

21

523175R1

BRACE, drawbar, LH (special) (see note B)

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4"

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4 x 2"

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 3/4 x 3-1/4"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

22

523175R1

BRAKE, drawbar, RH (special) (see note B)

1шт.

220081

NUT

hex., 3/4"

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

cap, hex-hd., 3/4 x 2-1/2"

1шт.

271616

SEAL KIT

SCREW, cap, hex-hd., 3/4 x 3-1/4"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

23

368394R1

PLATE

drawbar extension (provides a standardized power take-off hitch for tractors equipped with fast-hitch but not equipped with swinging drawbar) (see note B)

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC (see note B)

2шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4" (see note B)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

Выбрано товаров: 47
