Запчасти Case IH 450-SERIES (432) - ATTACHMENTS, CYLINDER REPLACEMENT LINK (SPECIAL) Attachments

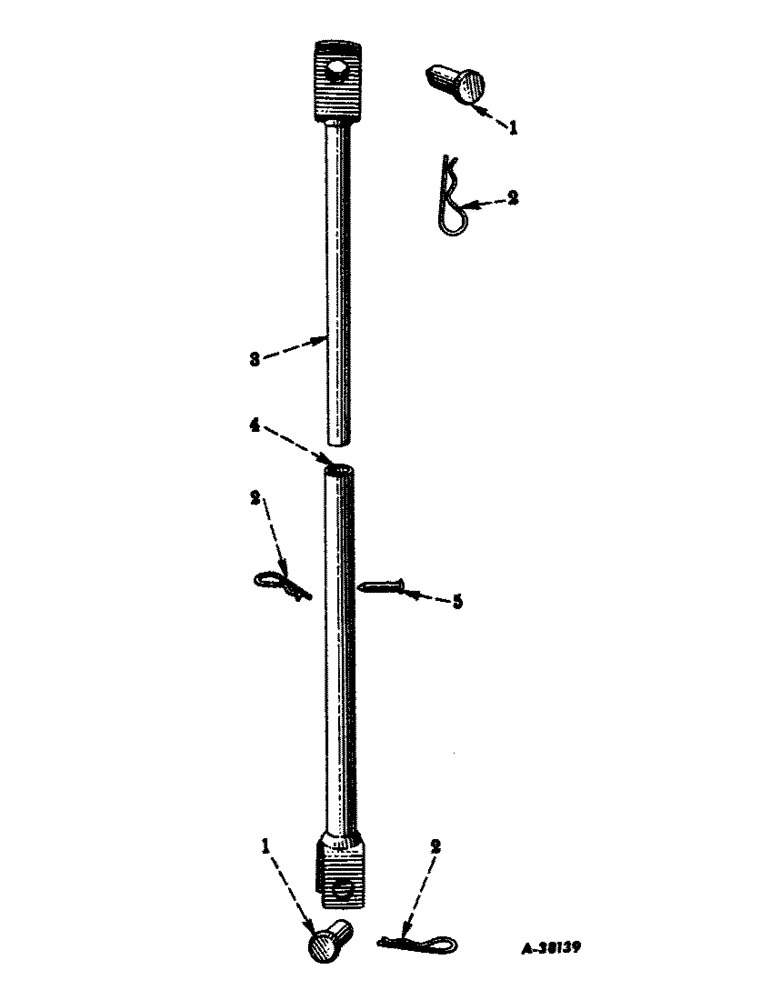

Схема запчастей Case IH 450-SERIES - (432) - ATTACHMENTS, CYLINDER REPLACEMENT LINK (SPECIAL) Attachments
2
3
2
4
1
2
5
1

Артикул

Название

Примечание

Количество

363884R91

PACKAGE, cylinder replacement link (for tractors equipped with fast hitch w/o traction control) (permits removal of 3-1/2 x 8" hydraulic cylinder for other uses)

1шт.

1

360248R1

PIN, clevis, cylinder replacement link

2шт.

2

517843R1

COTTER PIN

PIN, cotter, quick attachable

3шт.

3

360246R11

ROD, cylinder replacement link, w/clevis

1шт.

4

360244R11

PIPE, cylinder replacement link, w/clevis

1шт.

5

360247R1

PIN, cylinder replacement link pipe

1шт.

Выбрано товаров: 6
