Запчасти Case IH 450-SERIES (426) - ATTACHMENTS, DEPTH ADJUSTING ROCKSHAFT, 2-1/2 X 8 INCH HYDRAULIC CYLINDER & CONNECTIONS Attachments

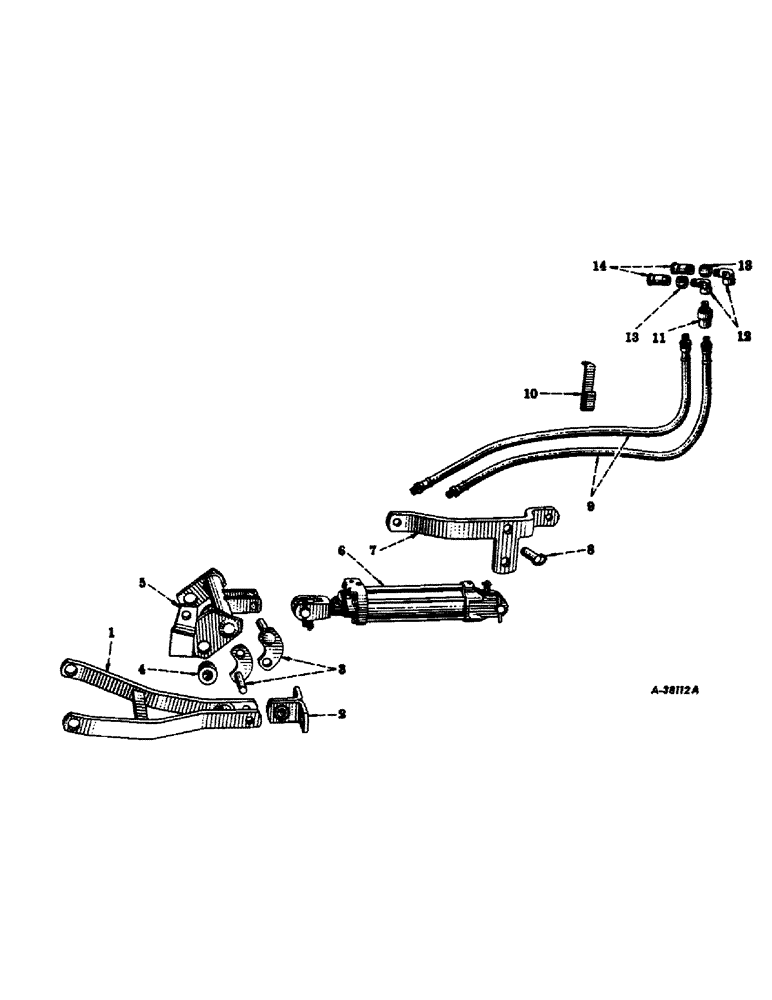

Схема запчастей Case IH 450-SERIES - (426) - ATTACHMENTS, DEPTH ADJUSTING ROCKSHAFT, 2-1/2 X 8 INCH HYDRAULIC CYLINDER & CONNECTIONS Attachments
6
4
14
1
8
5
9
7
13
2
18
3
10
12
11

Артикул

Название

Примечание

Количество

1

519991R91

BAIL, hitch adjusting

1шт.

2

519945R1

BRACKET, bail pivot, w/ball

1шт.

15163R1

BOLT, carriage, sq-nk., 3/4-10NC x 3-1/4"

2шт.

114821

NUT, hex., 3/4-10NC

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

520016R91

STRAP, Pitman, w/stud

2шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

4

520007R1

BUSHING, depth adjusting Rockshaft pivot

2шт.

576432R1

KNUCKLE

PIN, roll, 5/16 x 2"

2шт.

5

520006R91

ROCKSHAFT, depth adjusting

1шт.

360994R91

CYLINDER

hydraulic (2-1/2 x 8") assembly (for components see list of parts under detail of "Hydraulic Cylinders")

1шт.

7

520030R11

BRACKET, depth adjusting cylinder anchor

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

520008R11

PIN

quick attachable, w/ball, handle and spring (locking pin for depth adjusting rockshaft)

1шт.

9

355565R92

HOSE

hydraulic cylinder, 1/2" I.D. x 10-1/2" (for tractors with 18 gal. capacity

1шт.

9

352236R91

HOSE

hydraulic cylinder, 1/2" ID x 49-1/2" (for tractors with 21-1/2 gal. capacity fuel tank)

2шт.

10

362922R1

BRACKET, hose support

1шт.

11

362904R91

VALVE, adjustable drop retarding, assembly (for components see list of parts under details of "Adjustable Drop Retarding Valve")

1шт.

12

444484

ELBOW

street, automotive pipe, 90deg., brs., 1/2"

2шт.

13

357965R2

NUT

union, self-sealing coupling (white) (will work for 363462R1)

2шт.

14

353218R91

COUPLING

female half, self-sealing, assembly (for components see list of parts under details of "Break-Away or Self-Sealing Couplings")

2шт.

Выбрано товаров: 22
