Запчасти Case IH 450-SERIES (411) - ATTACHMENTS, PNEUMATIC TIRE PUMP, ENGINAIR, SPECIAL Attachments

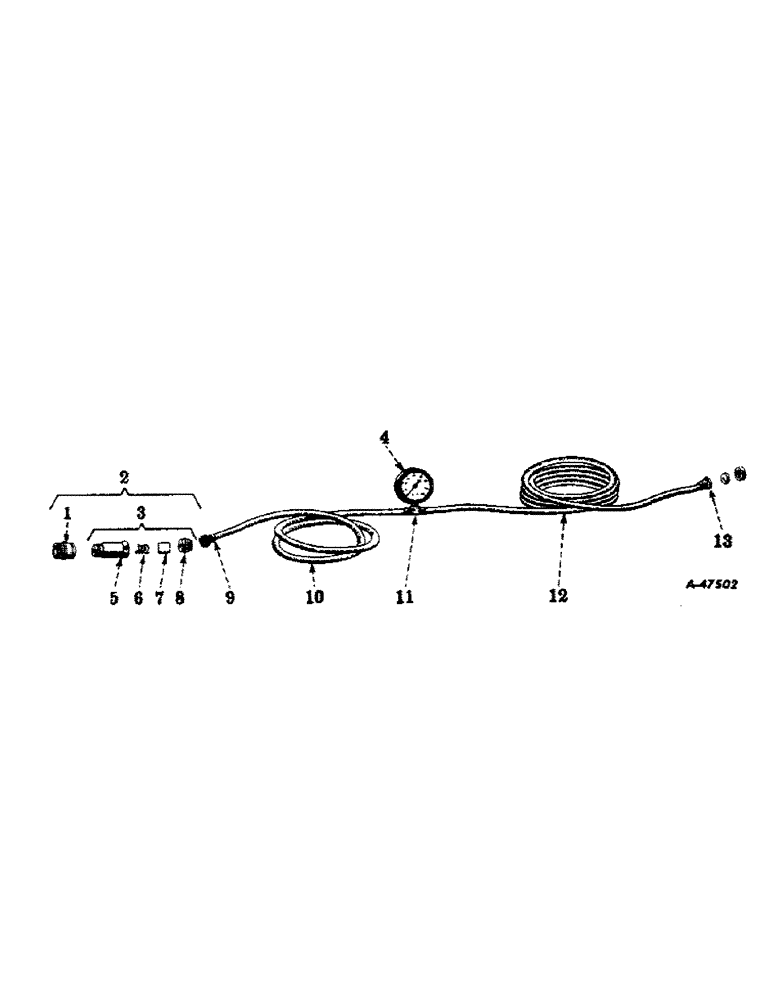

Схема запчастей Case IH 450-SERIES - (411) - ATTACHMENTS, PNEUMATIC TIRE PUMP, ENGINAIR, SPECIAL Attachments
7
10
1
4
6
5
8
12
13
3
2
11
9

Артикул

Название

Примечание

Количество

365997R91

TOOL

PUMP, tire, w/gage and adapters, assembly (optional with Schrader pumps, 39620D, 39622D and 39624D) (will work for 37836DB, 39604DA and 39605DA)

1шт.

1

366001R1

ADAPTER

7/8" (note B)

1шт.

1

366002R1

ADAPTER

14 mm (note B)

1шт.

1

366003R1

ADAPTER

10 mm (note B)

1шт.

2

365998R91

ELEMENT

pumping (18 mm) with adapter, assembly (consists of (1) adapter 366001R1, (1) adapter 366002R1, (1) adapter 366003R1, (1) element 365999R91)

1шт.

3

365999R91

ELEMENT

pumping (18 mm) (consists of (1) body 366000R1, (1) gage 70313D, (1) head 69911D, (1) valve 61564D)

1шт.

4

37895DA

GAGE, air pressure

1шт.

5

366000R1

BODY

pump element

1шт.

6

70313D

CAGE

valve (2 halves)

1шт.

7

61564D

VALVE

flap (2 halves)

1шт.

8

69911D

HEAD, w/ball and bushing

1шт.

9

37890D

RING, hose clamp

4шт.

10

37892D

HOSE, 4 ft.

1шт.

11

37893D

CONNECTION, air pressure gage

1шт.

12

37891D

HOSE, 12 ft.

1шт.

13

357375R91

CHUCK, air, 3/4"

2шт.

69912D

NUT, swivel

1шт.

Выбрано товаров: 17
