Запчасти Case IH 450-SERIES (404) - ATTACHMENTS, ADJUSTABLE WIDE TREAD FRONT AXLE, SPECIAL, FOR ALL TRACTORS EXCEPT HI-CLEAR MODELS Attachments

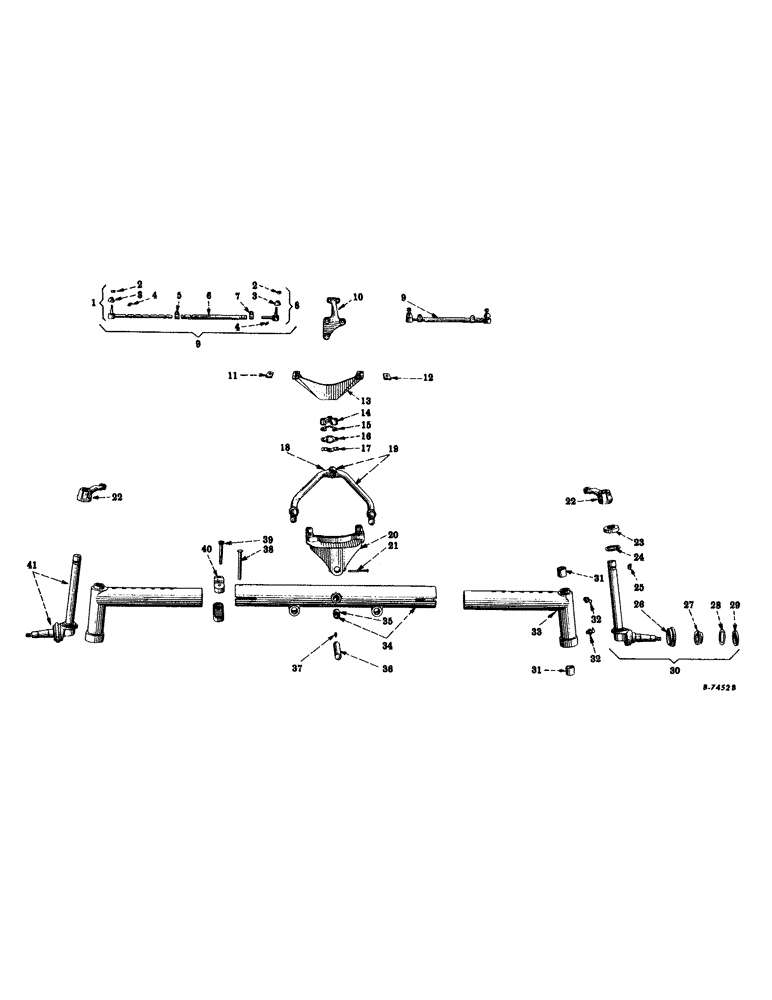

Схема запчастей Case IH 450-SERIES - (404) - ATTACHMENTS, ADJUSTABLE WIDE TREAD FRONT AXLE, SPECIAL, FOR ALL TRACTORS EXCEPT HI-CLEAR MODELS Attachments
9
32
5
3
35
32
27
1
8
6
41
10
23
11
4
17
40
13
2
33
4
22
39
29
34
25
38
2
18
15
14
7
36
9
37
31
30
16
19
26
22
12
3
24
31
20
28

Артикул

Название

Примечание

Количество

360400R92

ATTACHMENT, adjustable wide tread front axle

1шт.

1

358983R91

TIE-ROD

TIE ROD, assembly, L.H. (optional with 359984R91) (composed of (1) cover 358900R1, (1) end (NSS), (1) nut, 358901R1, (1) pin 103386)

1шт.

1

359984R91

ROD

TIE ROD, assembly, L.H. (optional with 358983R91) (composed of (1) cover 359982R1, (1) end (NSS), (1) nut 359983R1, (1) pin 103386)

1шт.

2

358901R1

SLOTTED NUT

tie rod end (optional with 359983R1)

4шт.

2

359983R1

NUT

tie rod end (optional with 358901R1)

4шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Tie rod end 1/8" x 1 1/4"

4шт.

3

358900R1

SEAL

COVER, dust, tie rod end (optional with 359982R1)

4шт.

3

359982R1

COVER

dust, tie rod end (optional with 358900R1)

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Tie rod) (optional with 119512) 1/8"-27 x .66 lg

4шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (tie rod) (optional with 109461)

4шт.

5

358982R1

CLAMP, tie rod (adjustable end) (optional with 359986R1)

2шт.

5

359986R1

CLAMP

tie rod (adjustable end) (optional with 358982R1)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

6

358980R1

TUBE, tie rod (optional with 359980R1)

2шт.

6

359980R1

TUBE

tie rod (optional with 358980R1)

2шт.

7

358981R1

CLAMP, tie rod (threaded end) (optional with 359985R1)

2шт.

7

359985R1

CLAMP

tie rod (threaded end) (optional with 358981R1)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

8

360678R91

END

tie rod, assembly (R.H. thread) (optional with 359981R91) (composed of (1) cover 358900R1, (1) end (NSS), (1) nut 358901R1, (1) pin 103386)

2шт.

8

359981R91

END

tie rod, assembly (R.H. thread) (optional with 360678R91) (composed of (1) cover 359982R1, (1) end (NSS), (1) nut 359983R1, (1) pin 103386)

2шт.

9

358979R91

TIE ROD, assembly (optional with 359569R91) (composed of (1) clamp 358981R1, (1) clamp 358982R1, (1) end 360678R91, (2) nut 103028, (2) screw 181435, (1) tie rod 358983R91, (1) tube 358980R1, (2) washer 114608)

2шт.

9

359569R91

TIE ROD, assembly (optional with 358979R91) (composed of (1) clamp 359985R1, (1) clamp 359986R1, (1) end 359981R91, (2) nut 103028, (2) screw 181435, (1) tie rod 359984R91, (1) tube 359980R1, (2) washer 114608)

2шт.

10

358970R1

ARM

steering gear

1шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF

3шт.

271635

CYLINDER

cap, hex-hd., 3/4-16NF x 2-1/4"

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

11

51693D

BAR

WASHER, bevel, stay rod ball socket support

2шт.

12

51811D

WASHER

bevel, stay rod ball socket support

2шт.

13

360406R1

SUPPORT, stay rod ball socket

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

271587

WASHER

SCREW, cap, hex-hd., 5/8-18NF x 2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

9020D

SOCKET

ball, stay rod

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-5/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

60762D

SHIM

stay rod ball socket cap

4шт.

16

60763DB

CYLINDER END CAP

CAP, stay rod ball socket

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

2шт.

17

358345R1

PLATE ASSY.

PLATE, lock, stay rod ball socket and cap

1шт.

18

10546D

BALL

stay rod

1шт.

19

360405R11

ROD

STAY ROD, w/ball, 10546D

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

hex., jam, 1-3/8-12NF

2шт.

118028

WASHER, lock, light, 1-3/8"

2шт.

20

358969R2

BOLSTER, lower

1шт.

21

Q3537

HEADED PIN,3/8" x 4 1/8"

PIN, headed, locking, 3/8 x 4-1/8" (front axle pivot)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

179959

SCREW, cap, hex-hd., 3/4-10NC x 3-3/4"

2шт.

179955

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

22

358971R1

ARM, steering knuckle

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18Nf x 3"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

thrust, steering knuckle pivot

2шт.

24

55412D

WASHER

WASHER, felt, steering knuckle pivot

2шт.

25

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, no. 127 (steering knuckle arm)

2шт.

26

48701D

SHIELD

dust front wheel

2шт.

27

51901D

SPACER

bearing, front wheel

2шт.

28

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel (not used with triple lip design oil seals 48704DA and 367161R91)

2шт.

29

48704DA

OIL SEAL

OIL SEAL, front wheel (optional with 367161R91)

2шт.

29

367161R91

OIL SEAL

front wheel (optional with 48704DA)

2шт.

30

360408R91

KNUCKLE, steering (R.H.) assembly (composed of (1) knuckle 358960R1 (NSS), (1) oil seal 48704DA, (1) pin 360409R1 (NSS), (1) shield 48701D, (1) spacer 51901D)

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

31

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot

4шт.

32

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90deg. elbow, 1/8" (steering knuckle pivot pin) (optional with 109354) (not illustrated) (used, w/threaded hole)

4шт.

32

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90deg. elbow, 1/8" (steering knuckle pivot pin) (optional with 109354) (not illustrated) (used, w/threaded hole)

4шт.

32

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90deg. elbow, 1/8" (steering knuckle pivot pin) (optional with 109462) (not illustrated) (used, w/threaded hole)

4шт.

32

110161

FITTING, lubrication, straight, 1/8" drive type (steering knuckle pivot pin) (optional with 125617) (used, w/plain hole)

4шт.

32

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication, straight, 1/8" drive type (steering knuckle pivot pin) (optional with 110161) (used, w/plain hole)

4шт.

33

360403R91

EXTENSION, front axle, w/two bushings, 358958R2

2шт.

34

358976R11

FRONT AXLE

AXLE, front, w/two bushings, 48841D

1шт.

35

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

36

358978R1

PIN

pivot, front axle

1шт.

37

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (Front axle pivot pin) (Optional with 271287) 1/4"-28 NPT x .54" lg

1шт.

37

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (Front axle pivot pin) (Optional with 109454) 1/4"-28 NPT x .54" lg

1шт.

38

350557R1

PIN

clamp, front axle

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

39

350558R1

BOLT

clamp, front axle

4шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

40

350556R1

CLAMP

front axle

4шт.

41

360407R91

KNUCKLE

steering (L.H.) assembly (composed of (1) knuckle 358960R1 (NSS), (1) oil seal 48704DA, (1) pin 360409R1 (NSS), (1) shield 48701D, (1) spacer 51901D)

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

BEARING, cone, front wheel, inner (illustrated with front wheel)

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
