Запчасти Case IH 450-SERIES (393) - ATTACHMENTS, TACHOMETER, SPECIAL Attachments

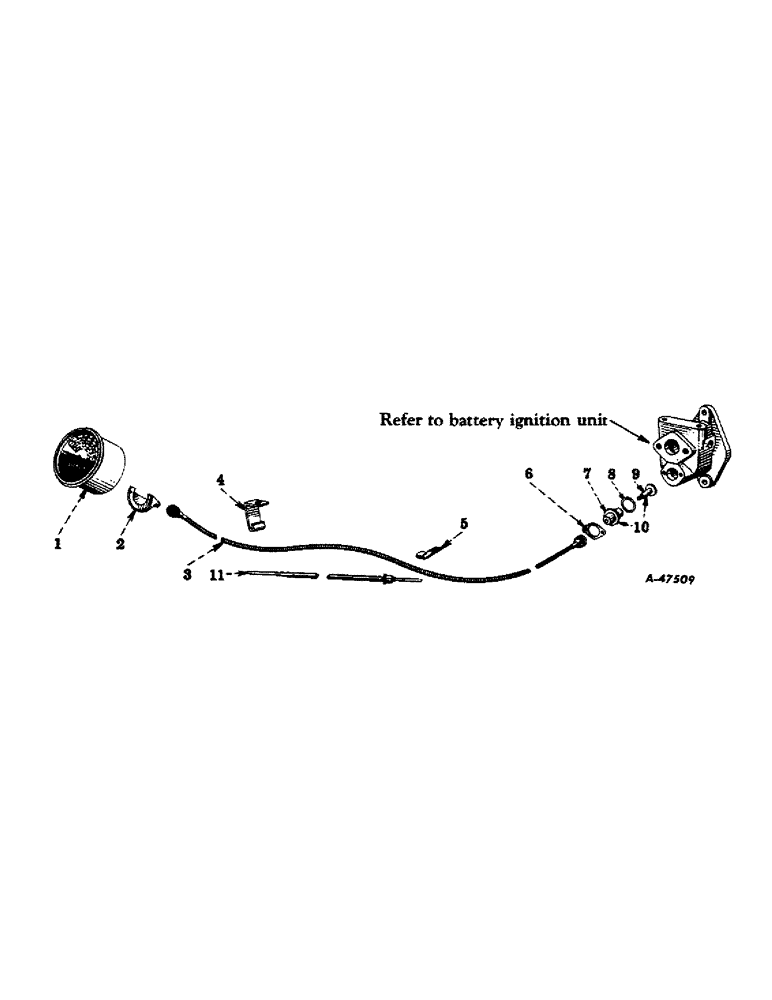

Схема запчастей Case IH 450-SERIES - (393) - ATTACHMENTS, TACHOMETER, SPECIAL Attachments
10
9
2
3
4
7
11
5
8
6
1

Артикул

Название

Примечание

Количество

1

364393R91

TACHOMETER

assembly (A only)

1шт.

1

364393R91GV

TACHOMETER

Tachometer

1шт.

1

364395R91

TACHOMETER

assembly (B only)

1шт.

1

364395R91GV

TACHOMETER

Tachometer

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

2

364376R1

BRACKET, tachometer mounting

1шт.

364905R91

SCREW, machine, rd-hd., cr-rec-hd., no. 10-24NF x 7/8", w/internal tooth lockwasher

2шт.

3

364396R91

CABLE

CONDUIT, tachometer flexible drive shaft, w/core, 368108R91 and two mounting nuts

1шт.

4

364377R1

CLIP, angle, tachometer drive conduit (on rear fuel tank mounting bolt, right side)

1шт.

5

363812R1

CLIP, tachometer drive conduit (on bottom hood sheet center bracket mounting bolt, right side)

1шт.

6

363817R1

RETAINER

PLATE, tachometer connection housing

1шт.

435429

SCREW, machine, slotted-rd-hd., cd-pltd., no. 10-32 NF x 9/16" Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7

HOUSING, tachometer connection (not serviced separately, order package, reference no. 10)

1шт.

8

363814R1

GASKET

tachometer connection housing

1шт.

9

GEAR, tachometer drive (32-teeth) (not serviced separately, order package, reference no. 10)

1шт.

10

364829R91

TACHOMETER

PACKAGE, service, tachometer drive (consists of gear and housing)

1шт.

11

368108R91

CORE

tachometer drive shaft, assembly

1шт.

Выбрано товаров: 19
