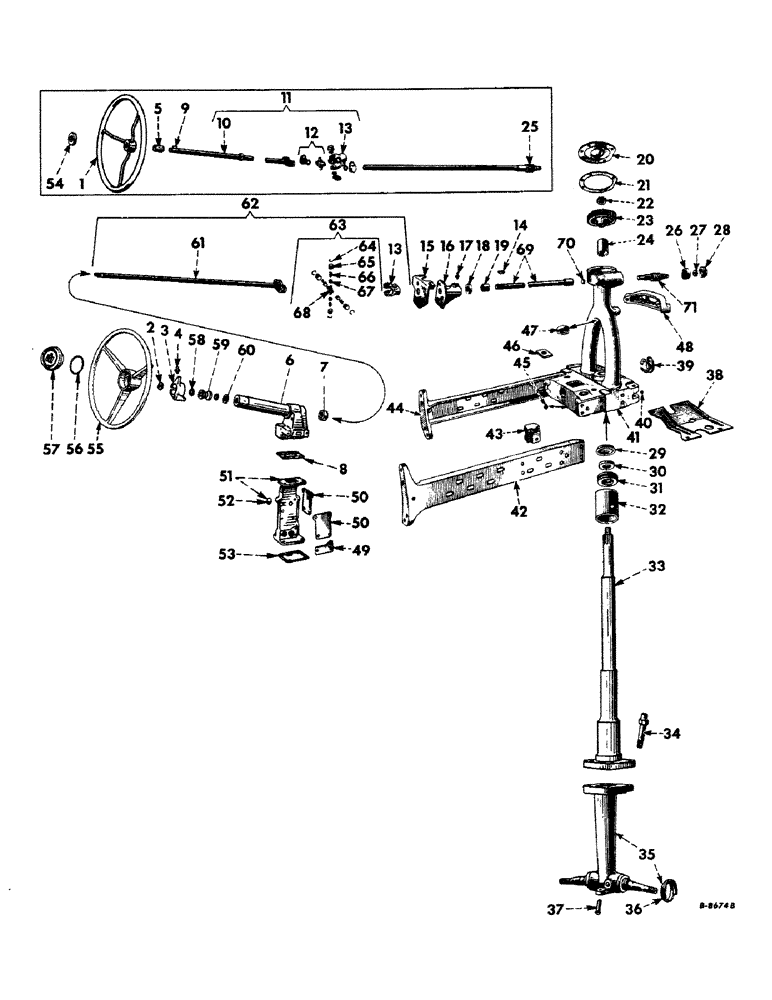

Запчасти Case IH 450-SERIES (286) - CHASSIS, STEERING MECHANISM, UPPER & LOWER BOLSTERS & LOWER BOLSTERS & FRONT FRAME CHANNELS (12) - CHASSIS

1

29118DC

WHEEL

steering 18" diam. (optional with 60070D) (Farmall 400 Series tractors)

1шт.

1

60070D

STEERING WHEEL

WHEEL, steering 18" diam. (optional with 29118DC) (Farmall 400 Series tractors)

1шт.

1

557282R91

WHEEL, steering 20" diam. (special) (Farmall 400 Series tractors)

1шт.

364722R1

NUT, steering shaft, rear (will work for 131507) (for Farmall 400 Series tractors, w/o power steering name plate)

1шт.

366286R1

NUT, steering shaft, rear (for Farmall 400 Series tractors, w/power steering name plate)

1шт.

138561

LOCK WASHER,Int Tooth, 3/4"

WASHER, lock, internal-tooth, cd-pltd., 3/4"

1шт.

2

18465D

WASHER

KEY, governor control sector bracket

1шт.

3

362063R11

BRACKET, engine speed control sector, w/125617 fitting (for carbureted engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 13135, (for diesel engine tractors) Farmall 400 Series, Farmall 450 Series, Serial Range: 501-12436

1шт.

3

368727R1

BRACKET, engine speed control sector (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW, cap, hex-socket-hd., 3/8-1/NC x 1-1/4"

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication (steering shaft rear bearing) (optional with 110161) (used only with bracket, 362063R11)

1шт.

4

110161

FITTING, lubrication (steering shaft rear bearing) (optional with 125617) (used only with bracket, 362063R11)

1шт.

5

364718R1

BUSHING

steering shaft rear bearing (will work for 362103R1) (for carbureted engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 13135, (for diesel engine tractors) Farmall 400 Series, Farmall 450 Series, Serial Range: 501-12436

1шт.

6

361551R21

SUPPORT, steering shaft, rear, w/bearing, 364718R1, bushing and tube, Farmall 400 Series

1шт.

6

366554R91

SUPPORT, steering shaft, rear, w/bearing, 364718R1, bushing and tube (for carbureted engine tractors) Farmall 450 Series, 501 to 13135, (for diesel engine tractors) Farmall 450 Series, Serial Range: 501-12436

1шт.

6

368749R91

SUPPORT, steering shaft, rear, w/tube, (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

51444DA

COLLAR

SPACER, steering shaft rear bearing (for carbureted engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 13135 (for diesel engine tractors) Farmall 400 Series, Farmall 450 Series, Serial Range: 501-12436

1шт.

139042

BAR

set, hdls., cup-pt., 5/16-24NF x 5/16"

2шт.

7

368738R1

SPACER, steering shaft rear bearing (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

368739R1

SCREW, set, hex-socket-hd., 3/8-24NF x 1/2"

2шт.

8

361528R1

GASKET

steering shaft rear bearing support

1шт.

9

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, woodruff, type "A" (steering wheel) (Farmall 400 Series tractors)

1шт.

10

361745R11

SHAFT, steering, w/yoke, rear (diesel, gasoline, distillate or kerosene) (for tractors equipped with 24" liquefied petroleum gas tank) (Farmall 400 Series tractors)

1шт.

10

364603R11

SHAFT, steering, w/yoke, rear (for tractors equipped with 22" liquefied petroleum gas tank) (Farmall 400 Series tractors)

1шт.

11

361746R91

SHAFT, steering, 361745R11, w/spider, 350254R91 and yoke, 350361R2 (diesel, gasoline, distillate or kerosene) (for tractors equipped with 24" liquefied petroleum gas tank) (Farmall 400 Series tractors)

1шт.

11

364604R91

SHAFT, steering, 364603R11, w/spider, 350254R91 and yoke, 350361R2 (for tractors equipped with 22" liquefied petroleum gas tank) (Farmall 400 Series tractors)

1шт.

11

366560R91

SHAFT, steering, 366556R11, w/spider, 350254R91 and yoke, 350361R2 (diesel, gasoline, distillate or kerosene) (not illustrate) (Farmall 450 Series tractors)

1шт.

11

366661R91

SHAFT, steering, 366660R11, w/spider, 350254R91 and yoke, 350361R2 (liquefied petroleum gas) (not illustrated) (Farmall 450 Series tractors)

1шт.

12

350254R91

U-JOINT SPIDER

1шт.

BEARING and SPIDER, steering universal joint, w/4 bearings, 4 oil seals and 4 snap rings (optional with 357439R91) (for carbureted engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 13135, (for diesel engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 12436

1шт.

12

357439R91

1шт.

BEARING and SPIDER, steering universal joint, w/4 bearings 4 oil seals and 4 snap rings (optional with 350254R91) (for carbureted engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 13135, (for diesel engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 12436

1шт.

13

350361R2

YOKE

steering universal joint

1шт.

103026

NUT,3/8"-24, G5

1шт.

181377

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY, woodruff, no. 11 (steering shaft universal joint)

1шт.

15

361397R21

BRACKET, channel support, center, w/two nuts, 363885R91

1шт.

362662R91

NUT

speed grip, 5/16-24NF (see note A)

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage, 5/16-18NC (see note B)

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

361396R2

SUPPORT

BEARING, steering shaft center

1шт.

102635

NUT,3/8"-16, G5

3шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

17

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, lubrication (steering shaft center bearing) (optional with 110161)

1шт.

17

110161

FITTING, lubrication (steering shaft center bearing) (optional with 125617)

1шт.

18

364468R91

SEAL

OIL SEAL, steering worm shaft (will work for 43800DA)

1шт.

19

41096DBR

BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L

steering worm

1шт.

20

48951DX

COVER, steering worm gear housing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (On rear screws) 3/8"

3шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

2шт.

21

48952DA

GASKET

steering worm gear housing cover

1шт.

22

70121D

NUT

upper bolster pivot shaft

1шт.

23

50037DB

GEAR

SECTOR, steering worm gear (32 teeth)

1шт.

24

45172DR

BUSHING,38.16mm ID x 41.38mm OD x 60.33mm L

upper bolster, top

1шт.

25

60945DB

1шт.

WORM and SHAFT, steering (for tractors w/o power steering) (for gasoline, distillate or kerosene burning engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 13135, (for diesel engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 12436, (for liquefied petroleum gas burning engine tractors with 24" gas tank) (Farmall 400 Series, 501 to 21803

1шт.

25

50052DB

SHAFT

WORM and SHAFT, steering (for tractors w/o power steering) (for liquefied petroleum gas burning engine tractors with 22" gas tank) Farmall 400 Series, 21804 up, Farmall 450 Series, Serial Range: 501-13135

1шт.

25

365430R1

1шт.

WORM and SHAFT, steering (for tractors with power steering) (refer to "Hydraulic Power Steering" unit for illustration) (for gasoline, distillate or kerosene burning engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 13135, (for diesel engine tractors) Farmall 400 Series, Farmall 450 Series, 501 to 12436

1шт.

25

365822R11

WORM and SHAFT, steering (for tractors with power steering) (refer to "Hydraulic Power Steering" unit for illustration) (for liquefied petroleum gas burning engine tractors) Farmall 400 Series, Farmall 450 Series, Serial Range: 501-13135

1шт.

26

ST225BT

BALL BEARING

BEARING, ball steering worm

1шт.

27

69442D

NUT

steering worm (slotted jam hex nut, 3/4-16NF)

1шт.

28

6660DA

BEARING CAP

steering worm bearing

1шт.

29

49664D

WASHER

RETAINER, upper bolster felt washer

1шт.

30

49663D

WASHER

felt upper bolster

1шт.

31

354675R91

BALL BEARING,54.13mm ID x 91.67mm OD x 20.75mm W

thrust, upper bolster pivot shaft

1шт.

32

49661DAR

BUSHING,92.22mm ID x 95.47mm OD x 92.08mm L

upper bolster, bottom

1шт.

33

50040DC

SHAFT, upper bolster pivot

1шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16NF (for all hi-clear tractors)

3шт.

352536R1

NUT

upper bolster pivot shaft bolt (for all tractors except hi-clear models)

3шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

414-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 3/4-16NF x 2-1/4" (for all hi-clear tractors) (Replaces 217635)

3шт.

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

SCREW, cap, hex-hd., 3/4-16NF x 2-3/4" (for all tractors except hi-clear models) (Replaces 217637)

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

183

WASHER, plain, 1-1/32" I.D. x 2" O.D. x no. 16 ga.

1шт.

34

48751DA

BOLT,3/4" - 16 x 2 7/8"

steering stop (not used on single front wheel attachments) (for all tractors except hi-clear models)

1шт.

352536R1

NUT

steering stop bolt

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

35

6719DDX

BOLSTER, lower, w/axle, rivet, 111280 and two shield, 48701D (for all tractors except hi-clear models)

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

111280

RIVET, rd-hd., anld., 5/8 x 3-3/4"

1шт.

36

48701D

SHIELD

dust, front wheel

2шт.

37

111280

Follows reference no. 35

1шт.

38

360511R1

SHIELD, dust, fan drive pulley (for carbureted engine tractors)

1шт.

179814

SPACER

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

39

57563DX

PLUG, upper bolster, w/rivet, 110638 and spring, Farmall 400 Series, Farmall 450 Series, Serial Range: 501-8433

2шт.

110638

RIVET

rd-hd., 3/16 x 5/16"

2шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Upper bolster pivot shaft) (optional with 119512) 1/8"-27 x .66 lg

1шт.

40

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (upper bolster pivot shaft) (optional with 109461)

1шт.

41

9131DDXA

BOLSTER, upper, assembly, composed of (1) bolster 9131DD (NSS), (1) bushing 41096DBR, (1) bushing 45172D, (1) bushing 49661DAR, (1) oil seal 364468R91, (1) oil seal 364470R91, (1) retainer 49664D, (1) washer 49663D

1шт.

42

360520R92

CHANNEL, front frame, w/bracket, R.H.

1шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/8-11NC x 1-3/8"

4шт.

363807R1

SCREW, cap, front frame channel bracket (2" long)

2шт.

361313R1

SCREW, cap, front frame channel bracket (2-1/2" long)

2шт.

190270

BOLT,Hex, 1/2" - 13 x 4 1/4"

SCREW, cap, hex-hd., 1/2-3NC x 4-1/4" (for carbureted engine tractors)

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (For carbureted engine tractors) 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

43

9170D

SUPPORT, engine front (for carbureted engine tractors)

2шт.

44

360519R91

CHANNEL, front frame, w/bracket, L.H.

1шт.

271557

DEFLECTOR,Hex, 5/8" - 11 x 1 3/8", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 1-3/8"

4шт.

361313R1

SCREW, cap, front frame channel bracket (2-1/2 long)

4шт.

190270

BOLT,Hex, 1/2" - 13 x 4 1/4"

SCREW, cap, hex-hd., 1/2-13NC x 4-1/4" (for carbureted engine tractors)

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (For carbureted engine tractors) 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

45

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Starting crank ratchet) (optional with 119512) 1/8"-27 x .66 lg

1шт.

45

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (starting crank ratchet) (optional with 109461)

1шт.

46

51693D

BAR

WASHER, bevel, engine front support (for diesel engine tractors)

2шт.

102637

NUT,1/2"-13, G5

2шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

47

364470R91

OIL SEAL

upper bolster pivot shaft (will work for 80093H)

1шт.

48

359162R2

BRACKET, cultivator stay-rod anchor (for all tractors except hi- clear models)

1шт.

13-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/8-11NC x 1-5/8"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

49

363086R1

PLATE, hydra-touch control valve column, small (not used on tractors equipped with Hydra-Touch System)

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

50

363089R1

PLATE, hydra-touch control valve column, large (not used on tractors equipped with Hydra-Touch System)

2шт.

179854

SCREW,Hex, 7/16" - 14 x 5/8"

cap, hex-hd., 7/16-14NC x 5/8"

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

51

361519R11

COLUMN, hydra-touch control valve, w/plug, 172574 and sleeve

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

52

172574

PLUG,Exp, 1 1/2"

expansion, 1-1/2"

1шт.

53

361452R1

GASKET

hydra-touch valve column

1шт.

54

366215R1

PLATE, name, power steering (for Farmall 400 Series tractors, w/power steering)

1шт.

55

366557R1

WHEEL

steering (Farmall 450 Series tractors)

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering shaft rear (optional with 368576R1)

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering shaft rear (optional with 367232R1)

1шт.

56

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

RING, seal, steering wheel cap

1шт.

57

366558R1

PRODUCT GRAPHIC

CAP, monogramed, steering wheel (for Farmall 450 Series tractors, w/o power steering)

1шт.

57

366566R1

CAP

monogramed, steering wheel (for Farmall 450 Series tractors, w/power steering)

1шт.

58

368742R1

RING, steering shaft rear bearing expansion (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

59

368740R11

BEARING, steering shaft, rear w/bushing (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

60

368743R1

WASHER, steering shaft rear support tube (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

61

366556R11

SHAFT, steering, w/yoke, rear (for diesel gasoline, distillate or kerosene burning engine tractors) Farmall 450 Series

1шт.

61

366660R11

SHAFT, steering, w/yoke, rear (for liquefied petroleum gas burning engine tractors) Farmall 450 Series

1шт.

62

366560R91

SHAFT, steering, 366556R11, w/350254R91 spider and 350361R2 yoke (for gasoline, distillate or kerosene burning engine tractors) Farmall 450 Series, 501 to 13135, (for diesel engine tractors) Farmall 450 Series, Serial Range: 501-12436

1шт.

62

366661R91

SHAFT, steering, 366660R11, w/350254R91 spider and 350361R2 yoke (for liquefied petroleum gas burning engine tractors) Farmall 450 Series, Serial Range: 501-13135

1шт.

62

368728R91

SHAFT, steering, 366556R11, w/368730R91 spider and 350361R2 yoke (for gasoline, distillate or kerosene burning engine tractors) Farmall 450 Series, 13136 up (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

62

368950R91

SHAFT, steering, 366660R11, w/368730R91 spider and 350361R2 yoke (for liquefied petroleum gas burning engine tractors) Farmall 450 Series, 13136 up

1шт.

63

368730R91

SPIDER ASSY.

1шт.

BEARING and SPIDER, steering universal joint, assembly (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up, composed of (4) bushing 368734R1, (4) cap 368733R1, (4) ring M32991, (1) spider 368732R1, (4) spring 368735R1

1шт.

64

M32991

SNAP RING, universal joint bearing cap (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

4шт.

65

368733R1

CAP, universal joint bearing (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

4шт.

66

368735R1

SPRING, steering shaft universal shaft (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

4шт.

67

368734R1

BUSHING, steering shaft universal joint (phenolic) (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

4шт.

68

368732R1

SPIDER, universal joint (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

4шт.

69

368748R11

SHAFT, steering worm, w/coupling (for tractors w/o power steering) (for gasoline, distillate or kerosene burning engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

69

368749R11

SHAFT, steering worm, w/coupling (for tractors w/o power steering) (for liquefied petroleum gas burning engine tractors) Farmall 450 Series, 13136 up

1шт.

69

368947R11

1шт.

SHAFT, steering worm, w/coupling (for tractors with power steering) (refer to "Hydraulic Power Steering" unit for illustration) (for gasoline, distillate or kerosene burning engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

69

368948R11

SHAFT, steering worm, w/coupling (for tractors with power steering) (refer to "Hydraulic Power Steering" unit for illustration) (for liquefied petroleum gas burning engine tractors) Farmall 450 Series, 13136 up

1шт.

70

368746R1

BUMPER, steering shaft (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

71

368747R1

WORM, steering (for carbureted engine tractors) Farmall 450 Series, 13136 up, (for diesel engine tractors) Farmall 450 Series, 12437 up

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

365798R1

FLUID

ADDITIVE, steering gear lubricant (gallon can)

1шт.

368098R91

PACKAGE

overhaul, upper bolster, consists of (1) bearing 354675R91, (1) bushing 45172DR, (1) bushing 49661DAR, (1) gasket 48952DA, (1) oil seal 364470R91, (1) retainer 49664D, (1) washer 49663D

1шт.

359039R92

PARTS ACCESSORY, culitvator stay-rod anchor bracket (for all tractors except hi-clear models) composed of (1) bracket 359162R2, (2) screw 271559, (2) washer 103325

1шт.
