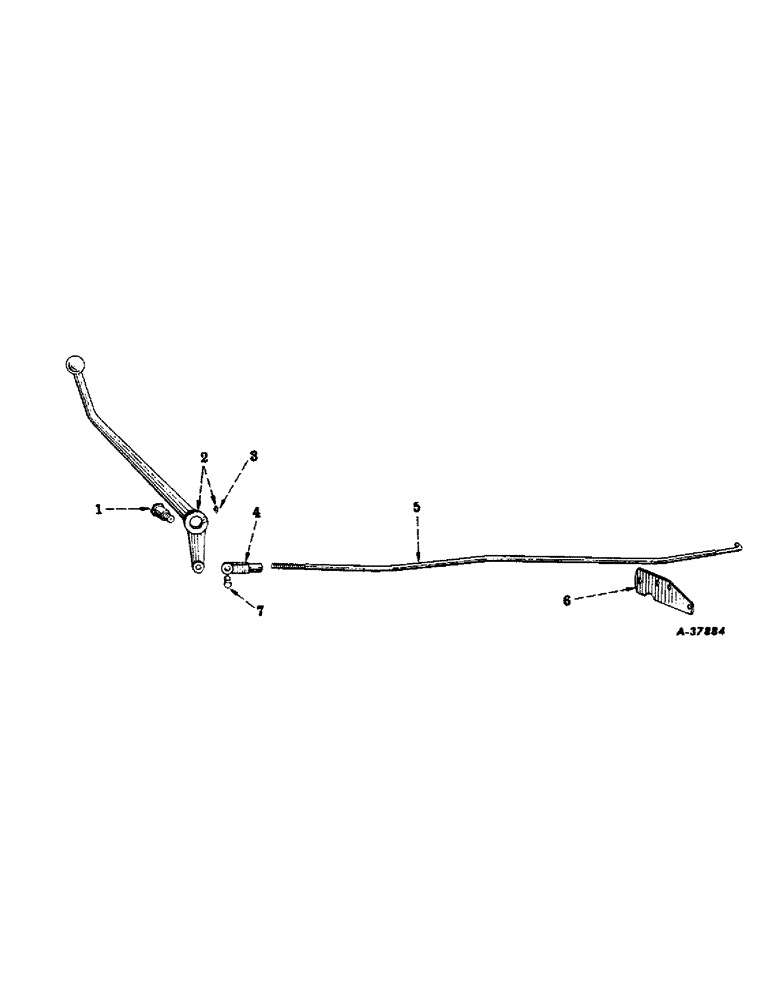

Запчасти Case IH 450-SERIES (233) - CHASSIS, STARTING TRIP MECHANISM, FOR DIESEL ENGINE TRACTORS (12) - CHASSIS

1

362080R1

PIVOT, starting lever

1шт.

2

363355R11

LEVER, starting, w/fitting, 443571

1шт.

3

443571

FITTING

lubrication, 67-1/2deg. elbow, 3/16" (optional with 12309R91)

1шт.

3

12309R91

FITTING, lubrication, 67-1/2deg. elbow, 3/16" (optional with 443571)

1шт.

4

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, adjustable rod end, 1/2-20NF

1шт.

5

362329R1

ROD, starting control

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20NF

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

6

362081R2

SUPPORT, starting control and radiator shutter rod

1шт.

103026

NUT,3/8"-24, G5

2шт.

181365

BOLT,Hex, 3/8" - 24 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-24 x 1"

1шт.

181377

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

114787

AXLE PIN

PIN, rod end, 1/2 x 1-27/64"

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.
