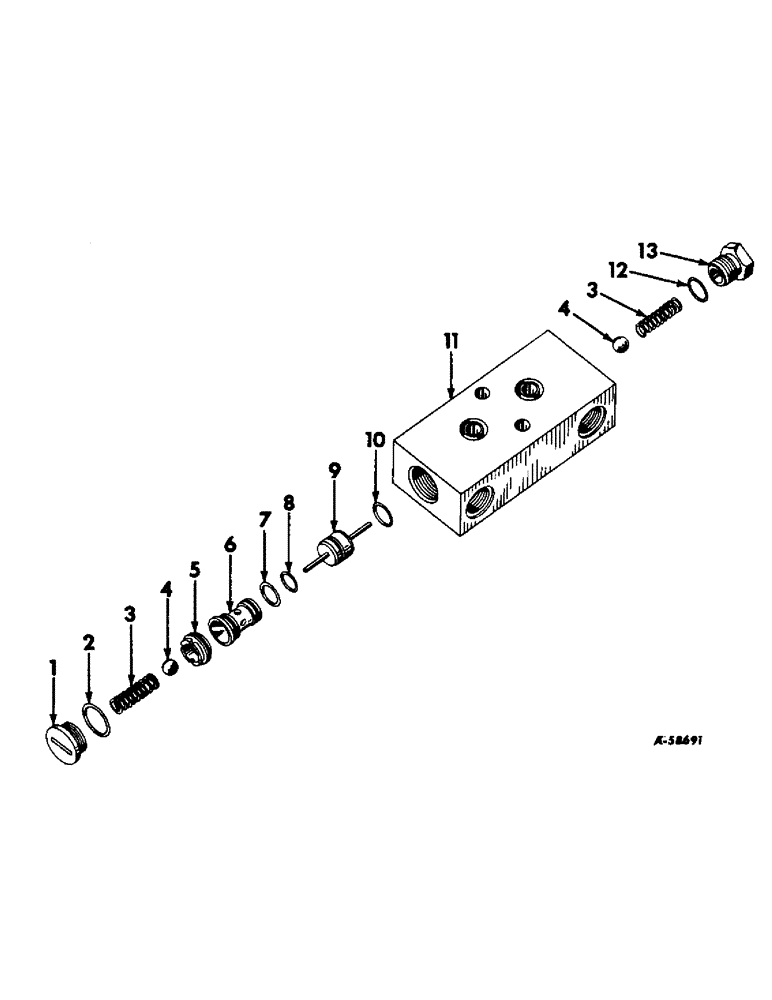

Запчасти Case IH 404 (115) - HYDRAULIC SYSTEM, CHECK VALVE, DOUBLE ACTING, FOR TRACTORS EQUIPPED W/REMOTE CONTROL (07) - HYDRAULIC SYSTEM

374083R92

VALVE

ASSEMBLY, check

1шт.

1

374008R1

PLUG, check valve

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

check valve plug (59/64 x 1-1/16 x 7/64")

1шт.

3

372649R1

SPRING

check valve

2шт.

4

17016R1

BALL,1/2" Dia

2шт.

5

374172R1

NUT

check valve ball retainer

1шт.

6

374087R21

RETAINER

ASSEMBLY, check valve ball

1шт.

7

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

8

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

ball retainer (11/16 x 13/16 x 1/16") (small)

1шт.

9

374085R11

PISTON

ASSEMBLY, check valve actuator

1шт.

10

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

piston (5/8 x 13/16 x 3/32")

1шт.

11

NSS

NOT SOLD SEPARAT

BLOCK ASSY., check valve (not serviced separately, order check valve, 374083R92)

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

check valve plug (3/4 x 15/16 x 3/32")

1шт.

13

374089R1

PLUG

check valve

1шт.
