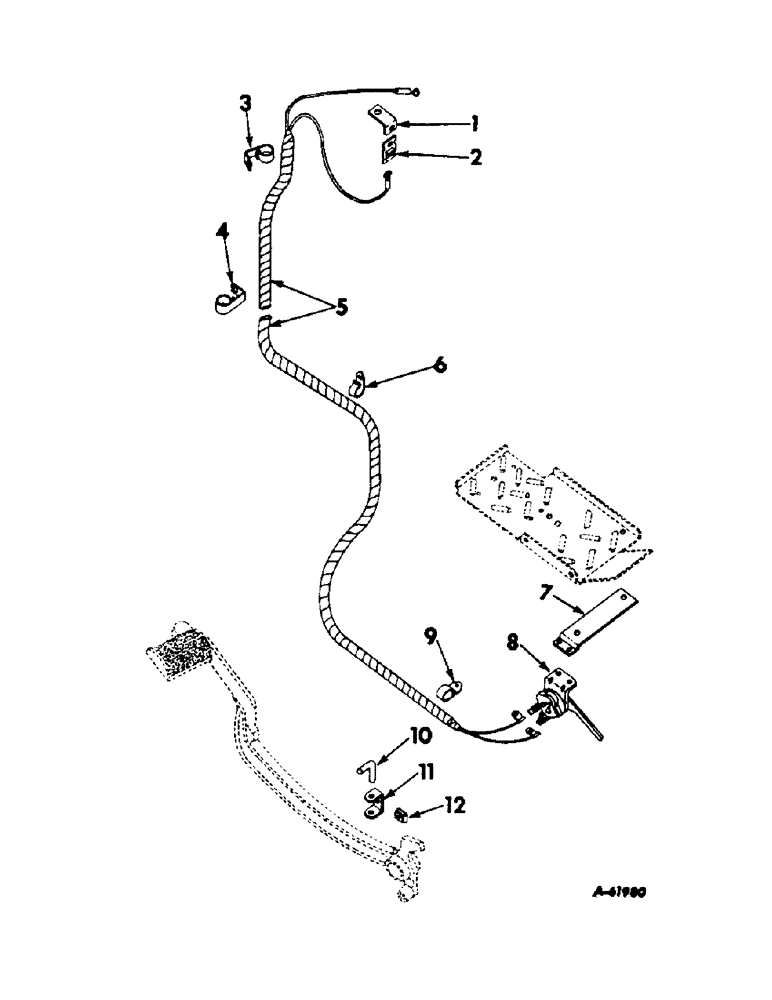

Запчасти Case IH 404 (054) - ELECTRICAL SYSTEM, SAFETY STARTING SWITCH (06) - ELECTRICAL SYSTEMS

1

42916D

BRACKET, junction block

1шт.

102635

NUT,3/8"-16, G5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

42915D

BLOCK

junction

1шт.

110633

NUT,#10-24

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

no. 10-24 x 1/2" slt-rd-hd. mach.

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

359526R1

CLIP, cable harness (on voltage regulator upper mounting bolt)

1шт.

4

359526R1

CLIP, cable harness (on governor control balance spring anchor rear mounting bolt)

1шт.

5

375478R91

HARNESS ASSEMBLY, safety staring switch

1шт.

6

355097R1

CLIP, cable harness (on rear mounting bolt of battery platform)

1шт.

7

375476R1

SUPPORT, safety starting switch

1шт.

8

375477R91

SWITCH

ASSEMBLY, safety starting

1шт.

125981

SCREW, no. 10-32NF x 5/16" hex-hd. mach.

2шт.

9

358431R1

CLIP, cable harness (on under side of platform, LH side-rear center square hole)

1шт.

14993R1

BOLT, 1/4-20 x 3/4" crg.

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

375475R1

ARM, safety starting switch control

1шт.

11

375473R1

BRACKET, safety starting switch control arm

1шт.

12

375474R1

NUT, safety starting switch control bracket

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.
