Запчасти Case IH 404 (047) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL SERIES (06) - ELECTRICAL SYSTEMS

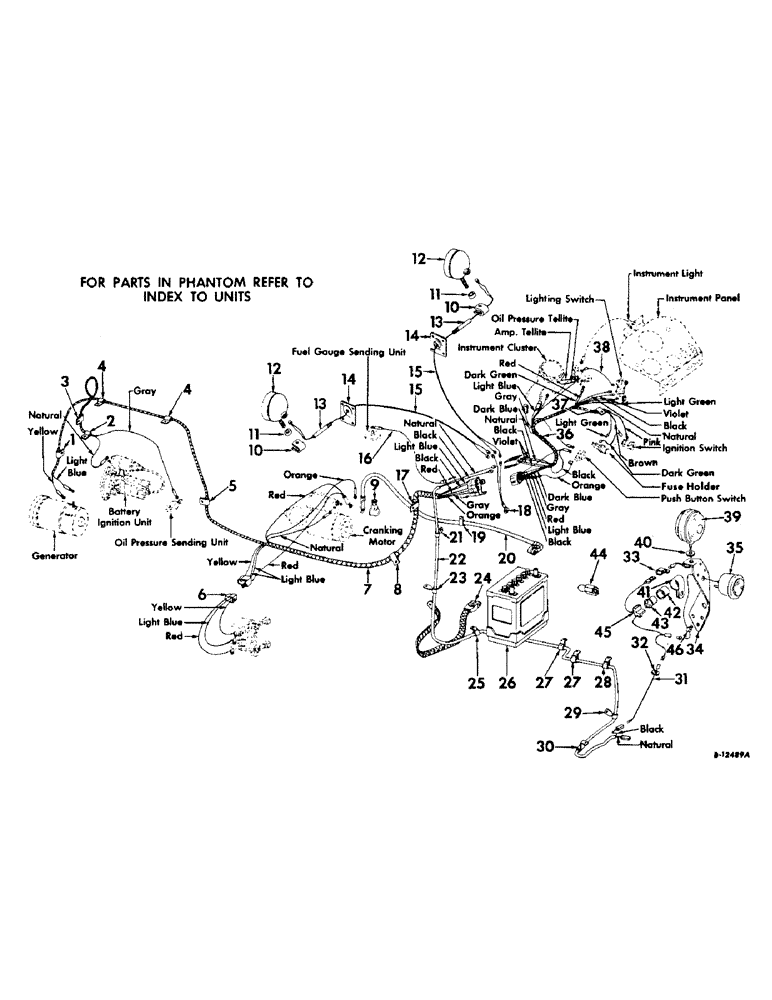

Схема запчастей Case IH 404 - (047) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL SERIES (06) - ELECTRICAL SYSTEMS
33
19
25
35
45
40
4
1
22
17
46
44
32
26
27
11
29
20
14
6
11
7
39
8
15
38
12
13
27
30
10
3
28
34
15
23
31
4
13
12
5
16
24
2
18
21
14
10
37
36

Артикул

Название

Примечание

Количество

1

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on water outlet housing upper LH mounting bolt)

1шт.

2

362121R1

CLIP

cable harness (on governor breather pipe flange RH mounting bolt)

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on water outlet housing upper RH mounting bolt)

1шт.

4

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on valve cover housing mounting studs)

2шт.

5

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness (on cylinder head RH rear boss)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

376868R91

CABLE

ASSEMBLY, voltage regulator

1шт.

7

393547R91

HARNESS ASSEMBLY, cable (Replaces 376863R91)

1шт.

8

358986R1

CABLE CLIP

CLIP, cable harness (on lower rear steering shaft support mount upper hole)

1шт.

9

364910R1

BOOT

COVER, solenoid terminal

1шт.

10

350920R1

CLAMP

headlight

2шт.

11

365503R1

SPACER

headlight

2шт.

12

376849R91

HEADLIGHT

ASSEMBLY, sealed beam (only serviceable item is sealed beam UNIT, 373662R91)

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

378068R1

PIPE, headlight support

2шт.

14

370559R11

BRACKET ASSEMBLY, headlight support

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, support bracket

8шт.

15

376870R91

CABLE ASSEMBLY, headlight

2шт.

16

378407R91

CABLE ASSEMBLY, fuel gauge sending unit to multiple connector (tractors equipped with Fuel Gauge)

1шт.

17

362123R1

CLIP

cable harness (on rear fuel tank and cowl support upper LH mounting bolt)

1шт.

18

374490R91

CABLE

ASSEMBLY, headlight to ground junction

1шт.

19

362121R1

CLIP

battery cable (on lower rear steering shaft support RH tapped hole)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

20

376867R91

CABLE

w/COVER and BOLT ASSEMBLY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSEMBLY, terminal

1шт.

21

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable (on rear fuel tank and cowl support, upper LH mounting bolt)

1шт.

22

376871R91

CABLE ASSEMBLY, rear light

1шт.

23

370820R1

CLIP

cable (on lower rear steering shaft support, LH mounting bolt)

1шт.

24

378326R91

CABLE

STRAP w/BOLT ASSEMBLY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSEMBLY terminal

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 ga.

1шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable (on battery housing support LH rear mounting bolt)

1шт.

26

395595R1

BATTERY, Prestolite 22NF-A9Z (12 volt)

1шт.

27

362123R1

CLIP

cable (on rear frame front cover LH, mounting bolts)

2шт.

28

362123R1

CLIP

cable (on hydraulic housing LH mounting bolt)

1шт.

29

370820R1

CLIP

cable (on LH brake housing)

1шт.

61252H

WASHER

15/32 x 3/4" x 11 ga.

1шт.

30

358986R1

CABLE CLIP

CLIP, cable (on LH fender U-bolt)

1шт.

31

376857R91

CABLE ASSEMBLY, tail light

1шт.

32

363846R1

GROMMET

tail light cable

1шт.

33

366460R1

CABLE CLIP

CLIP, cable (on tail light bracket rear mounting bolt)

1шт.

34

395517R1

BRACKET, tail light

1шт.

109085

NUT, 3/8"-16

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

35

376850R91

LIGHT

ASSEMBLY, tail (only serviceable item is no. 67 BULB, 142450)

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

381661R91

HARNESS

ASSEMBLY, instrument panel (Replaces 376865R91)

1шт.

37

370383R1

CLIP

cable harness (on governor control friction plate upper mounting bolt)

1шт.

38

376869R91

CABLE

ASSEMBLY, lighting switch to junction block

1шт.

365524R1

CLAMP

CLIP, battery cable (on RH front hydraulic manifold junction block) WASHER, 13/32 x 13/16" x 16 ga.

1шт.

39

394129R91

LIGHT

ASSY, flashing warning (Tractors w/serial no. 2754 and above)

1шт.

120371

NUT,1/2"-20, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

1шт.

40

394262R1

WASHER

GASKET, flashing warning light (Tractors w/serial no. 2754 and above)

1шт.

41

394133R1

FASTENER

CLAMP, flasher mounting (Tractors w/serial no. 2754 and above)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd. cap

1шт.

109084

NUT,1/4"-20, G5

1шт.

446179

WASHER,#12

1/4 C-Z plain

1шт.

42

394134R1

SEAL

HOSE, flasher mounting absorber (Tractors w/serial no. 2754 and above)

1шт.

43

394132R91

FLASHER UNIT

FLASHER, warning light (Tractors w/serial no. 2754 and above)

1шт.

44

394473R91

CABLE ASSY, flashing warning light jumper (Tractors w/serial no. 2754 and above)

1шт.

45

394382R91

CABLE ASSY, flasher to light (Tractors w/serial no. 2754 and above)

1шт.

46

358986R1

CABLE CLIP

CLIP, flashing warning light cable (Tractors w/serial no. 2754 and above) PARTS ACCESSORY, flashing warning light (Tractors w/serial no. 2753 and below) (Order ref. no. 34, 39, 40, 41, 42, 43, 44 and 45)

1шт.

Выбрано товаров: 68
