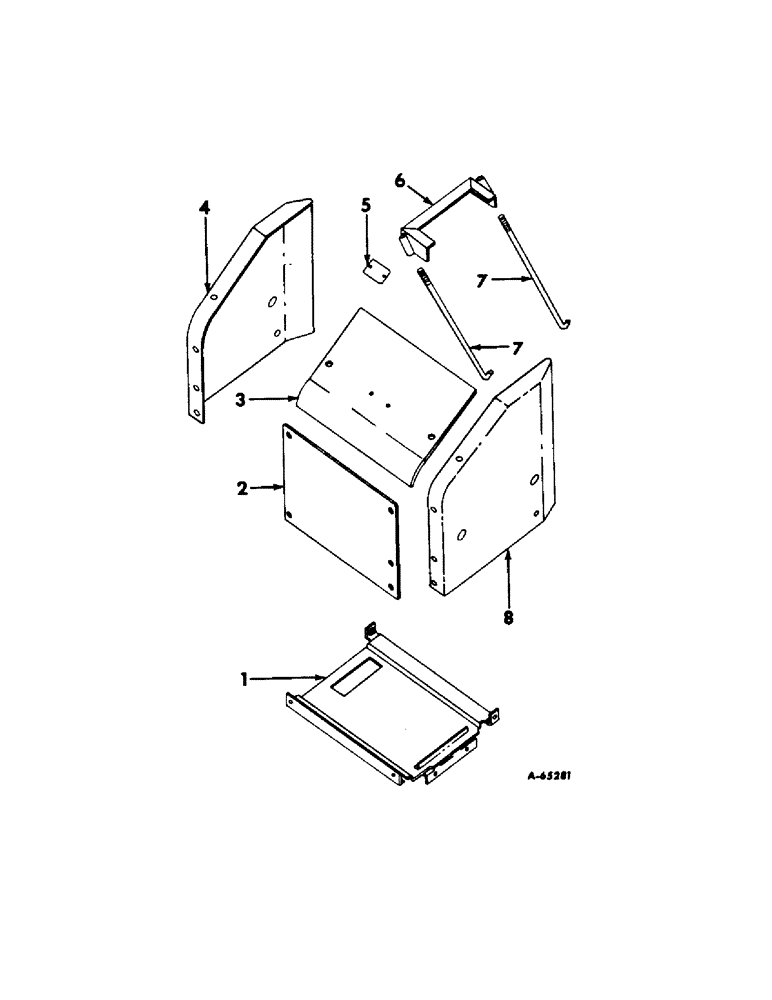

Запчасти Case IH 404 (046) - ELECTRICAL SYSTEM, BATTERY HOLDER (06) - ELECTRICAL SYSTEMS

1

377674R11

SUPPORT ASSEMBLY, battery housing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

2

377678R11

PANEL ASSEMBLY, battery housing rear

1шт.

3

377682R1

COVER, battery housing

1шт.

377681R1

5/16-18 x 3/8" sltd-washer-hd. cap

1шт.

4

377679R11

PANEL ASSEMBLY, battery housing LH side

1шт.

377681R1

SCREW, 5/16 x 3/8" sltd-washer-hd. cap

3шт.

5

371475R1

PLATE, gear shift

1шт.

5

378574R1

PLATE, gear shift (tractors with Fast Reverser)

1шт.

9402597

RIVET, 1/16 x 3/16" mushroom hd. al

2шт.

6

377676R11

CLAMP ASSEMBLY, battery hold-down

1шт.

7

377677R1

BOLT,1/4" - 20 x 9"

ROD, battery hold down

2шт.

109084

NUT,1/4"-20, G5

4шт.

95-11028

WASHER,1/4"

9/16 x 5/8" x .065 ga.

2шт.

8

377680R11

PANEL ASSEMBLY, battery housing RH side

1шт.

377681R1

SCREW, 5/16-18 x 3/8" sltd-washer-hd. cap

3шт.
