Запчасти Case IH 404 (046[A]) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL SYSTEMS

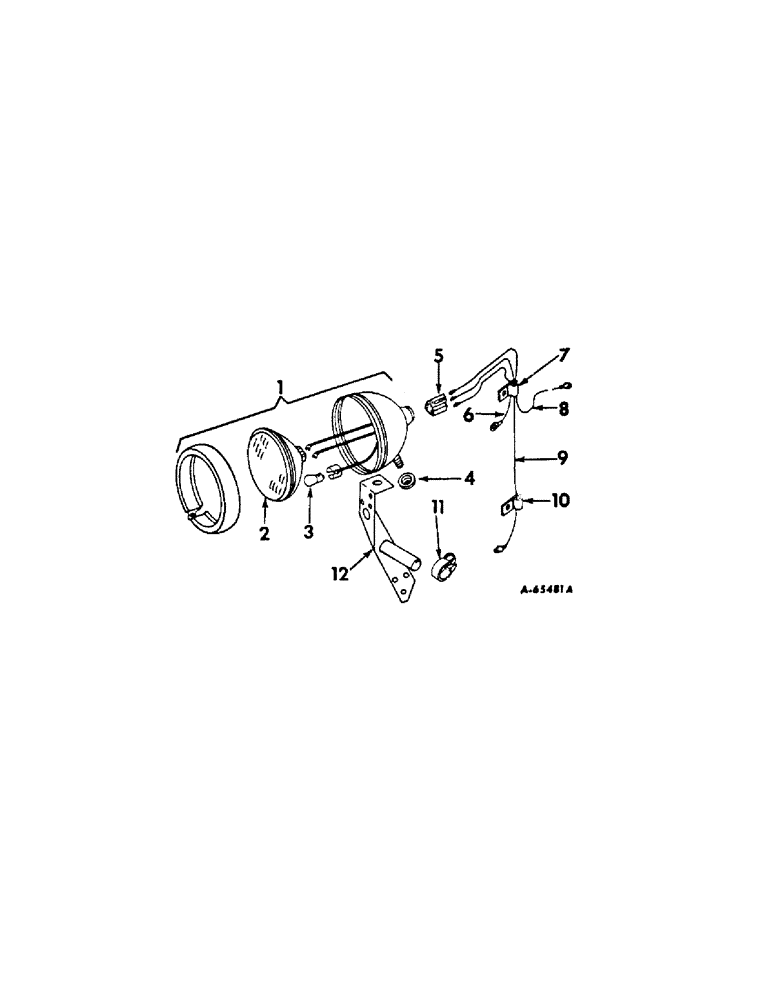

Схема запчастей Case IH 404 - (046[A]) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL SYSTEMS
6
10
7
5
4
8
11
9
12
3
1
2

Артикул

Название

Примечание

Количество

377425R91

PARTS ACCESSORY, combination rear light and tail light (for tractors equipped with Electric Lighting)

1шт.

1

377102R91

NO LONGER SERVICED

REAR LIGHT and TAIL LIGHT ASSEMBLY, combination

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

2

371461R91

LENS

UNIT, sealed beam

1шт.

3

455490

BULB,C-6, #1003, 12V, .94W

No. 1003, 12 volt

1шт.

4

365503R1

SPACER

rear light

1шт.

5

377105R1

CONNECTOR, ELEC

CONNECTOR, rear light

1шт.

6

377120R92

CABLE ASSEMBLY, Serial Range: light-ground

1шт.

7

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear light cable

1шт.

8

377118R91

CABLE ASSEMBLY, rear light junction

1шт.

9

377422R91

CABLE ASSEMBLY, tail light junction (Farmall Series)

1шт.

9

377115R91

CABLE ASSEMBLY, rear light to breakaway connector socket (International Series)

1шт.

10

362121R1

CLIP

breakaway connector socket cable (International Series)

1шт.

109084

NUT,1/4"-20, G5

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

350920R1

CLAMP

rear light

1шт.

12

395518R1

BRACKET ASSEMBLY, rear light

1шт.

102635

NUT,3/8"-16, G5

3шт.

NLS

NO LONGER SERVICED

3/8-16 x 3/4" cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

Выбрано товаров: 22
