Запчасти Case IH 404 (042) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

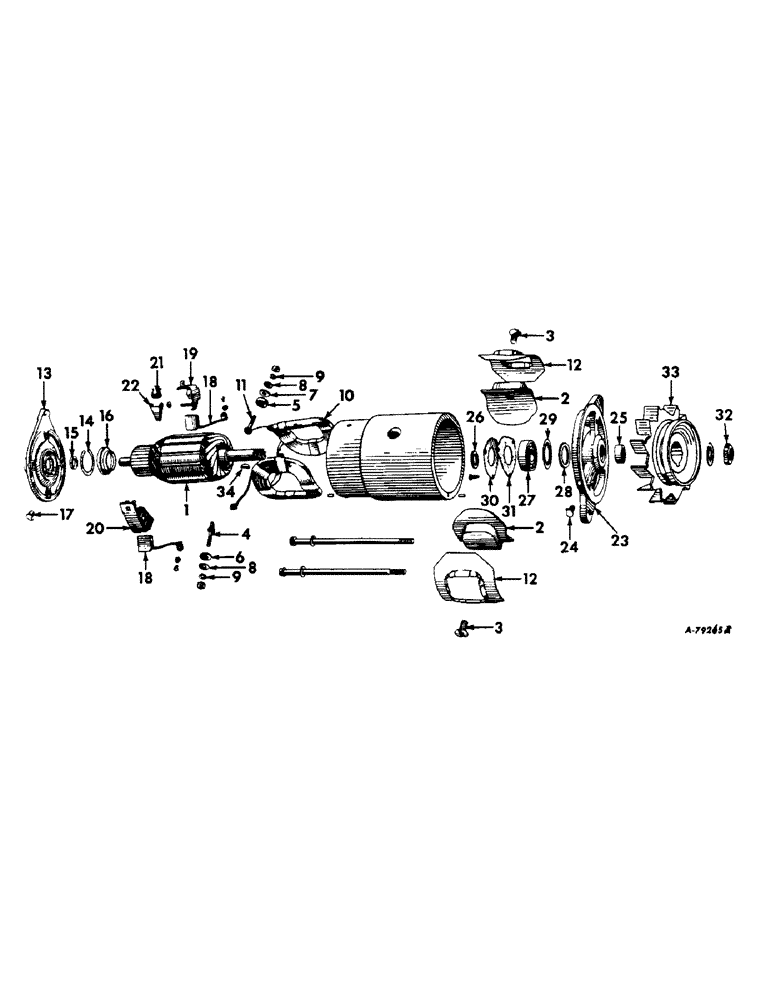

Схема запчастей Case IH 404 - (042) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS
14
10
18
11
20
30
6
32
9
22
31
2
18
28
24
13
3
27
5
8
21
3
33
15
26
34
16
19
9
4
12
25
23
8
12
7
17
29
2

Артикул

Название

Примечание

Количество

1100409

SPARE PART GENERATOR ASSY, 376842R91 (12 Volt)

1шт.

103814A1R

REMAN-GENERATOR

Generator

1шт.

103814A1C

CORE-GENERATOR

Return Number

1шт.

1

1928952

ARMATURE

ARMATURE

1шт.

2

1914618

SHOE, pole

2шт.

3

1843648

SCREW, pole shoe

2шт.

4

1921369

STUD

STUD, terminal armature

1шт.

5

1885090

BUSHING

BUSHING, field terminal insulating

1шт.

6

1921362

BUSHING

BUSHING, armature terminal insulating

1шт.

7

1858753

WASHER

WASHER, terminal stud insulating

1шт.

8

1881409

WASHER

WASHER, terminal stud

2шт.

9

1904661

LOCK WASHER

WASHER, field terminal stud lock

2шт.

10

1923625

COIL ASSY.

COIL, assembly field

1шт.

11

1921860

STUD

STUD, terminal field

1шт.

12

1914491

INSULATOR, field coil

2шт.

13

1951512

HOUSING

FRAME ASSEMBLY, commutator end, used with generator, 1100409 (Composed of (1) dowel 809062, (1) frame (NSS), (1) oiler 1880641, (1) oil seal 1945697, (1) retainer 1947337, (1) wick 1947350)

1шт.

14

1947350

WICK

WICK, commutator end oil

1шт.

15

1945697

GUARD ASSY.

SEAL, commutator end oil

1шт.

16

1953202

RETAINER, commutator end oil seal

1шт.

17

1880635

OILER

OILER ASSEMBLY, commutator end

1шт.

18

1932506

BRUSH, COMMUTATOR

BRUSH BRUSH

2шт.

19

1922288

HOLDER

PACKAGE, ground brush holder

1шт.

121743

CHAIN,#12 - 24

no. 12 cd-pltd.

1шт.

132979

SPARE PART SCREW, no. 12 x 5/8" cd-pltd. slt-rd-hd. mach.

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd. lock

1шт.

20

1922289

HOLDER

PACKAGE, insulated brush holder

1шт.

225-14112

NUT,#12-24

no. 12 cd-pltd.

1шт.

132979

SPARE PART SCREW, no. 12 x 5/8" cd-pltd. slt-rd-hd. mach.

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd. lock

1шт.

21

1916324

VALVE SPRING

SPRING, brush

2шт.

22

1878183

ARM

ARM, brush

2шт.

23

1871693

SPARE PART FRAME w/OILER, PIN AND WICK, DRIVE END

1шт.

24

1880641

OILER

OILER ASSEMBLY, drive end

1шт.

25

1858603

BUSHING

COLLAR, outside drive end space

1шт.

26

809945

BUSHING

WASHER, inside drive end space

1шт.

27

907503

BEARING

BALL BEARING, drive end

1шт.

28

809961

FELT

WASHER, drive end felt

1шт.

29

819104

WASHER

PLATE, drive end felt washer retainer

1шт.

30

1911263

LARGE PLATE

PLATE, LARGE PLATE, drive end ball bearing retainer

1шт.

31

1912008

FELT

GASKET, drive end ball bearing retainer plate

1шт.

32

1911324

NUT

NUT, drive end shaft

1шт.

33

FAN AND PULLEY, generator (Order FAN, 1944437 and PULLEY, 1949358) (used with GENERATOR, 1100409)

1шт.

34

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

Выбрано товаров: 43
