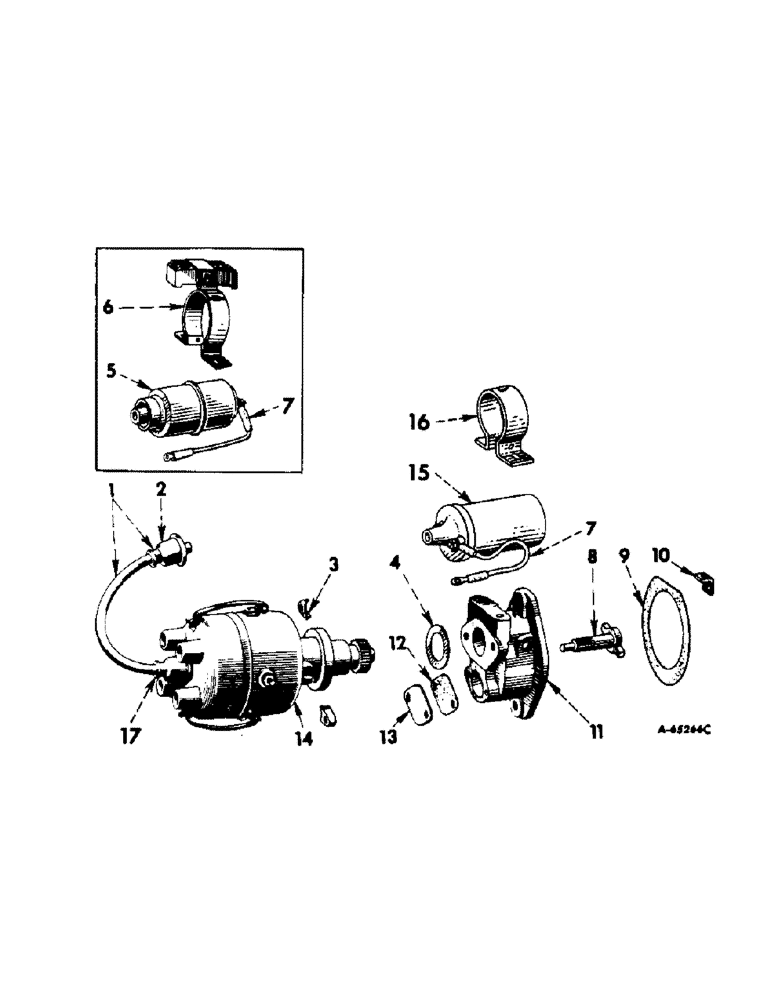

Запчасти Case IH 404 (039) - ELECTRICAL SYSTEM, BATTERY IGNITION UNIT (06) - ELECTRICAL SYSTEMS

1

356686R92

CABLE

w/TWO NIPPLES, coil to distributor secondary (for use with IH COIL, 368839R91)

1шт.

1

373167R91

CABLE

w/TWO NIPPLES, coil to distributor secondary (for use with COIL, 395330R91)

1шт.

2

251553R1

BOOT

NIPPLES (for use with COIL, 395330R91)

1шт.

2

372875R1

NIPPLE, LUBE

NIPPLE (for use with COIL 395330R91)

1шт.

3

353937R1

CLIP

CLAMP, distributor

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8" cd-pltd. cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

distributor

1шт.

5

368839R91

COIL

ignition (12-volt) (C-135 engines w/Serial No. 114622 and below)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

368840R91

RESISTOR

CLAMP ASSEMBLY, coil (C-135 engines w/Serial no. 114622 and below)

1шт.

120611

NUT,#10 - 32

no. 10-32 NF cd-pltd. sq.

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

no. 10-32 NF x 1-1/4" cd-pltd. slt-rd-hd. mach.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16" x 16 ga. cd-pltd.

2шт.

7

357929R92

ELECTRIC CABLE

CABLE, coil to distributor primary

1шт.

8

353934R11

SHAFT

GEAR and SHAFT ASSEMBLY, distributor drive

1шт.

9

46168DB

GASKET

distributor drive housing

1шт.

10

46868D

CLIP

distributor mounting

1шт.

11

363763R11

HOUSING ASSEMBLY, distributor drive

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8" cap (lower)

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, 3/8-16 x 1-3/8" cap (upper)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

363765R1

GASKET

distributor drive housing hole cover

1шт.

13

363764R1

COVER

distributor drive housing hole

1шт.

435429

SCREW, no. 10-3 2NF x 9/16" cd-pltd. slt-rd-hd. mach. Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

380622R91

DISTRIBUTOR

ASSEMBLY (for components see list of parts under details of "Battery Ignition Distributor")

1шт.

15

396329R91

CLAMP

COIL ASSY, ignition, 12 volt (C-135 engines w/Serial No. 114623 and above)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

396328R1

CLAMP

ignition coil (C-135 engines w/Serial no. 114623 and above)

1шт.

177056

HUB

SCREW, 10-32 x 1-1/2 C-Z slt-rd-hd. tap

1шт.

131934

SCREW, 5/16-18 x 1/2 C-Z slt-rd-hd. mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga. C-Z

2шт.

17

251553R1

BOOT

NIPPLE, distributor cap terminal

1шт.

396546R91

PACKAGE

ignition coil service (C-135 engines w/serial no. 114622 and below) (Consists of (1) coil 395330R91, (1) clamp 396328R1, (1) nipple 372875R1, (1) nut 120614, (1) screw 177056, (2) washer 120217)

1шт.
