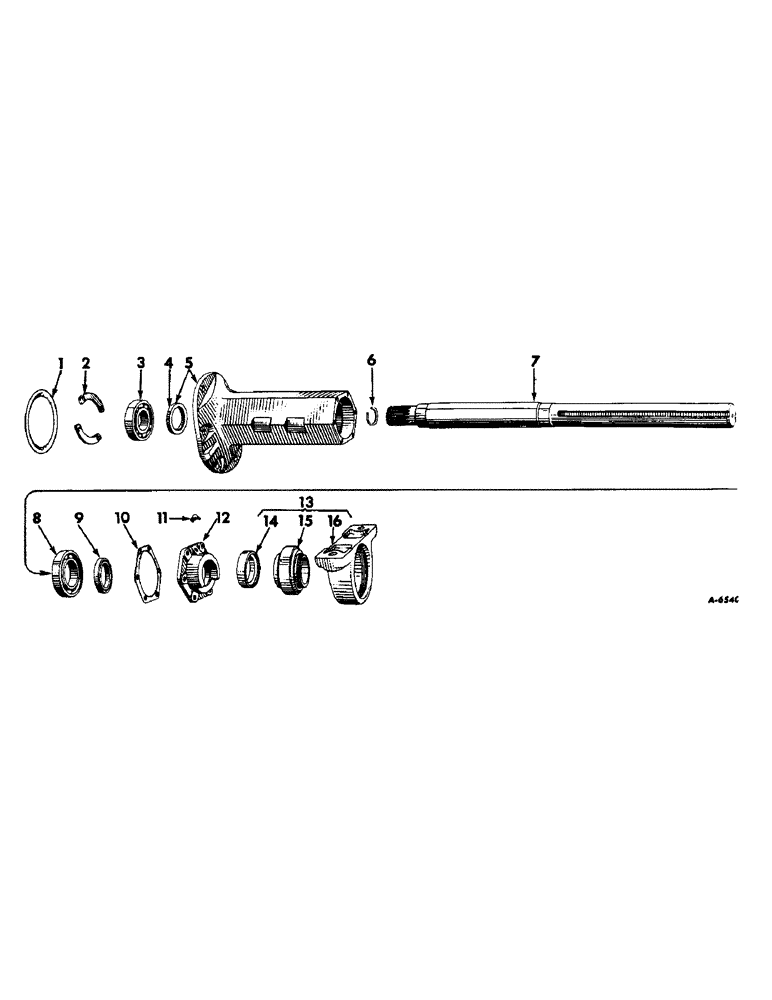

Запчасти Case IH 404 (091) - REAR AXLE, REAR AXLE, FARMALL SERIES (05) - REAR AXLE

1

380595R1

O-RING

rear axle carrier (5-5/8 x 5-7/8 x 1/8")

2шт.

2

351114R2

RETAINER, rear axle inner bearing

4шт.

192278

BOLT, 3/8 x 3/4" type A lock

8шт.

3

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

rear axle inner

2шт.

4

380768R91

OIL SEAL

OIL SEAL, rear axle carrier inner

2шт.

5

375696R2

CARRIER, rear axle LH

1шт.

5

375697R2

CARRIER, rear axle RH

1шт.

5

351496R5

CARRIER, rear axle LH (tractors with 100" wide tread rear axle)

1шт.

5

351497R5

CARRIER, rear axle RH (tractors with 100" wide tread rear axle)

1шт.

425-1110

NUT,5/8"-18, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

358236R1

RING

SNAP RING, rear axle

2шт.

7

375737R1

AXLE, rear (80" tread)

2шт.

7

369393R2

AXLE, rear (88" tread)

2шт.

7

370658R2

AXLE, rear (100" tread)

2шт.

8

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

rear axle outer

2шт.

9

380770R91

OIL SEAL

rear axle

2шт.

10

351117R1

GASKET

rear axle carrier cap

2шт.

11

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8" x 90 deg. lubrication

2шт.

12

351116R1

CYLINDER END CAP

CAP, rear axle

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

13

375672R91

PILLOW ASSEMBLY, front frame axle support

2шт.

14

657382R11

COLLAR w/SET SCREW ASSEMBLY, bearing

2шт.

15

657379R92

BALL BEARING, front frame axle support

2шт.

16

657380R1

HOUSING, pillow block

2шт.
