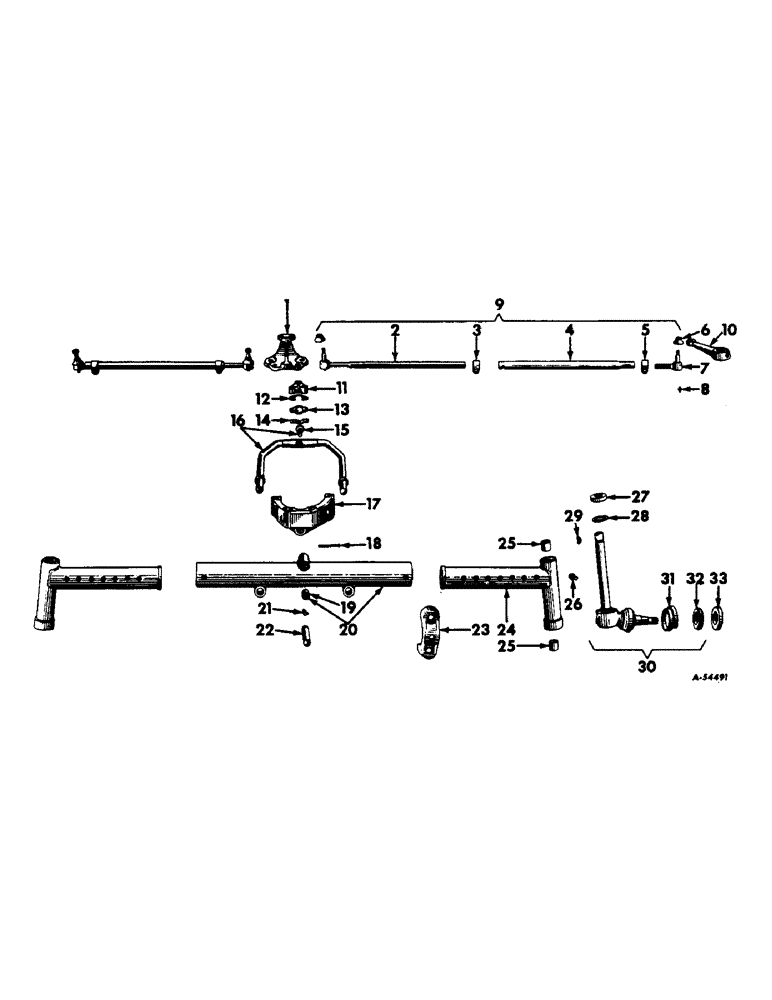

Запчасти Case IH 404 (086) - FRONT AXLE, ADJUSTABLE WIDE TREAD FRONT AXLE, FARMALL 404 (04) - FRONT AXLE

1

371018R1

ARM, steering gear

1шт.

451018

NUT

1/2" NF type LL lock

2шт.

102639

NUT,5/8"-11, G5

2шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2" cap

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16" x .095

2шт.

2

371021R11

ROD

TIE ROD w/COVER, 358209R1, nut, 102647 and pin, 103385 assembly

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

3

43747D

CLAMP

tie rod

2шт.

425-107

NUT,7/16"-14, G5

7/16"

2шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4" cap

2шт.

4

371020R1

TUBE,0.766" ID, 1.005" OD, 16.11" Length

tie rod (2 for Unit A)

1шт.

4

371023R1

TUBE,0.766" ID, 1.005" OD, 20.11" Length

tie rod (2 for Unit B)

1шт.

5

356543R1

CLAMP

tie rod

2шт.

102635

NUT,3/8"-16, G5

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

6

358209R1

COVER

tie rod end dust

4шт.

7

356540R91

END

w/COVER, 358209R1, nut, 102647 and pin, 103385 assembly, tie rod

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

4шт.

9

371019R91

TIE ROD ASSEMBLY, adjustable (2 for unit A)

1шт.

9

371022R91

ROD

TIE ROD ASSEMBLY, adjustable (2 for unit B)

1шт.

10

371014R1

ARM, steering knuckle, LH

1шт.

10

371015R1

ARM, steering knuckle, RH

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2 x 2-1/2" cap

2шт.

11

368997R1

SOCKET

stay rod ball

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4" cap

2шт.

12

368999R1

SHIM

stay rod ball socket cap

3шт.

13

368998R1

SOCKET

CAP, stay rod ball socket

1шт.

14

369000R1

PLATE, stay rod ball socket cap lock

1шт.

15

365453R1

BALL

stay rod socket

1шт.

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

NUT, 5/8 NF slt.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

16

371002R11

STAY ROD ASSEMBLY

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8 NF jam

2шт.

17

379743R1

BRACKET, front axle pivot

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4" hex-hd. cap, Course Threads

2шт.

18

O1436

CAP

PIN, front axle pivot bracket (3/8 x 2-9/16")

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

19

368608R1

BUSHING,31.76mm ID x 34.95mm OD x 53.34mm L

front axle pivot

1шт.

20

370998R21

AXLE ASSEMBLY, front (Unit A)

1шт.

20

371001R12

AXLE ASSEMBLY, front (Unit B)

1шт.

21

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 x 45 deg. lubrication

1шт.

22

370997R1

PIN

front axle pivot

1шт.

23

368615R1

CLAMP, front axle extension

4шт.

102639

NUT,5/8"-11, G5

6шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2" cap, Course Threads

4шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5" cap, Course Threads

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

6шт.

24

371008R11

EXTENSION w/TWO BUSHINGS, 368621R1 assembly, front axle (2 for unit A)

1шт.

24

371010R11

EXTENSION, front axle (2 for unit B)

1шт.

25

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

steering knuckle post

4шт.

26

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16" straight drive type lubrication

2шт.

27

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

steering knuckle thrust

2шт.

28

368627R1

WASHER

steering knuckle felt

2шт.

29

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

30

371429R91

KNUCKLE

ASSEMBLY, steering

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

31

43462D

DEFLECTOR

steering knuckle dust

2шт.

32

368629R91

SEAL

front wheel dust

2шт.

33

369936R1

WASHER

front wheel outer bearing retainer

2шт.
