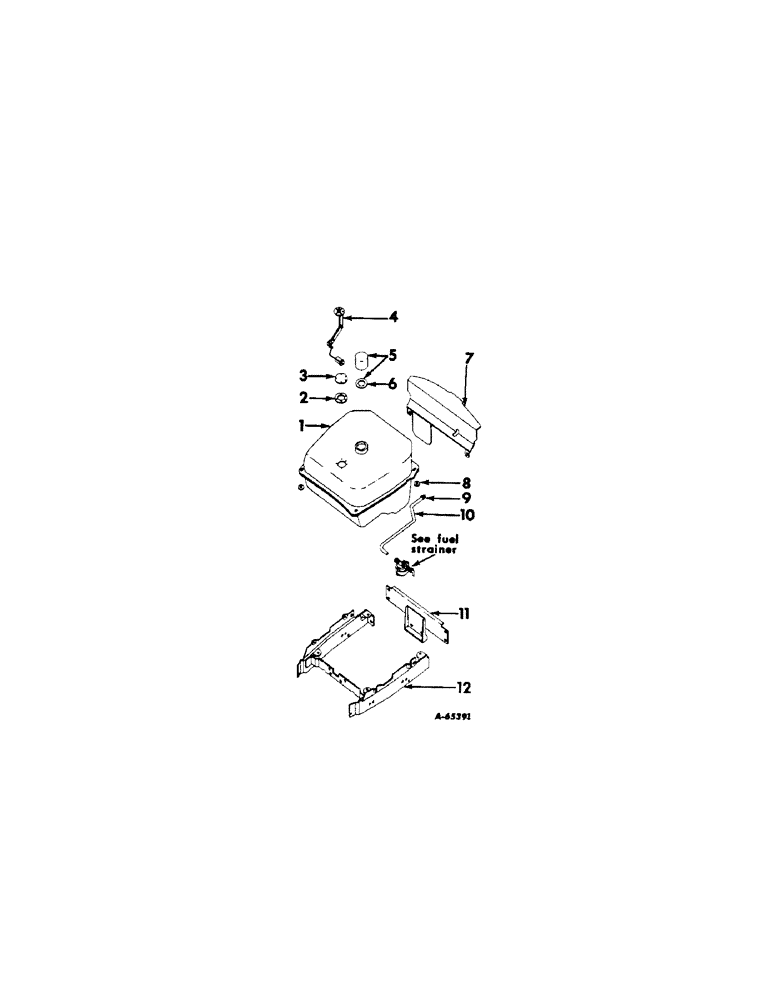

Запчасти Case IH 404 (023[A]) - FUEL SYSTEM, FUEL TANK, SUPPORTS AND PIPING, GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM

1

369149R91

TANK ASSEMBLY, fuel (Composed of (1) cap 361910R91, (1) cover 369155R1, (1) gasket 23977DB, (1) gasket 369154R1, (2) rivet 213516, (5) screw 372627R91, (1) tank 369150R91 (NSS))

1шт.

NLS

NO LONGER SERVICED

4шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065 ga) 3/8"

4шт.

2

369154R1

GASKET

sending unit or cover

1шт.

3

369155R1

COVER, sending unit opening (tractor without fuel gauge)

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit opening cover Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

4

376861R91

GAUGE

SENDING UNIT, electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

5

361910R91

PLUG

CAP ASSEMBLY, fuel tank filler

1шт.

213516

RIVET

1/8 x 1/8 oval hd. tub C-Z pl.

2шт.

6

23977DB

GASKET

fuel tank filler cap

1шт.

7

372424R91

SHIELD ASSEMBLY, heat

1шт.

8

60671D

INSULATOR BLOCK

PAD, fuel tank insulating

4шт.

9

19985R1

TUBE NUT,1/2"-20

NUT, fuel pipe coupling

2шт.

10

375859R11

PIPE w/two nuts, 19985R1 assembly, fuel

1шт.

11

379758R11

SUPPORT ASSEMBLY, fuel tank and cowl front

1шт.

102635

NUT,3/8"-16, G5

4шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

12

376875R91

SUPPORT w/six nuts, 363885R91 assembly, fuel tank and cowl rear

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16" floating cage

6шт.

102635

NUT,3/8"-16, G5

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.
